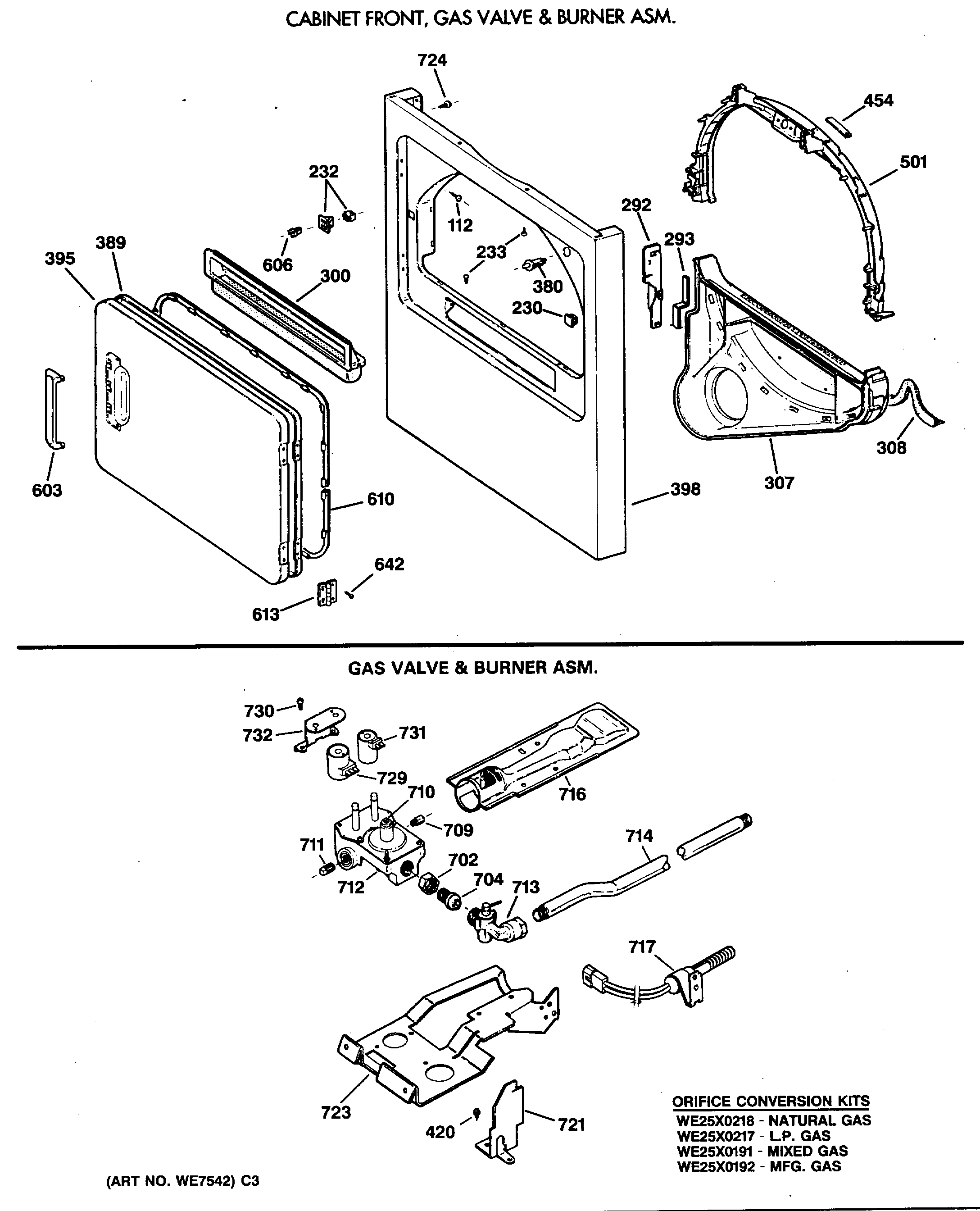

DBLR453GT0WW CABINET FRONT, GAS VALVE & BURNER ASM.

DBLR453GT0WW CABINET FRONT, GAS VALVE & BURNER ASM.

Written by

in

DBLR453GT0WW CABINET FRONT, GAS VALVE & BURNER ASM.

Products

PositionProduct
112WR01X21159 GE Button Plug
232WE1M1011 GE Washer Dryer Door Latch
233GEN WZ04X0236
292GEN WE13X0199
293GEN WE09X0110
300LINT SCREEN
307GEN WE14X0226
308GEN WE09X0108
380GEN WE04X0197
389GEN WE10X0325
395GEN WE10X0326
398GEN WE20X0775
420GEN WH02X0893
454WE3X87 GE Rear Drum Slide Bearing
501WE3X77 GE Dryer Drum Support Bearing
603WE01X20419 GE Washer Dryer White Door Handle
606WE1X1192 GE Dryer Door Strike
610GEN WE09X1090
613WE1M1033 GE Hinge
642GEN WE02X0378
702GEN WE02X0319
704GEN WE02X0396
709WE1X1148 GE Main Orifice
710WE1X1076 GE Leak Limiter
711GEN 1/8-27 NPT
712WE14X215 GE Gas Valve
713GEN WE01X1078
714PIPE LUG ASM
716WE14M104 GE Burner Assembly
717WE04X25996 GE Washer Igniter
721GEN WE13X0118
723GEN WE13X0195
724SCREW 10-16 X 1/2" HEX
729WE4X692 GE Gas Valve Solenoid
730WR01X10317 GE Refrigerator Screw 8-32 CA Hex Washer 1/2
731WE4X693 GE Main Coil
732GEN WE13X0169
