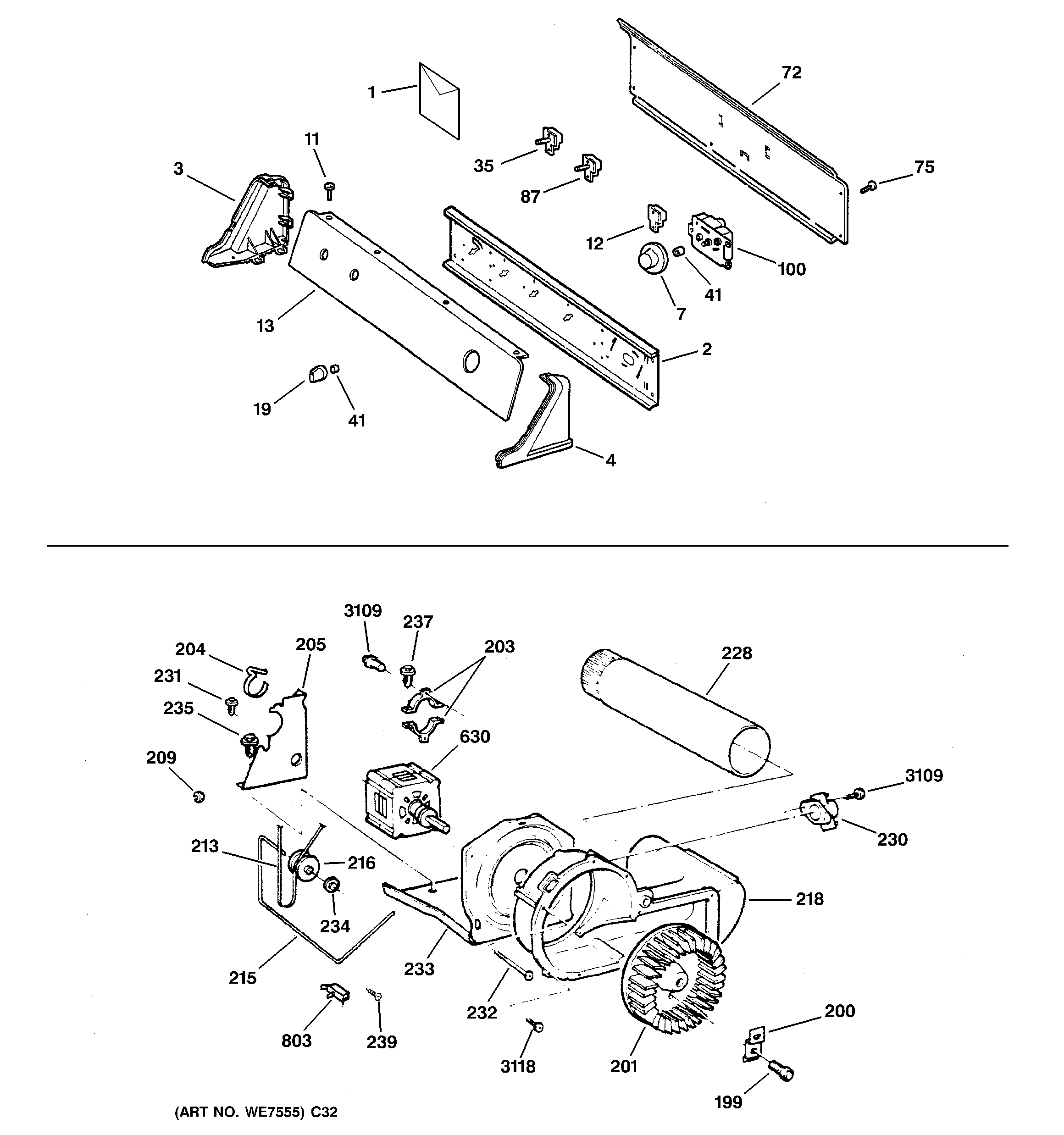

DBSR453GB0CC BACKSPLASH, BLOWER & MOTOR

Products

Position	Product
1	GEN 31-16043
1	GEN 49-90099
1	GEN 31-15476
2	GEN WE19M1166
3	END CAP LH BISQUE
4	END CAP RH BISQUE
7	KNOB ASM DRYER
12	WE4M318 GE Buzzer Assembly
13	GEN WE19M1282
19	WH01X10060 GE Washer Dryer Control Knob and Clip Assembly
35	WE4X881 GE Dryer Rotary Start Switch
41	GEN WE01X0980?
72	GEN WE20X0811
75	WE2M173 GE Screw
87	GEN WE4M269
100	WE4M271 GE Timer
199	GEN WE2X280D
200	WE1X688 GE Dryer Clamp and Screw
201	WE16M15 GE Washer Dryer Blower Wheel
203	WE13X200 GE Motor Strap
204	WE1X921 GE Motor Strap
205	WE13M39 GE Motor Support
209	GEN WE02M0165
213	WE03X29897 BELT DRIVE
215	WE03X20434 GE Washer Idler Arm
216	WE12X81 GE Dryer Idler Pulley
218	BLOWER HOUSING
228	WE14X20421 GE Exhaust Duct
230	GEN WE04M216
232	WE2M202 GE Screw
233	MOTOR PLATE (E-COAT)
234	GEN WE02M0096
235	WE1M280 GE Screw
237	WE2M200 GE Ground Screw
239	GEN WE02M0167
630	WE17X10010 GE Washer Dryer Drive Motor and Pulley Assembly
803	WD21X10261 GE Dishwasher Interlock Switch
3109	WD02X10057 GE Dishwasher Screw 10-16 x 1
3118	WE2M174 GE Screw #10
