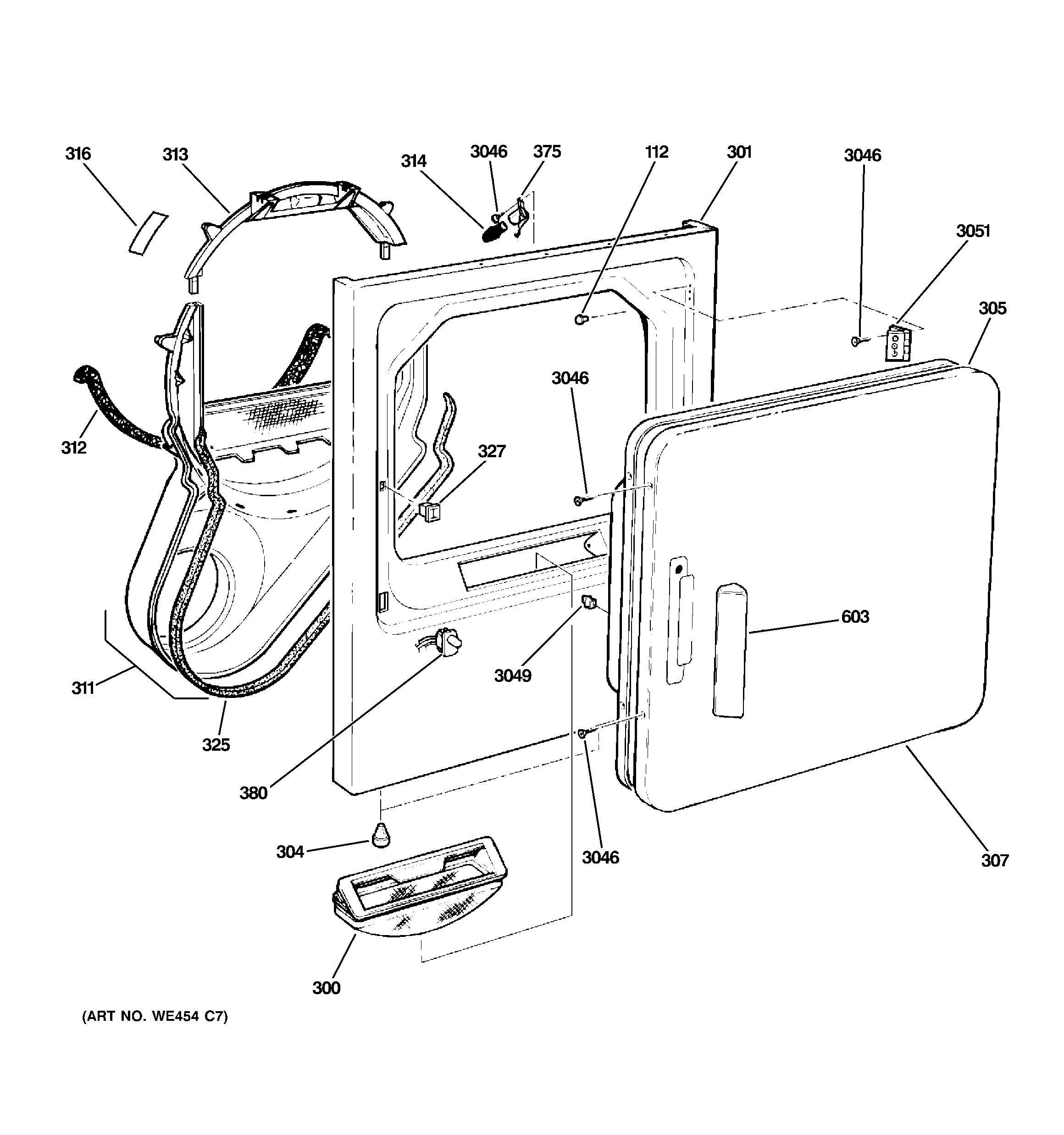

DBSR453GB3CC FRONT PANEL & DOOR

DBSR453GB3CC FRONT PANEL & DOOR

Written by

in

DBSR453GB3CC FRONT PANEL & DOOR

Products

PositionProduct
112WR01X21263 GE Refrigerator Reversible Door Plug
300WE18X25100 GE Dryer Lint Screen Filter
301CABINET FRONT BQ
304WE2M188 GE Front Stabilizing Legs
305INNER DOOR & GSKT ASM CC
307PANEL OUTER BQ
311WE14X25080 GE Dryer Lint Filter Trap Assembly
312FELT TRAP DUCT
313WE3M26 GE Washer Dryer Front Drum Bearing
314WE05X20431 GE Washer Dryer 120V 10W Light Bulb Lamp
316WE03X37318 GE White Drum Slide Bearing 2 Pack
316WE03X37317 GE Bearing Drum Slide Green 2Pk
325WE1M825 GE Washer 39 Inch Dryer Gasket Seal
327WE1M1011 GE Washer Dryer Door Latch
375GEN WE5M16
380WE4M415 GE Washer Door Switch
603WE01X20580 GE Washer Dryer Door Handle
3046WE2M196 GE Screw #8
3049WE1X1192 GE Dryer Door Strike
3051WE1M1033 GE Hinge
