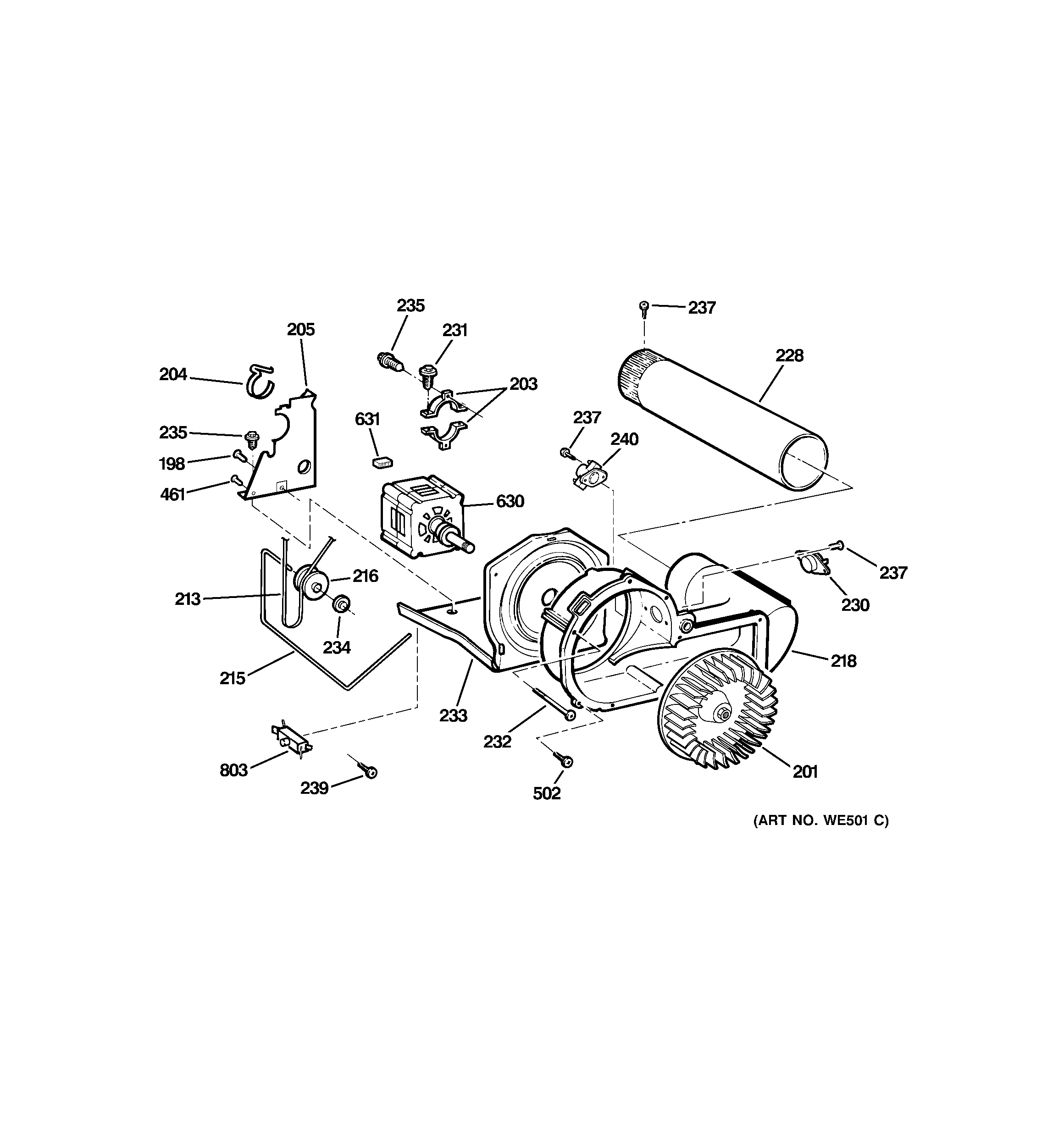

DBVH510EH2WW BLOWER & MOTOR

DBVH510EH2WW BLOWER & MOTOR

Written by

in

DBVH510EH2WW BLOWER & MOTOR

Products

PositionProduct
198WE2M200 GE Ground Screw
201BLOWER WHEEL
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216PULLEY
218WE09X27636 GE Exhaust Blower Gasket
218BLOWER HOUSING
228WE14M107 GE Exhaust Duct
230WE4M300 GE Backup Thermostat Outlet Black
232WE2M202 GE Screw
233GEN WE13M41
234GEN WE2M96?
235WE2X263D GE Screw Package 12 C92
237WD02X10057 GE Dishwasher Screw 10-16 x 1
239WR2X9260 GE Refrigerator Screw
240WE04X20685 GE Washer Thermistor
461WZ5X158D GE Screw Package of 12
502WE2M174 GE Screw #10
630WE17X23463 GE Washer Motor Assembly with Pulley
631GEN WE1M650
803WD21X10261 GE Dishwasher Interlock Switch
