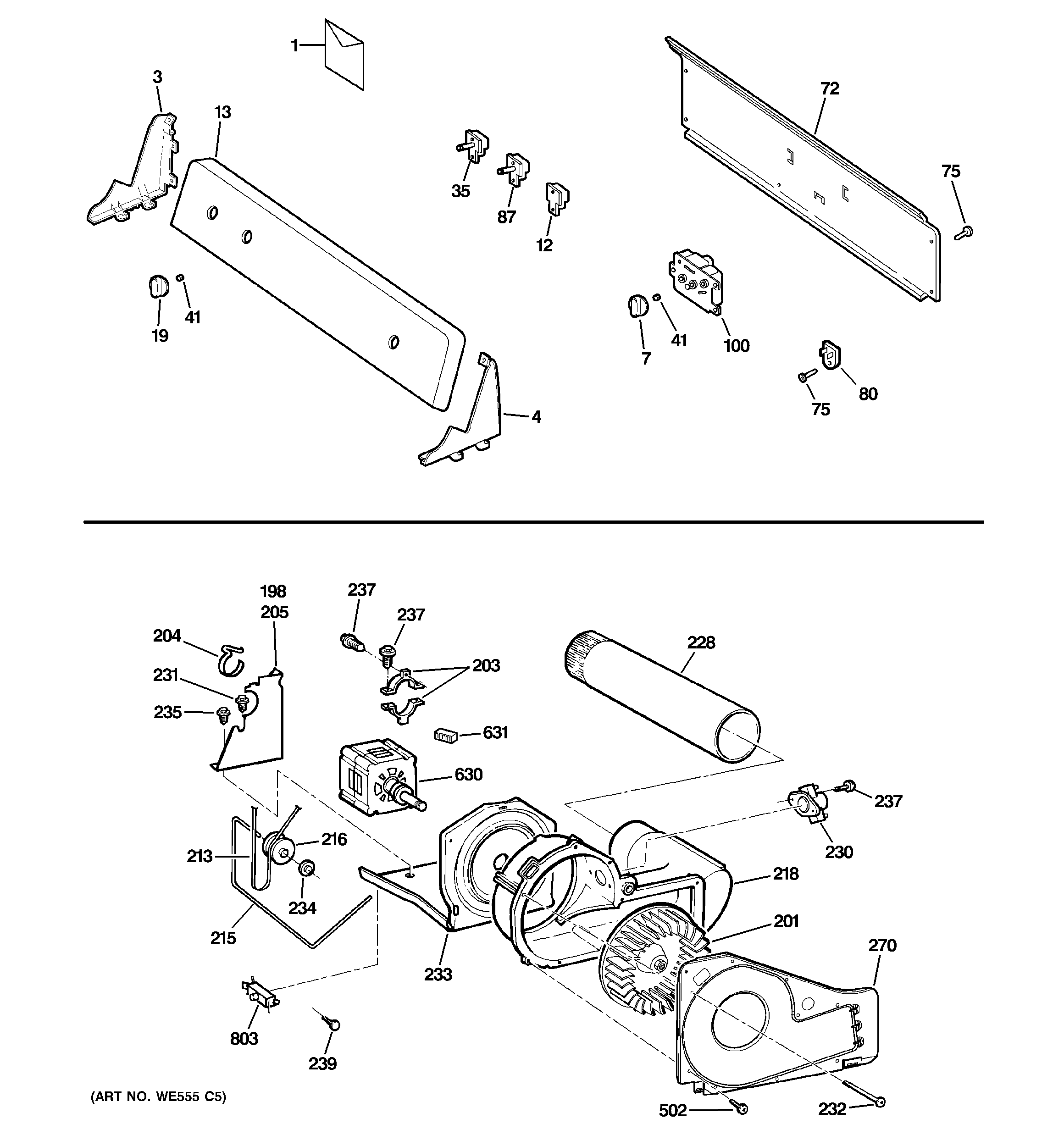

DBXR300EG6WS BACKSPLASH, BLOWER & MOTOR ASSEMBLY

DBXR300EG6WS BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Written by

in

DBXR300EG6WS BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Products

PositionProduct
1GEN 49-90328
1GEN 31-16165
1GEN 31-16224
3GEN WE19M1476
3WE49X22294 GE Endcap Service Kit
4GEN WE19M1475
4WE19X20467 GE Endcap Left Hand
7WE1M654 GE Washer White Timer Knob
7WE01X20375 GE Washer Timer Knob Assembly (Bisque)
12WE4M318 GE Buzzer Assembly
13WE19M1490 GE Control Panel Back
13GEN WE19M1491
13GEN WE19M1563
19WE01X20379 GE Washing Machine Bisque Control Knob Assembly
19WE01X20378 GE Washer Control Knob
35WE4M519 GE Washer Start Switch Rotary
41GEN WE01X0980?
72WE19M1481 GE Rear Panel
75WE2M173 GE Screw
80WE4M255 GE Washer Resistor
87WE4M411 GE Appliance Rotary Switch Zodiac 4 Temp
100WE4M533 GE Washer Control Timer
198WE2M200 GE Ground Screw
201BLOWER WHEEL
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216PULLEY
218BLOWER HOUSING
218WE09X27636 GE Exhaust Blower Gasket
228WE14X20421 GE Exhaust Duct
230WE4M216 GE Dryer Bias Thermostat
232WE2M202 GE Screw
233MOTOR PLATE (E-COAT)
234GEN WE2M96?
235WE2X263D GE Screw Package 12 C92
237WD02X10057 GE Dishwasher Screw 10-16 x 1
239WR2X9260 GE Refrigerator Screw
270GEN WE1M890
502WE2M174 GE Screw #10
630WE17X22217 GE Dryer Drive Motor with Pulley
631GEN WE1M650
803WD21X10261 GE Dishwasher Interlock Switch
