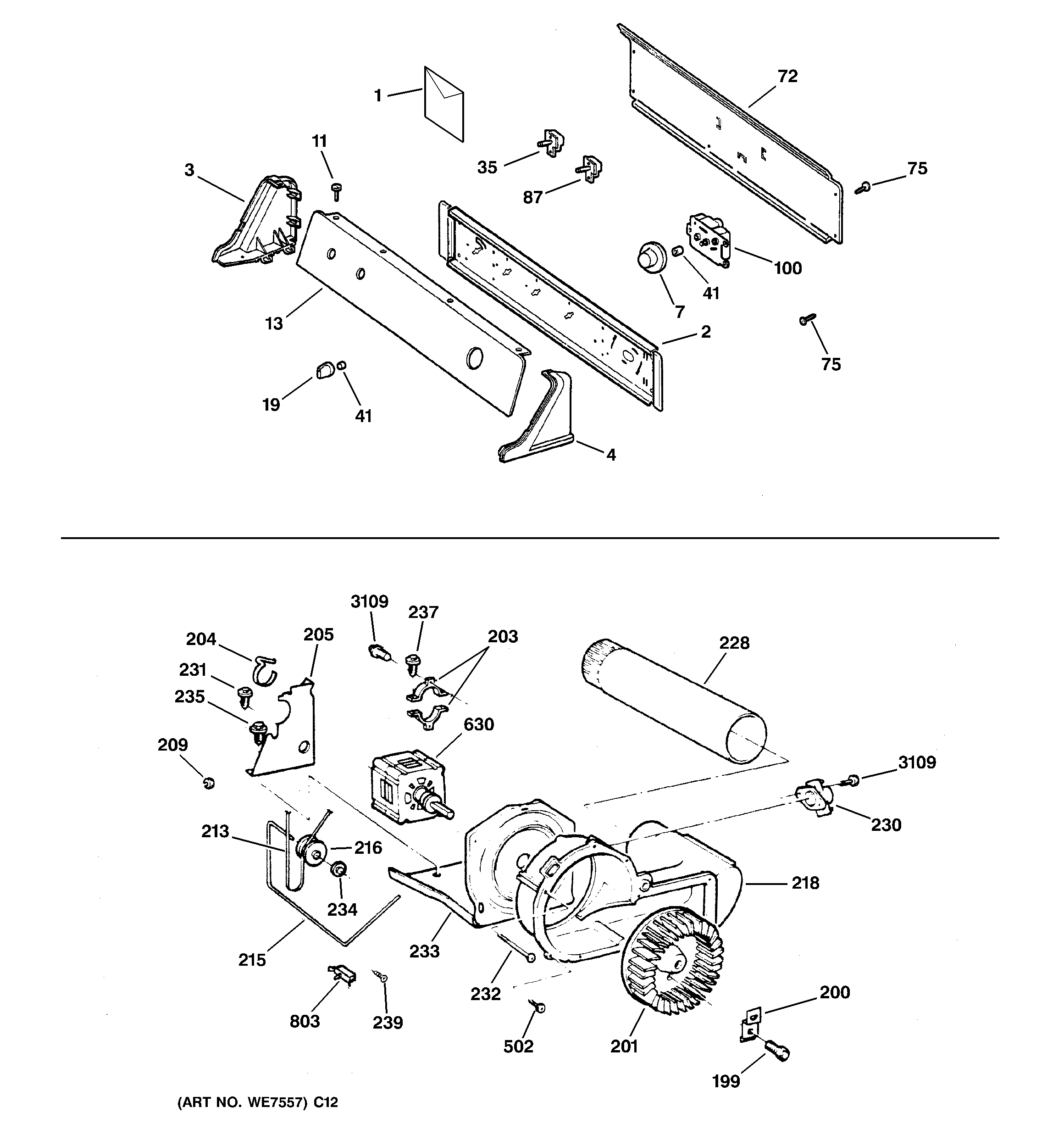

DBXR463GB0WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

DBXR463GB0WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Written by

in

DBXR463GB0WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Products

PositionProduct
1GEN 31-15476
1GEN 31-16045
1GEN 49-90099
2GEN WE19M1166
3GEN WE19M940
4END CAP RH WH
7WE1M654 GE Washer White Timer Knob
13GEN WE19M1269
19WH01X10060 GE Washer Dryer Control Knob and Clip Assembly
35WE4X881 GE Dryer Rotary Start Switch
41GEN WE01X0980?
72GEN WE20X0811
75WE2M173 GE Screw
87GEN WE4M269
100WE4M188 GE Timer
199GEN WE2X280D
200WE1X688 GE Dryer Clamp and Screw
201WE16M15 GE Washer Dryer Blower Wheel
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
209GEN WE02M0165
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216WE12X81 GE Dryer Idler Pulley
218BLOWER HOUSING
228WE14X20421 GE Exhaust Duct
230GEN WE04M216
232WE2M202 GE Screw
233MOTOR PLATE (E-COAT)
234GEN WE02M0096
235WE1M280 GE Screw
237WE2M200 GE Ground Screw
239GEN WE02M0167
502WE2M174 GE Screw #10
630WE17X10010 GE Washer Dryer Drive Motor and Pulley Assembly
803WD21X10261 GE Dishwasher Interlock Switch
3109WD02X10057 GE Dishwasher Screw 10-16 x 1
