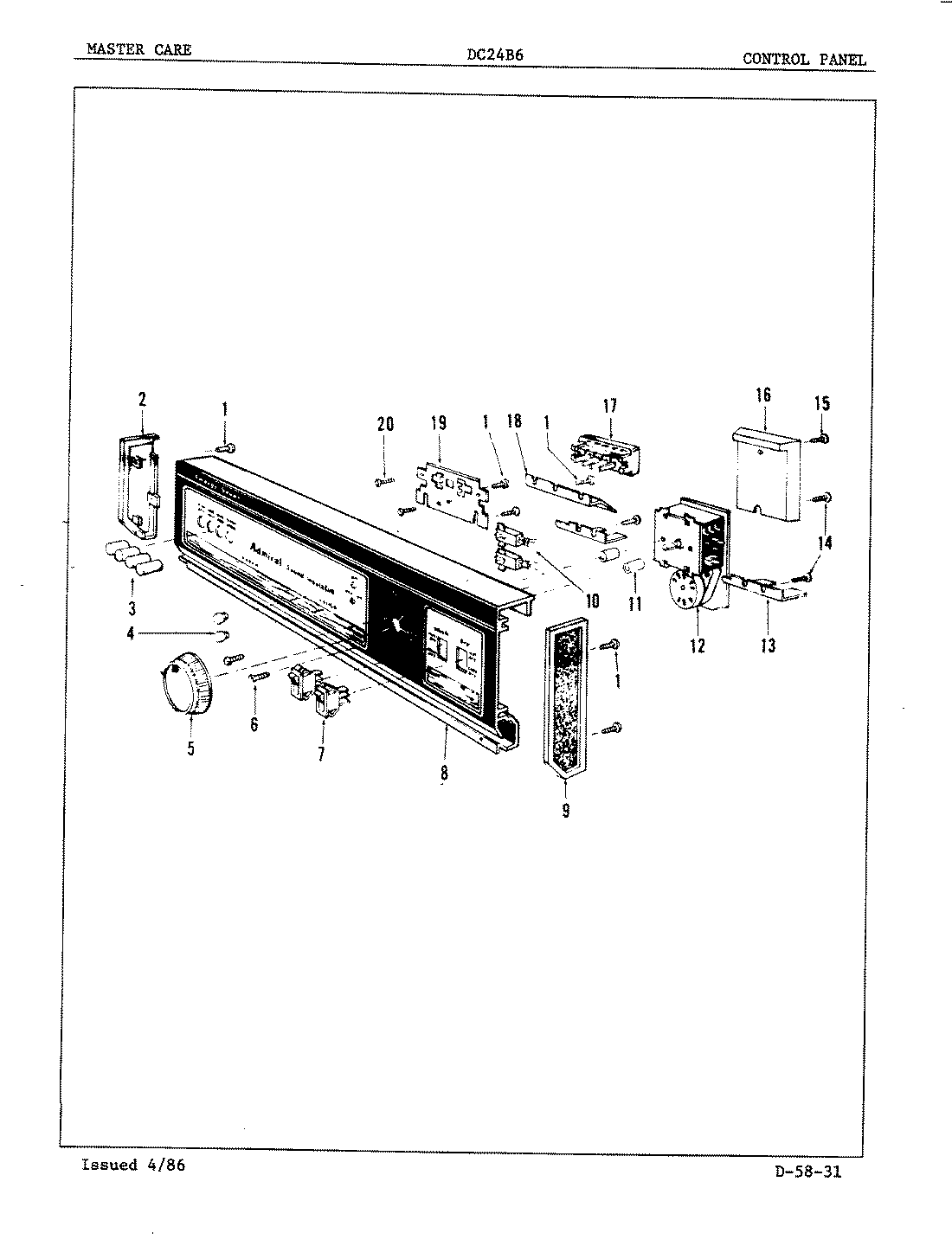

DC24B6 02 – CONTROL PANEL
Products
| Position | Product |
|---|---|
| 1 | SCREW |
| 2 | LH END CAP |
| 3 | PUSH BUTTON |
| 4 | RED LENS |
| 5 | MAY 807094 |
| 6 | MAY 805324 |
| 7 | MAY 807665 |
| 8 | MAY 808247 |
| 9 | MAY 806404 |
| 10 | LIGHT ASM |
| 11 | MAY 805323 |
| 12 | MAY 808128 |
| 13 | MAY 806972 |
| 14 | SCREW |
| 15 | SCREW |
| 16 | MAY 807425 |
| 17 | MAY 808171 |
| 18 | MAY 807221 |
| 19 | MAY 806594 |
| 20 | MAY 807141 |
