DC24B6 06 – INNER TUB

DC24B6 06 – INNER TUB

Written by

in

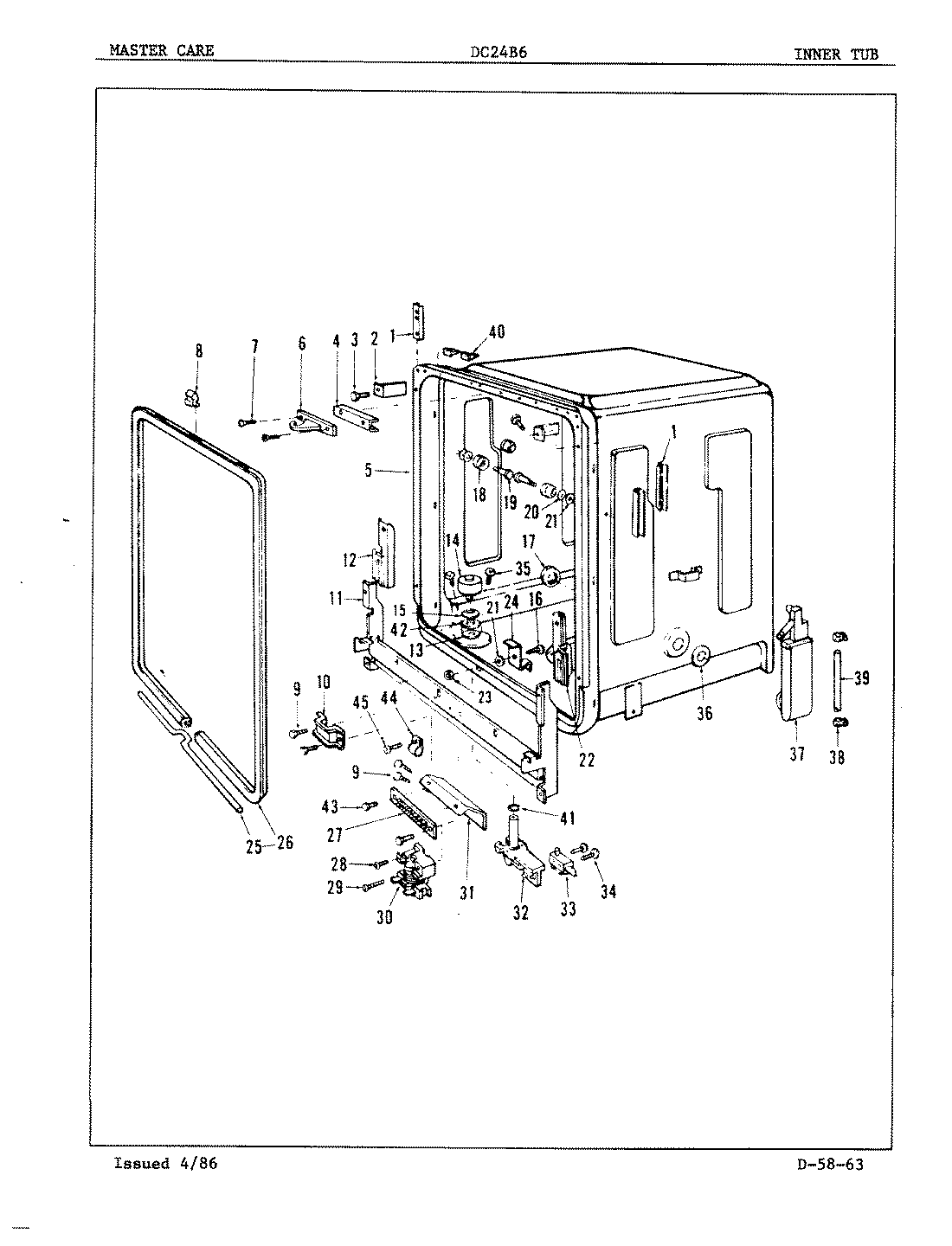

DC24B6 06 – INNER TUB

Products

Position	Product
1	TAPPING PLATE
2	MAY 807454
3	MAY 806539
4	STRIKE SHIM
5	MAY 808187
6	STRIKE
7	MAY 806890
8	CLIP KIT (TUB GASKET)
9	SCREW
10	CLAMP
11	HINGE
12	LH GUIDE
13	GASKET
14	MAY 804630
15	MAY 804149
16	MAY 803319
17	MAY 805669
18	ROLLER
19	SCREW
20	MAY 803367
21	SEALER
22	RH GUIDE
23	MAY 803346
24	MAY 808115
25	MAY 808114
26	MAY 808071
27	MAY 807486
28	MAY 806593
29	MAY 804672
30	SUB 805255
31	MAY 807849
32	FLOAT ASM
33	FLOAT SWITCH
34	BOLT
35	MAY 807268
36	WASHER
37	MAY 806470
38	MAY 807813
39	INLET TUBE
40	MAY 807018
41	O RING
42	PLATE, FLOAT TUBE
43	MAY 807501
44	MAY 807212
45	SCREW
