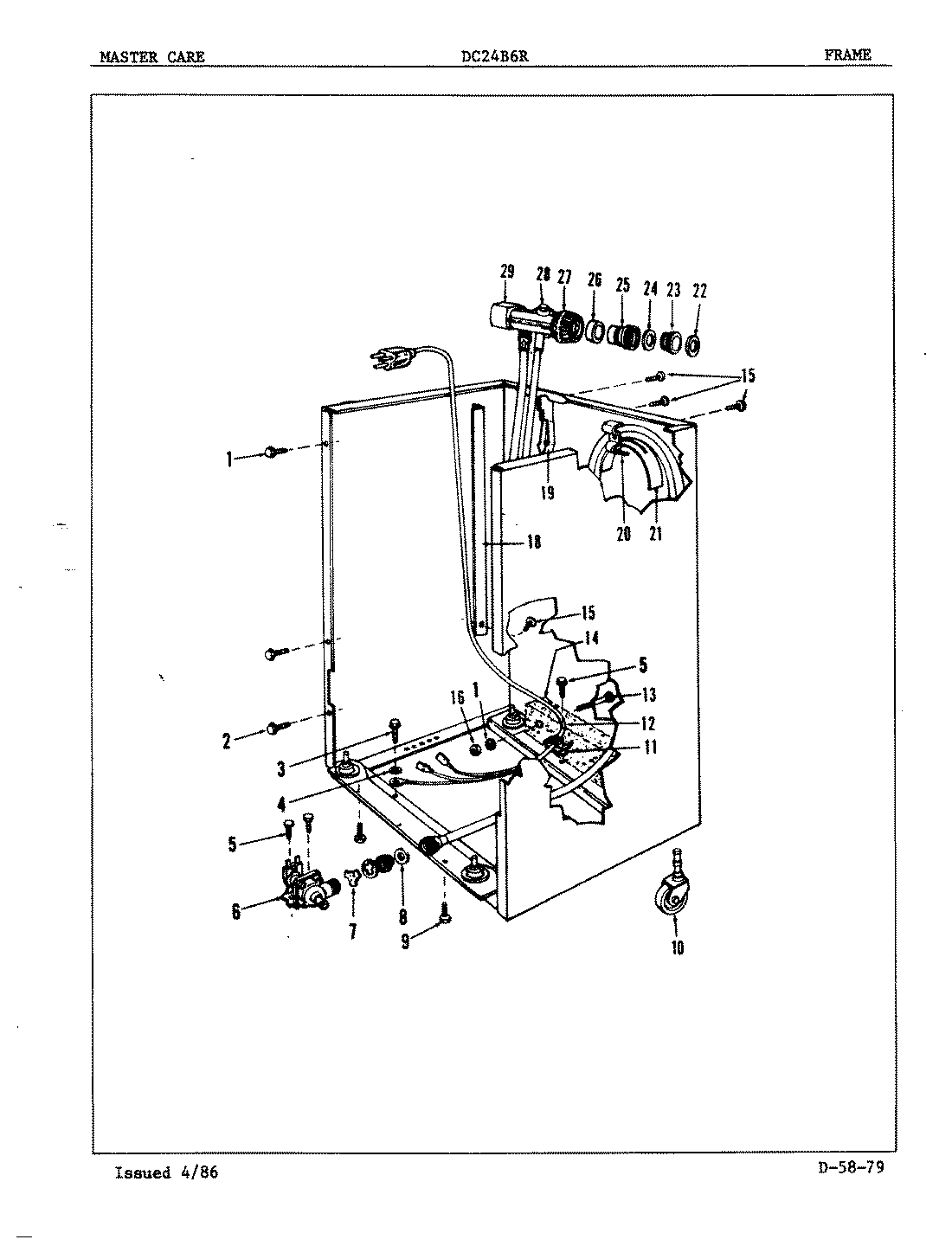

DC24B6R 05 – FRAME

Products

Position	Product
1	MAY 806539
1	MAY 806902
2	SCREW
3	SCREW
3	MAY 807951
4	MAY 807373
6	MAY 804982
7	MAY 807607
8	HOSE WASHER
9	MAY 806903
9	MAY 808658
10	SCREW
10	MAY 806171
11	MAY 804426
12	MAY 807883
12	POWER CORD
13	SCREW
14	MAY 808615
15	MAY 807501
16	MAY 808661
17	MAY 808613
18	HOSE GUARD
19	HOSE GUIDE
20	HOSE CLAMP
21	HOSE SUPPORT
22	MAY 803393
23	ADAPTOR
24	MAY 803392
25	AERATOR
26	U PACKING
27	COLLAR KIT
28	RELIEF KIT
29	HOSE ASM
