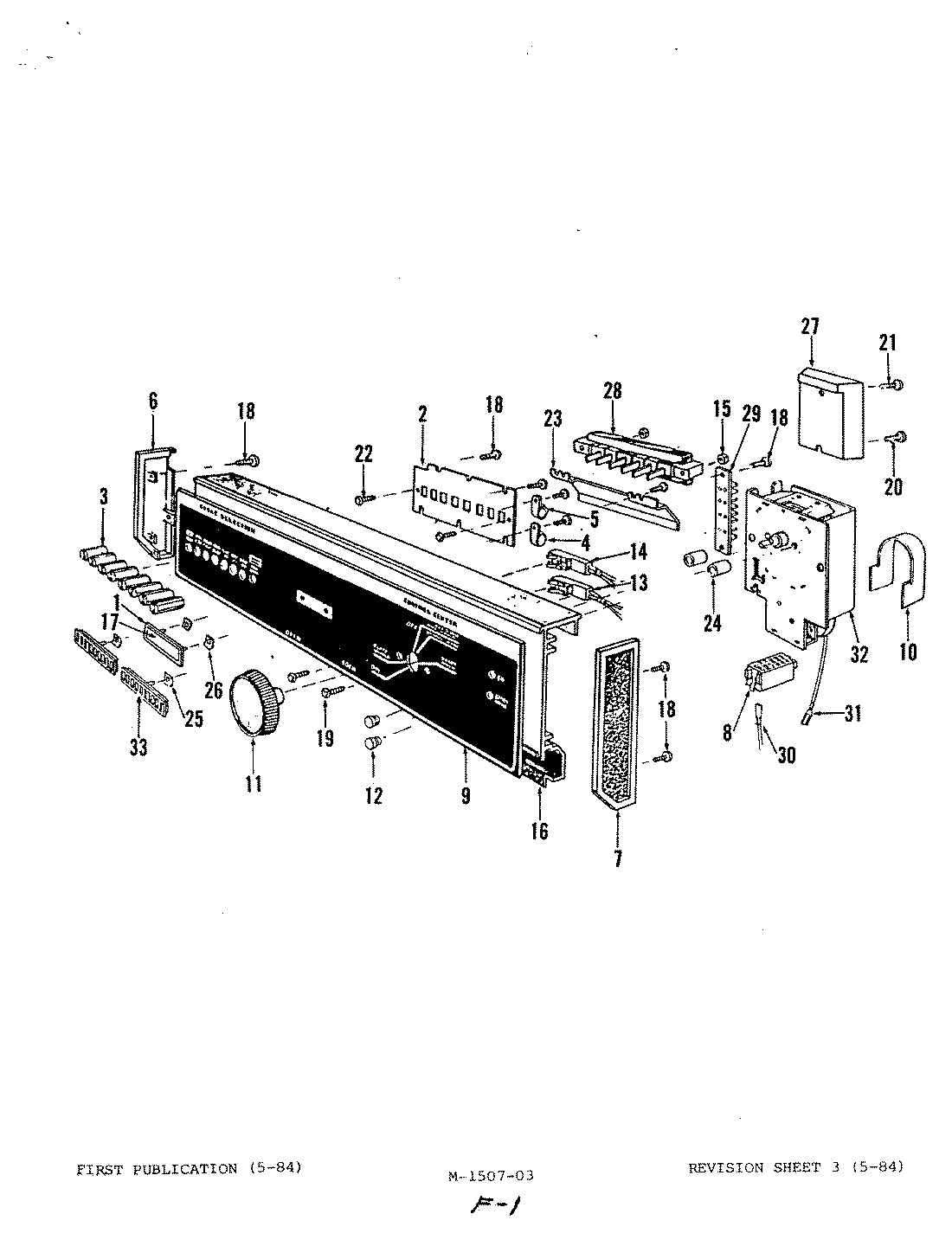

DC24D6 01 – CONTROL PANEL

Products

Position	Product
1	MAY 808713
2	MAY 807102
3	PUSH BUTTON
4	WIRE CLAMP
5	MAY 805584
6	LH END CAP
7	RH END CAP
8	RH TIMER HOUSNG
9	MAY 808734
10	INSULATOR
11	MAY 808730
12	RED LENS
13	MAY 808575
13	MAY 808732
14	LIGHT ASM
15	MAY 803346
16	MAY 808731
17	MAY 808721
17	MAY 808720
18	SCREW
19	SCREW
20	SCREW
21	SCREW
22	MAY 807103
23	SWITCH GUARD
24	SPACER
25	MAY 808475
26	MAY 807970
27	MAY 807425
28	MAY 807737
28	MAY 808733
29	MAY 808483
30	MAY 808333
31	TERMINAL
32	MAY 808682
33	VENT TRIM
