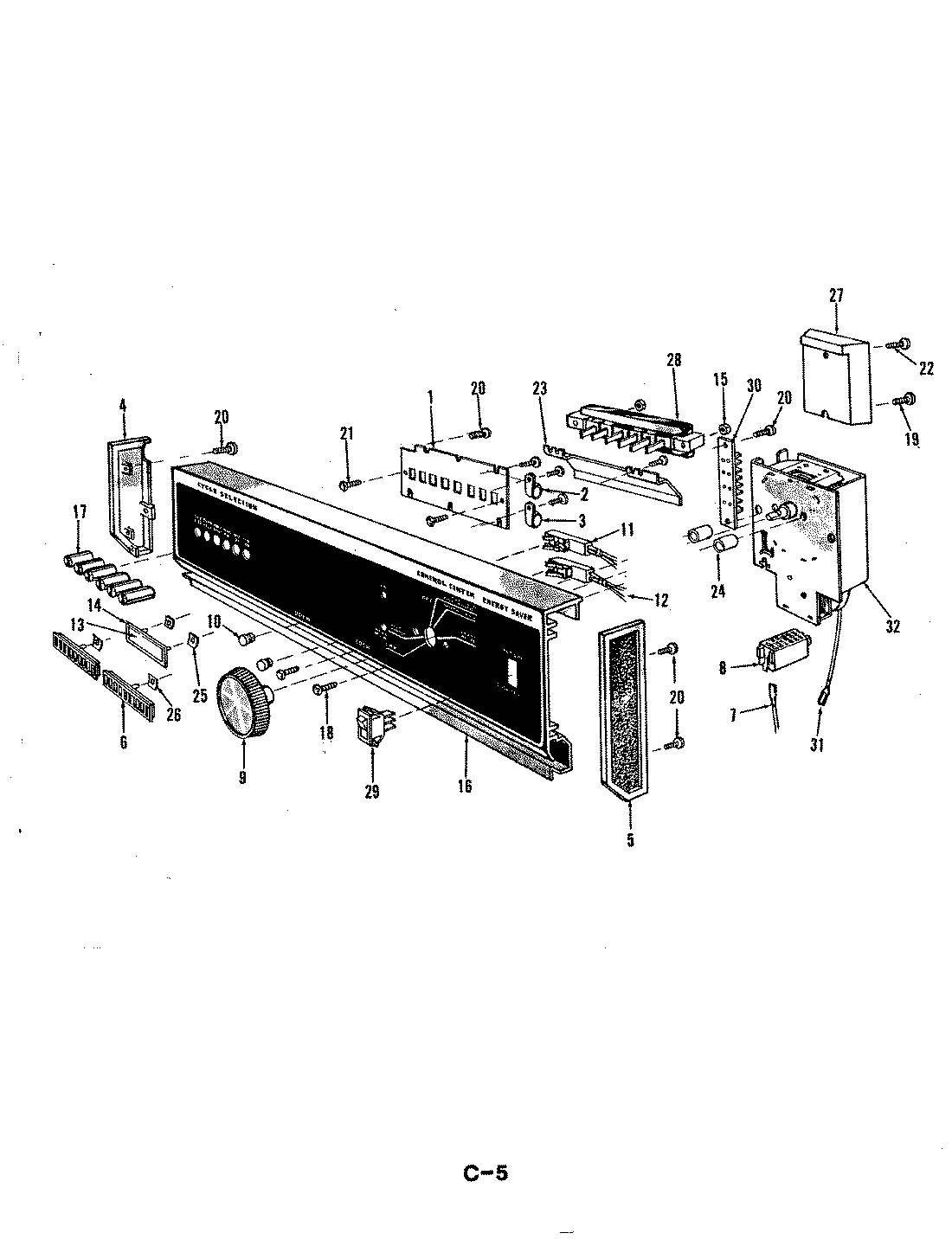

DC24D6-A 01 – CONTROL PANEL

Products

Position	Product
1	MAY 807102
2	MAY 805584
3	WIRE CLAMP
4	LH END CAP
5	RH END CAP
6	VENT TRIM
7	MAY 808333
8	RH TIMER HOUSNG
9	MAY 808730
10	RED LENS
11	MAY 808575
12	MAY 808732
13	MAY 808721
14	MAY 808713
15	MAY 803346
16	MAY 809125
17	PUSH BUTTON
18	SCREW
19	SCREW
20	SCREW
21	MAY 807103
22	SCREW
23	MAY 808397
24	SPACER
25	MAY 807970
26	MAY 808475
27	MAY 807425
28	MAY 808733
29	MAY 807737
30	MAY 808483
31	TERMINAL
32	MAY 808671
