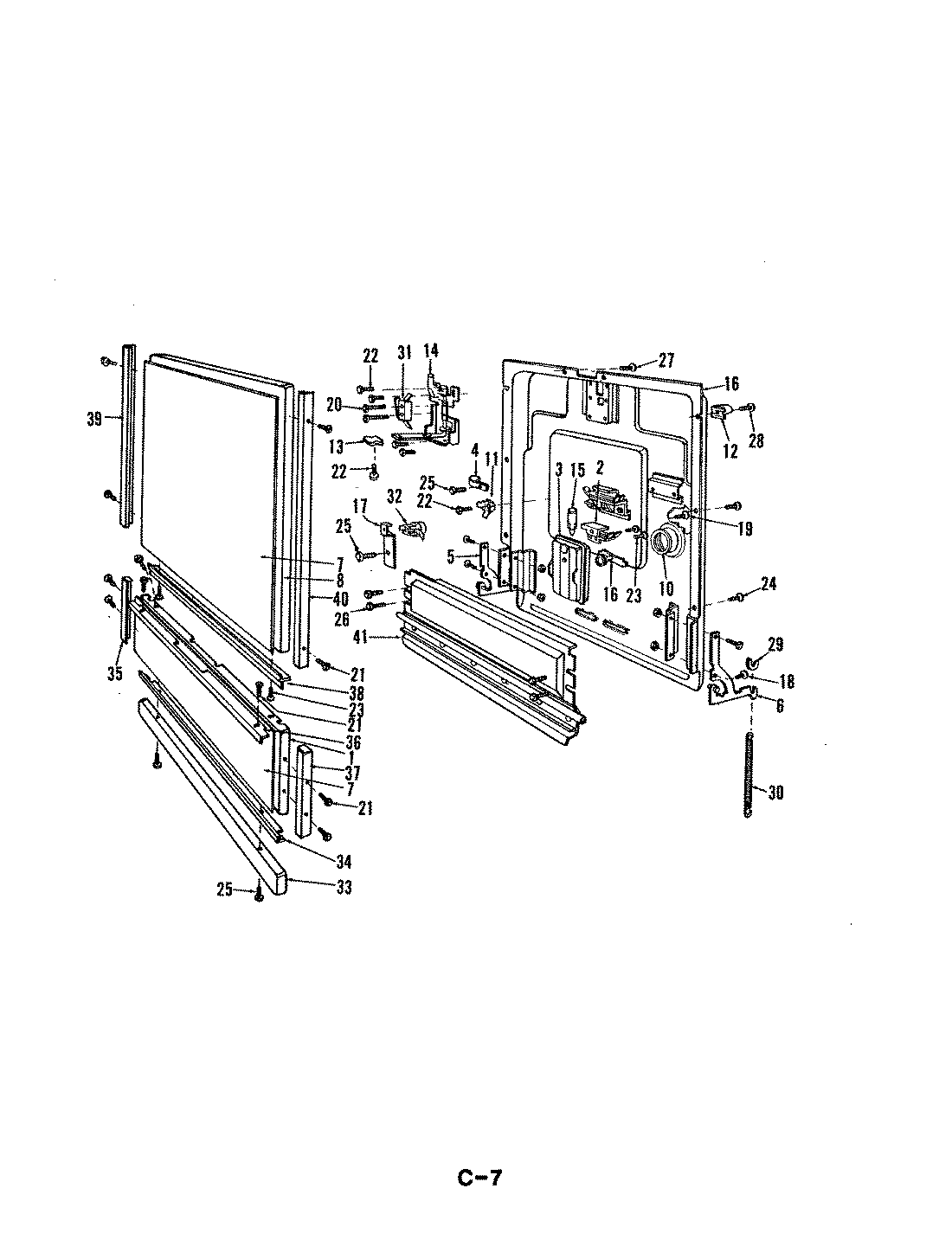

DC24D6-A 03 – DOOR PARTS

Products

Position	Product
1	PANEL
2	BI-METAL ASM
3	DISPENSER
4	WIRE CLAMP
5	LH ARM
6	RH ARM
7	INSERT, DOOR PANEL
8	OUTER PANEL
9	FILL PLUG
10	GROMMET
11	GROUND TERMINAL
12	DOOR GUIDE
13	MAY 806398
14	LATCH ASM
15	MAY 806757
16	INNER PANEL
17	RETAINER
18	MAY 803311
19	SCREW
20	MAY 808618
22	SCREW
23	MAY 807501
24	SCREW
25	SCREW
26	SCREW
27	SCREW
28	MAY 808749
29	SPRING PAD
30	DOOR SPRING
31	MAY 807043
32	THERMOSTAT
33	KICKPLATE
34	ACCESS PNL TRIM
35	LH TRIM
36	ACC PNL TRIM
37	RH TRIM
38	DOOR TRIM
39	DOOR TRIM
40	DOOR TRIM
41	VENT BAFFLE
