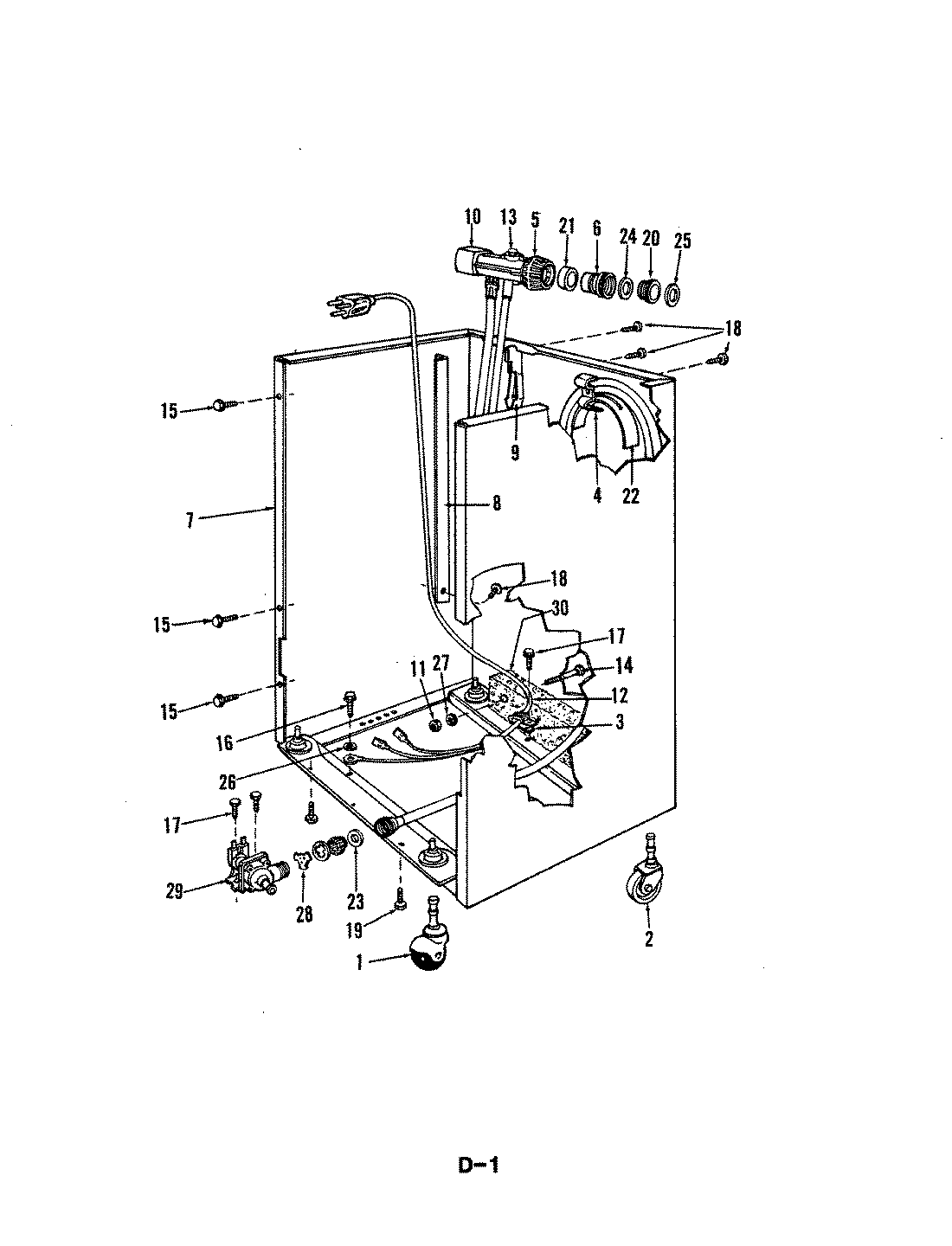

DC24D6-A 04 – FRAME PARTS

DC24D6-A 04 – FRAME PARTS

Written by

in

DC24D6-A 04 – FRAME PARTS

Products

Position	Product
1	MAY 808944
1	FRONT CASTER
2	MAY 807000
2	MAY 808543
3	MAY 804426
4	HOSE CLAMP
5	COLLAR KIT
6	AERATOR
7	FRAME ASM AM
8	HOSE GUARD
9	HOSE GUIDE
10	HOSE ASM
11	MAY 808661
12	POWER CORD
13	RELIEF KIT
14	MAY 808612
15	MAY 806539
16	MAY 807951
17	MAY 807950
18	MAY 807501
19	MAY 808658
20	ADAPTOR
21	U PACKING
22	HOSE SUPPORT
23	HOSE WASHER
24	MAY 803392
25	MAY 803393
26	MAY 807373
27	MAY 808613
28	FLOW WASHER
29	INLET VALVE KIT
30	MAY 808615
