DC24D6-A 07 – TUB – Aparts

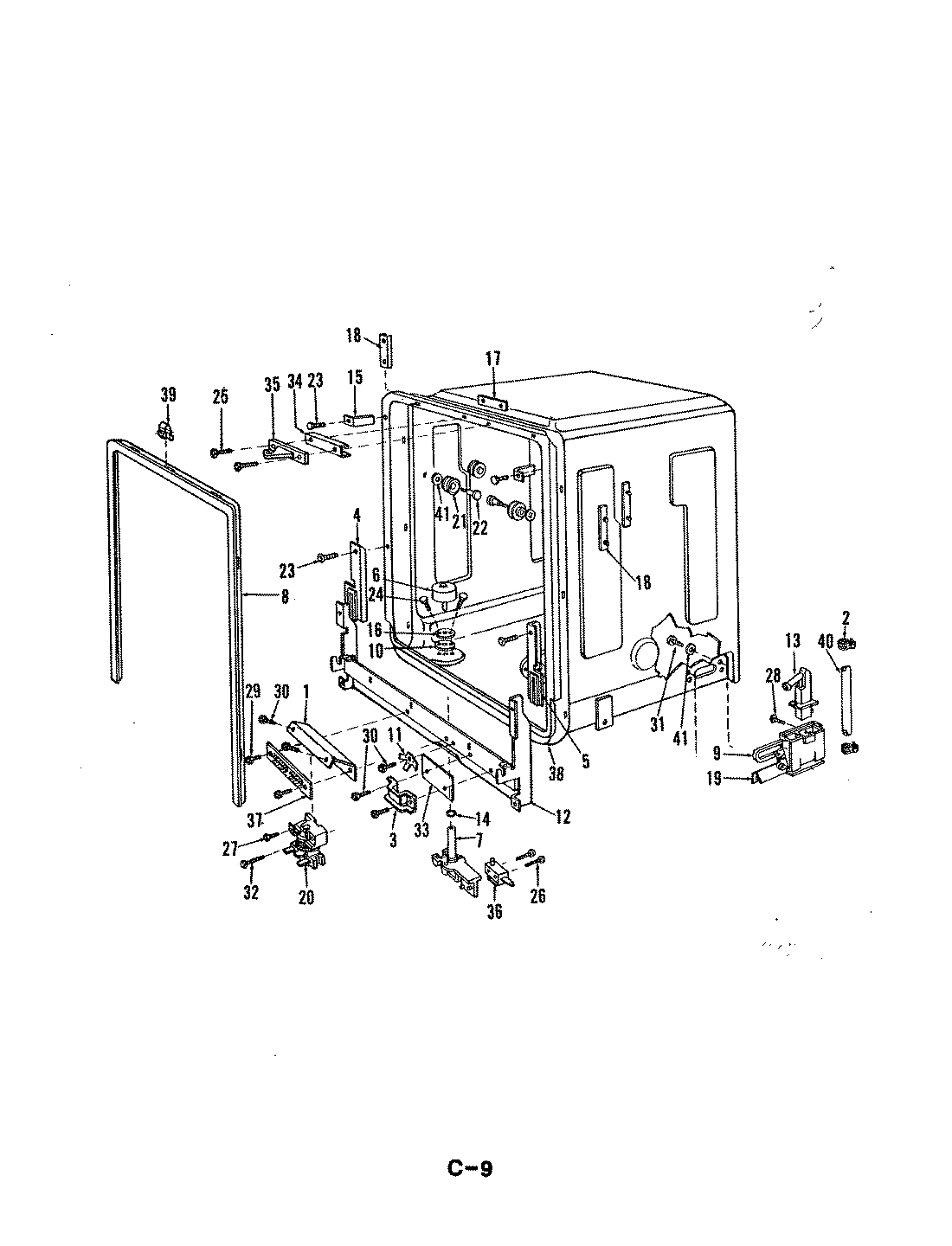

DC24D6-A 07 – TUB

Products

Position	Product
1	MAY 807849
2	MAY 807813
3	CLAMP
4	LH GUIDE
6	MAY 804630
7	FLOAT ASM
8	WHITE GASKET
9	GASKET
10	GASKET
11	GROUND TERMINAL
12	HINGE ASM
13	INLET NOZZLE
14	O RING
15	MAY 807454
16	PLATE, FLOAT TUBE
17	TAPPING PLATE
18	TAPPING PLATE
19	MAY 808705
20	RELAY
21	ROLLER
22	HARDWARE KIT
23	MAY 806539
24	MAY 807268
25	MAY 806890
26	BOLT
27	MAY 806593
28	SCREW
29	MAY 807501
30	MAY 808658
31	SCREW
32	MAY 804672
33	WIRE SHIELD
34	STRIKE SHIM
35	STRIKE
36	FLOAT SWITCH
37	MAY 807486
38	TUB&GASKET ASM
39	MAY 809074
40	INLET TUBE
41	MAY 809044
