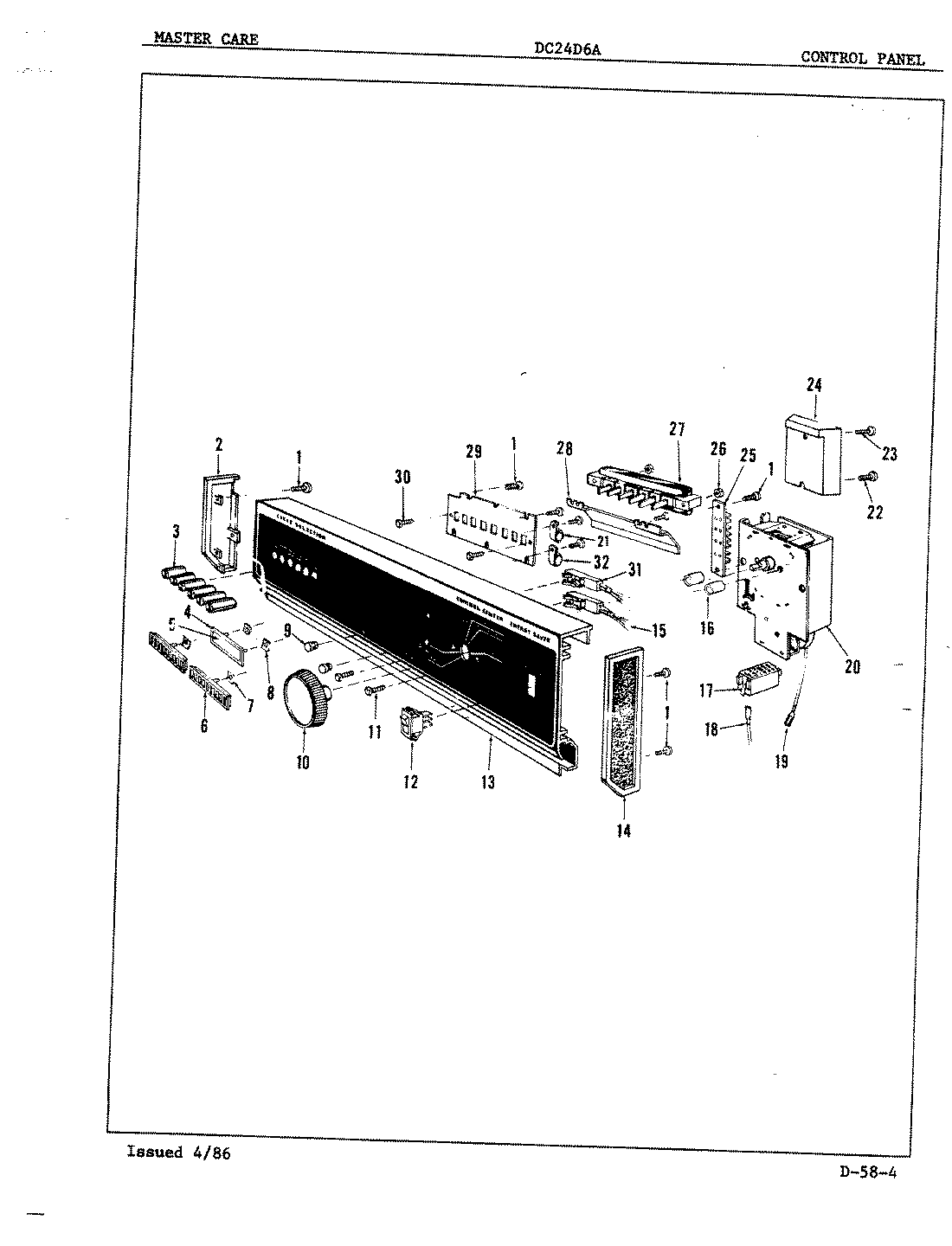

DC24D6A 02 – CONTROL PANEL

Products

Position	Product
1	SCREW
2	LH END CAP
3	PUSH BUTTON
4	MAY 808713
5	MAY 808721
5	MAY 808719
5	MAY 808717
5	MAY 808720
6	VENT TRIM
7	MAY 808475
8	MAY 807970
9	RED LENS
10	MAY 808730
11	SCREW
12	MAY 807737
13	MAY 809125
14	RH END CAP
15	MAY 808732
16	SPACER
17	RH TIMER HOUSNG
18	MAY 808333
19	TERMINAL
20	MAY 808671
21	MAY 805584
22	SCREW
23	SCREW
24	MAY 807425
25	MAY 808483
26	MAY 803346
27	MAY 808733
28	SWITCH GUARD
29	MAY 807102
30	MAY 807103
31	MAY 808575
32	WIRE CLAMP
