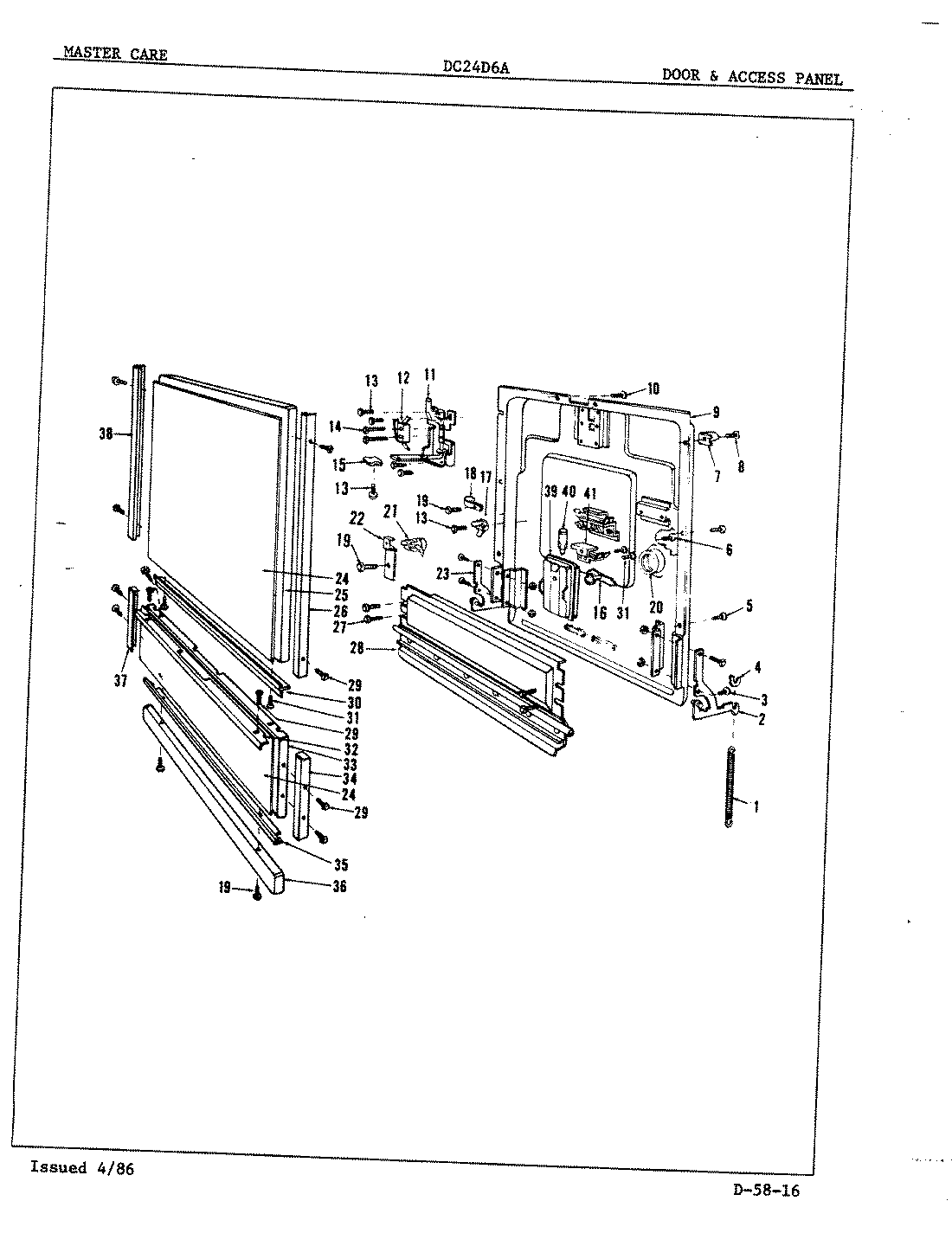

DC24D6A 04 – DOOR & ACCESS PANEL

DC24D6A 04 – DOOR & ACCESS PANEL

Written by

in

DC24D6A 04 – DOOR & ACCESS PANEL

Products

Position	Product
1	DOOR SPRING
2	RH ARM
3	MAY 803311
4	SPRING PAD
5	SCREW
6	SCREW
7	DOOR GUIDE
8	MAY 808749
9	INNER PANEL
10	SCREW
11	LATCH ASM
12	MAY 807043
13	SCREW
14	MAY 808618
15	MAY 806398
16	FILL PLUG
17	GROUND TERMINAL
18	WIRE CLAMP
19	SCREW
20	GROMMET
21	THERMOSTAT
22	RETAINER
23	LH ARM
24	INSERT, DOOR PANEL
25	OUTER PANEL
26	DOOR TRIM
27	SCREW
28	VENT BAFFLE
29	MAY 807293
30	DOOR TRIM
31	MAY 807501
32	ACC PNL TRIM
33	PANEL
34	RH TRIM
35	ACCESS PNL TRIM
36	KICKPLATE
37	LH TRIM
38	DOOR TRIM
39	DISPENSER
40	MAY 806757
41	BI-METAL ASM
