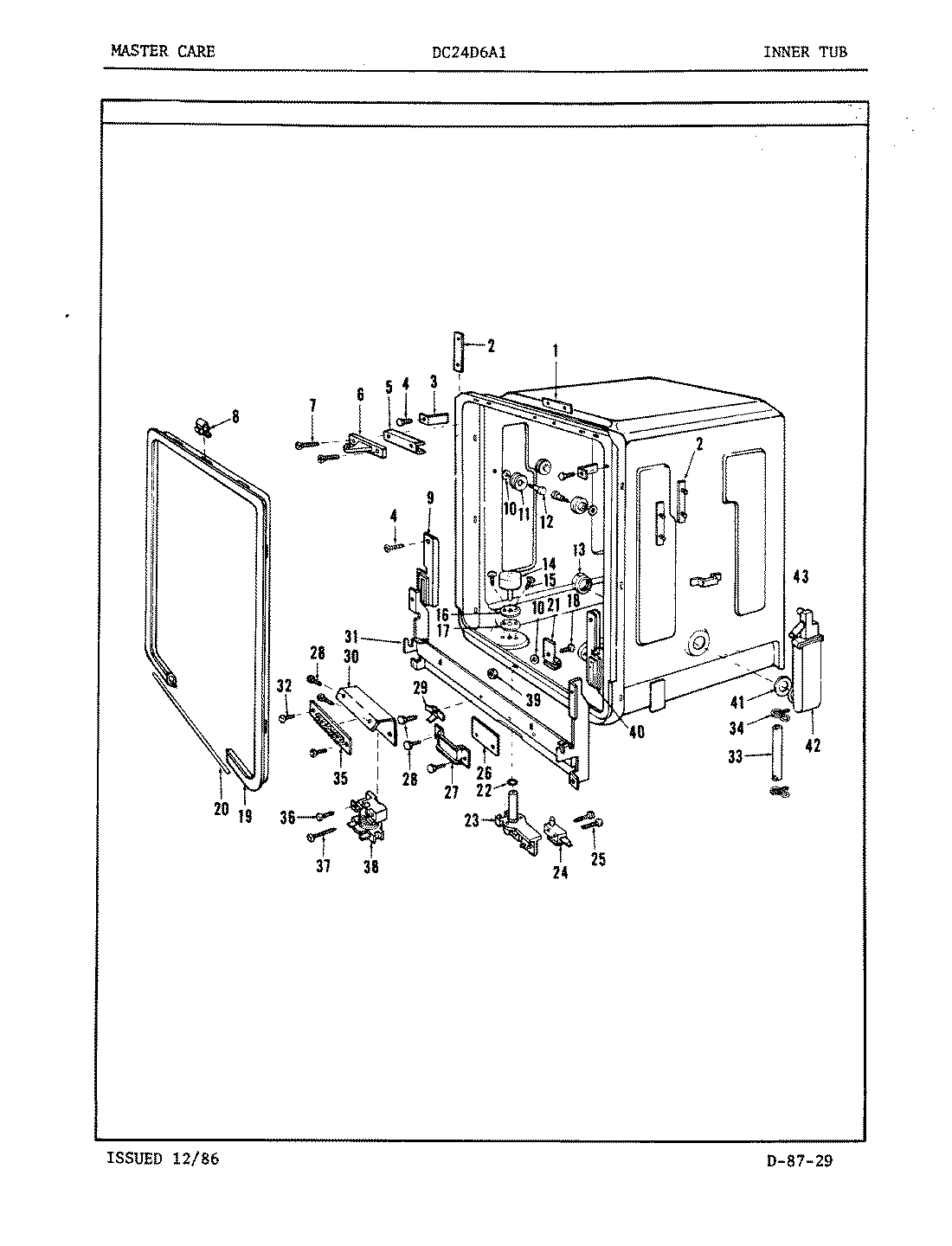

DC24D6A1 06 – INNER TUB

DC24D6A1 06 – INNER TUB

Written by

in

DC24D6A1 06 – INNER TUB

Products

Position	Product
1	TAPPING PLATE
2	TAPPING PLATE
3	MAY 807454
4	MAY 806539
5	STRIKE SHIM
6	STRIKE
7	MAY 806890
8	CLIP KIT (TUB GASKET)
9	LH GUIDE
10	MAY 809044
11	ROLLER
12	HARDWARE KIT
13	MAY 805669
14	MAY 804630
15	MAY 807268
16	PLATE, FLOAT TUBE
17	GASKET
18	MAY 803319
19	WHITE GASKET
20	WIRE,GASKT JUNC
21	MAY 808115
22	O RING
23	FLOAT ASM
24	FLOAT SWITCH
25	BOLT
26	WIRE SHIELD
27	CLAMP
28	MAY 808658
29	GROUND TERMINAL
30	MAY 807849
31	HINGE ASM
32	MAY 807501
33	INLET TUBE
34	MAY 807813
35	MAY 807486
36	MAY 806593
37	MAY 804672
38	RELAY
39	MAY 803346
40	RH GUIDE
41	WASHER
42	MAY 806470
43	SEALANT
43	MAY 809261
