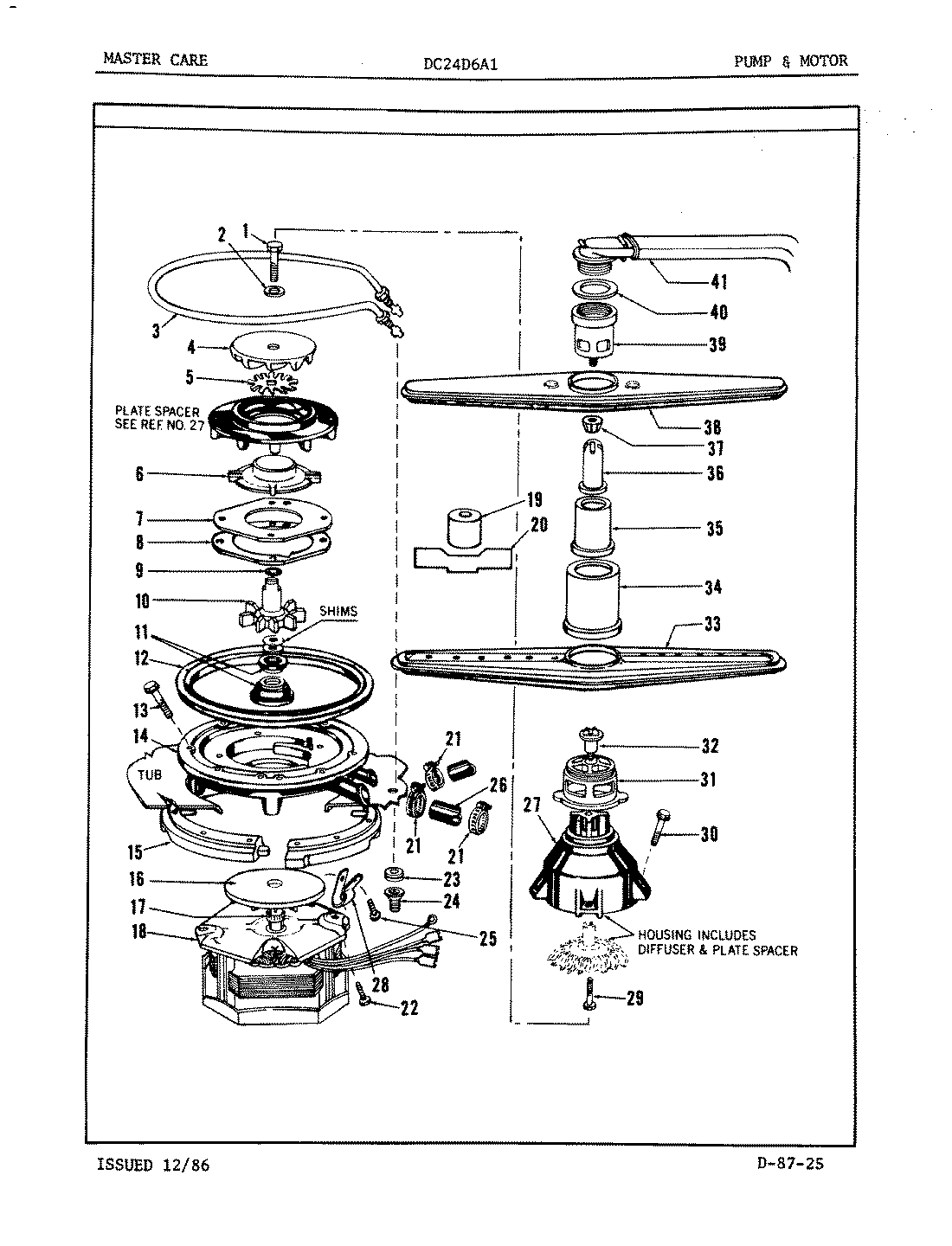

DC24D6A1 07 – PUMP & MOTOR

Products

Position	Product
1	MAY 806353
2	MAY 803367
3	HEATER
4	UPPER IMPELLER
5	MACERATOR BLADE
6	SHROUD
7	PUMP PLATE
8	GASKET
9	O RING
10	PUMP SEAL KIT
11	GASKET
12	PUMP GASKET
13	MAY 807268
14	MAY 809102
15	CLAMP RING
16	WATER SHLD, FAN
17	RING
18	MOTOR
18	PUMP&MOTOR ASM
19	SEAL TOOL
20	SHIM GAUGE
21	MAY 808186
22	MAY 809022
23	GROMMET
24	NUT
25	MAY 807270
26	HOSE CONNECTOR
27	IMPELR HSG KIT
28	WIRE CLAMP
29	SCREW
30	SCREW
31	MAY 809046
32	SPRAY ARM BOLT
33	MAY 808177
34	TOWER BASE
35	MAY 808179
36	MAY 808180
37	MAY 808181
38	SPRAY ARM
39	MAY 808183
40	MAY 808184
41	ELBOW & TUBE
