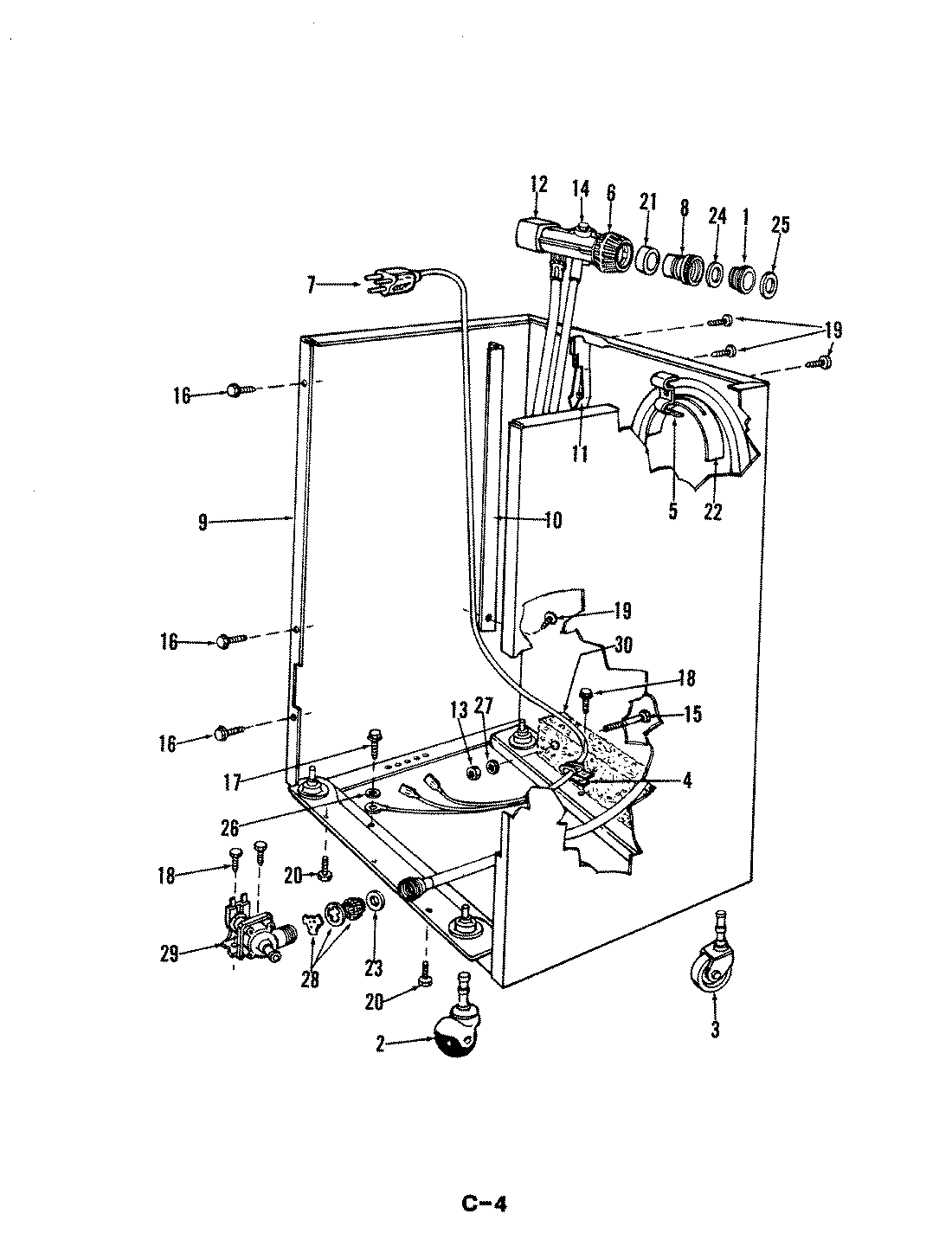

DC24H6 04 – FRAME PARTS

DC24H6 04 – FRAME PARTS

Written by

in

DC24H6 04 – FRAME PARTS

Products

Position	Product
1	ADAPTOR
2	FRONT CASTER
3	MAY 808543
4	MAY 804426
5	HOSE CLAMP
6	COLLAR KIT
7	POWER CORD
8	AERATOR
9	WHITE FRAME
10	HOSE GUARD
11	HOSE GUIDE
12	HOSE ASM
13	MAY 808661
14	RELIEF KIT
15	MAY 808612
16	MAY 806539
17	MAY 807951
18	MAY 807950
19	MAY 807501
20	MAY 808658
21	U PACKING
22	HOSE SUPPORT
23	HOSE WASHER
24	MAY 803392
25	MAY 803393
26	MAY 807373
27	MAY 808613
28	FLOW WASHER
29	INLET VALVE KIT
30	MAY 808615
