DC24H6 07 – TUB – Aparts

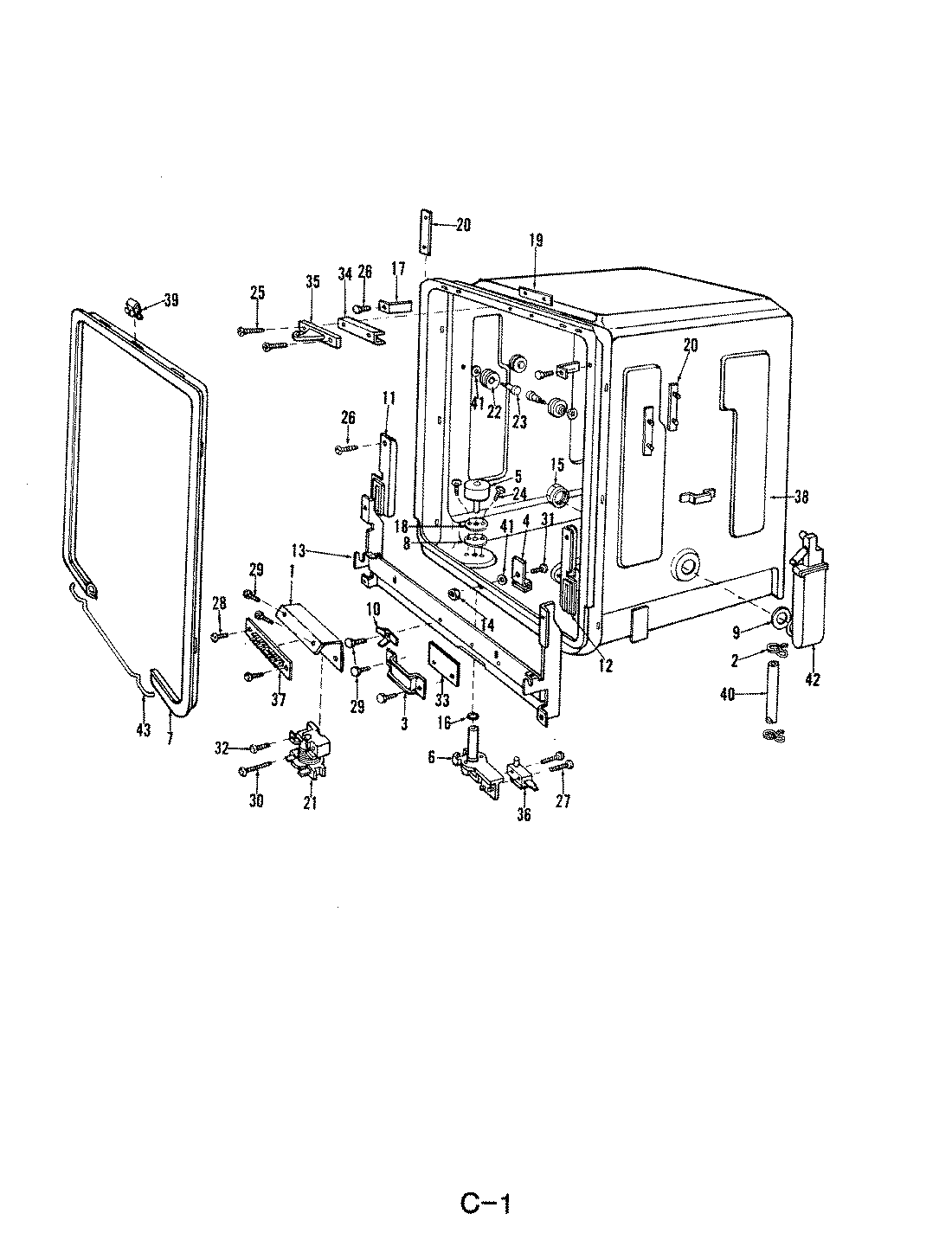

DC24H6 07 – TUB

Products

Position	Product
1	MAY 807849
2	MAY 807813
3	CLAMP
4	MAY 808115
5	MAY 804630
6	FLOAT ASM
7	GASKET ASM
8	GASKET
9	WASHER
10	GROUND TERMINAL
11	LH GUIDE
12	RH GUIDE
13	HINGE ASM
14	MAY 803346
15	MAY 805669
16	O RING
17	MAY 807454
18	PLATE, FLOAT TUBE
19	TAPPING PLATE
20	TAPPING PLATE
21	RELAY
22	ROLLER
23	HARDWARE KIT
24	MAY 807268
25	MAY 806890
26	MAY 806539
27	BOLT
28	MAY 807501
29	MAY 808658
30	MAY 804672
31	MAY 803319
32	MAY 806593
33	WIRE SHIELD
34	SHIM
35	STRIKE
36	FLOAT SWITCH
37	MAY 807486
38	TUB & GASKET ASM
39	CLIP KIT (TUB GASKET)
40	INLET TUBE
41	MAY 809044
42	MAY 806470
43	JUNCTION ROD
