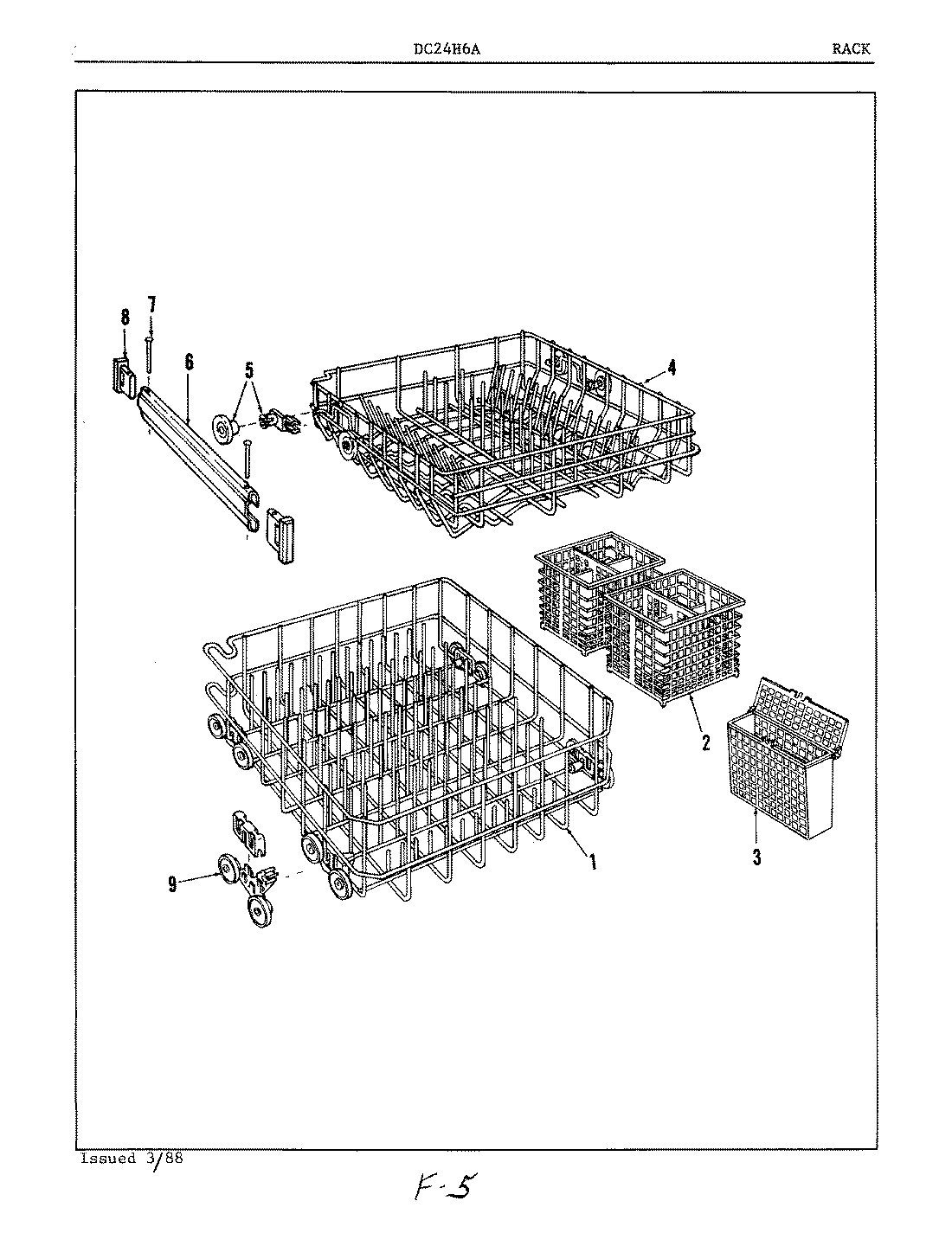

DC24H6A 06 – RACKS
Products
| Position | Product |
|---|---|
| 1 | LOWER RACK ASM |
| 2 | SLVRWARE BASKET |
| 3 | MAY 806760 |
| 4 | UPPER RACK ASM |
| 5 | RACK WHEEL ASM |
| 6 | MAY 809501 |
| 7 | SLIDE CAP PIN |
| 8 | MAY 809503 |
| 9 | WHEEL ASM |
