DC24J6A 04 – FRAME – Aparts

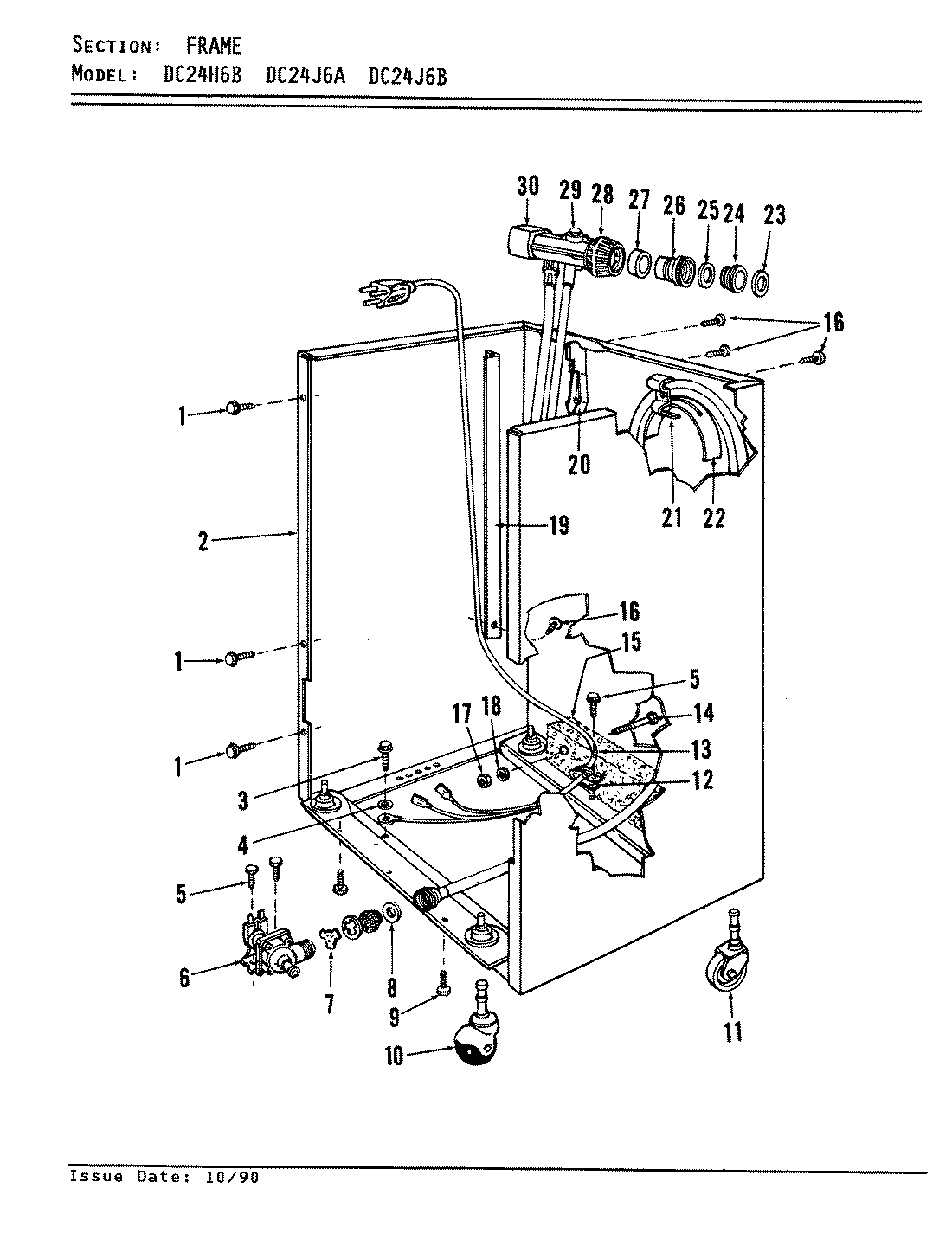

DC24J6A 04 – FRAME

Products

Position	Product
1	MAY 806593
2	WHITE FRAME
3	MAY 807951
4	MAY 807373
5	MAY 807950
6	INLET VALVE KIT
7	FLOW WASHER
8	HOSE WASHER
9	MAY 808658
10	CASTER
12	MAY 804426
13	POWER CORD
14	MAY 808612
15	MAY 808615
16	MAY 807501
17	MAY 808661
18	MAY 808613
19	HOSE GUARD
20	HOSE GUIDE
21	HOSE CLAMP
22	HOSE SUPPORT
23	MAY 803393
24	ADAPTOR
25	MAY 803392
26	AERATOR
27	U PACKING
28	COLLAR KIT
29	RELIEF KIT
30	HOSE ASM
