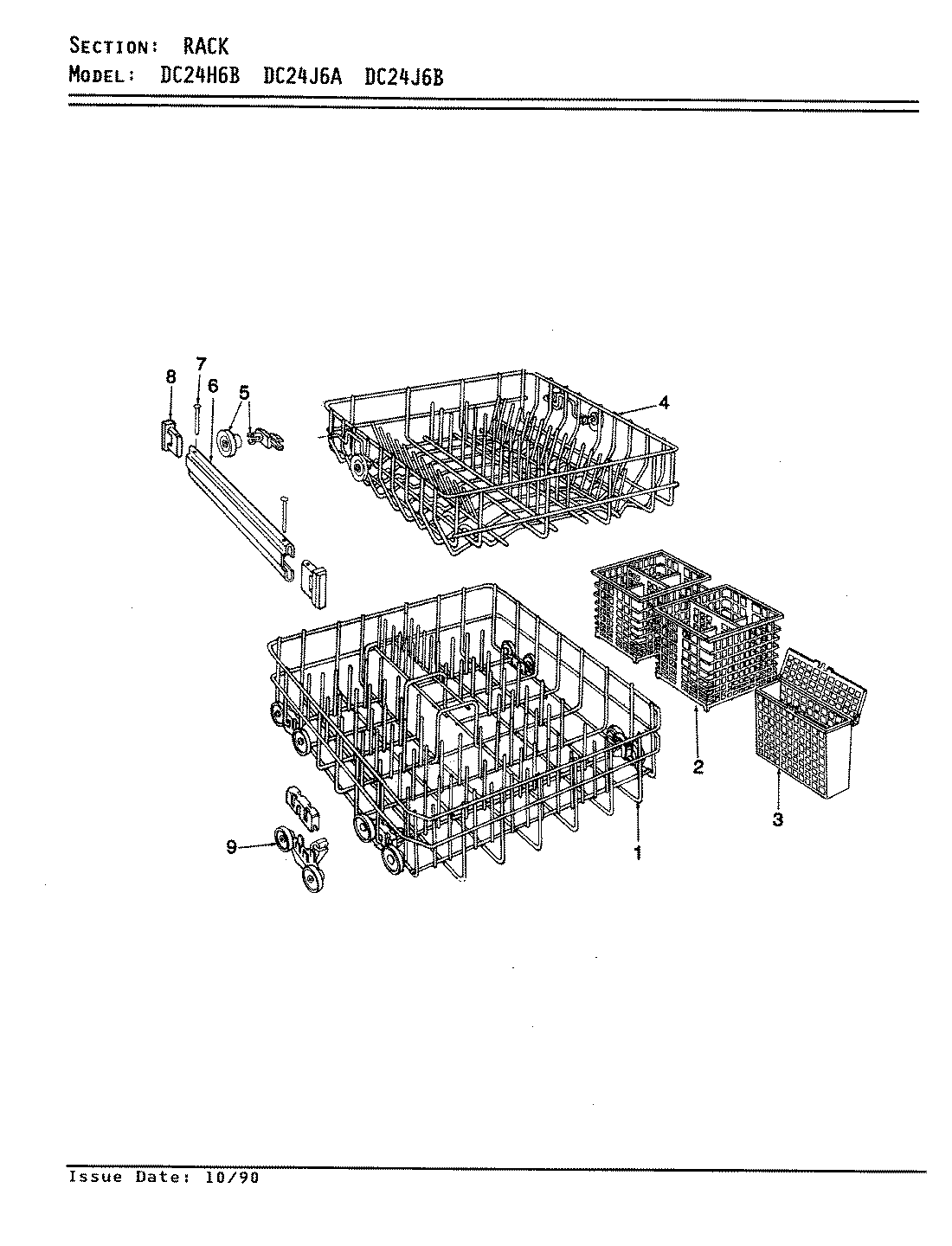

DC24J6A 06 – RACK
Products
| Position | Product |
|---|---|
| NI | MAY 809405 |
| 1 | LOWER RACK ASM |
| 2 | SLVRWARE BASKET |
| 3 | MAY 806760 |
| 4 | UPPER RACK ASM |
| 5 | RACK WHEEL ASM |
| 6 | MAY 809501 |
| 7 | SLIDE CAP PIN |
| 8 | SLIDE CAP |
| 9 | WHEEL ASM |
| 10 | MAY 809343 |
