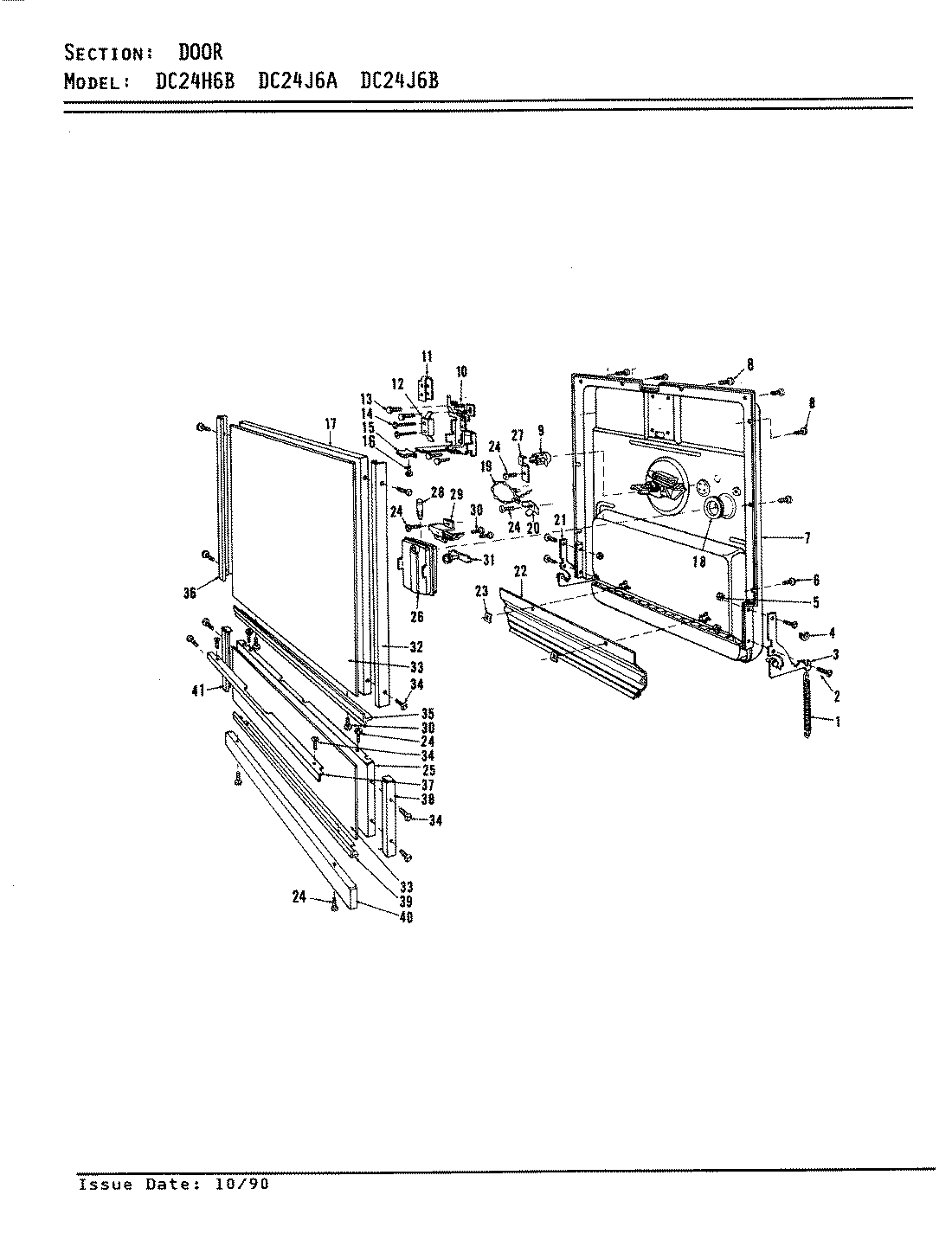

DC24J6B 03 – DOOR

DC24J6B 03 – DOOR

Written by

in

DC24J6B 03 – DOOR

Products

Position	Product
1	DOOR SPRING
2	MAY 803311
3	RH ARM
4	SPRING PAD
5	LOCKNUT
6	MAY 809055
7	DOOR ASSEMBLY
8	MAY 808749
9	THERMOSTAT
10	LATCH ASM
11	SWITCH COVER
12	MAY 807043
13	MAY 809029
14	MAY 808618
15	LATCH KNOB
16	MAY 809163
17	OUTER PANEL
18	GROMMET
19	MAY 809418
20	GROUND TERMINAL
21	LH ARM
22	MAY 809025
23	MAY 809026
24	MAY 808658
25	ACCESS PANEL
26	DISPENSER
27	RETAINER
28	MAY 03100003
29	BI-METAL ASM
30	MAY 807501
31	FILL PLUG
32	DOOR TRIM
33	ACC PNL INSERT
34	MAY 809752
35	DOOR TRIM
36	DOOR TRIM
37	ACC PNL TRIM
38	RH TRIM
39	ACCESS PNL TRIM
40	KICKPLATE
41	LH TRIM
