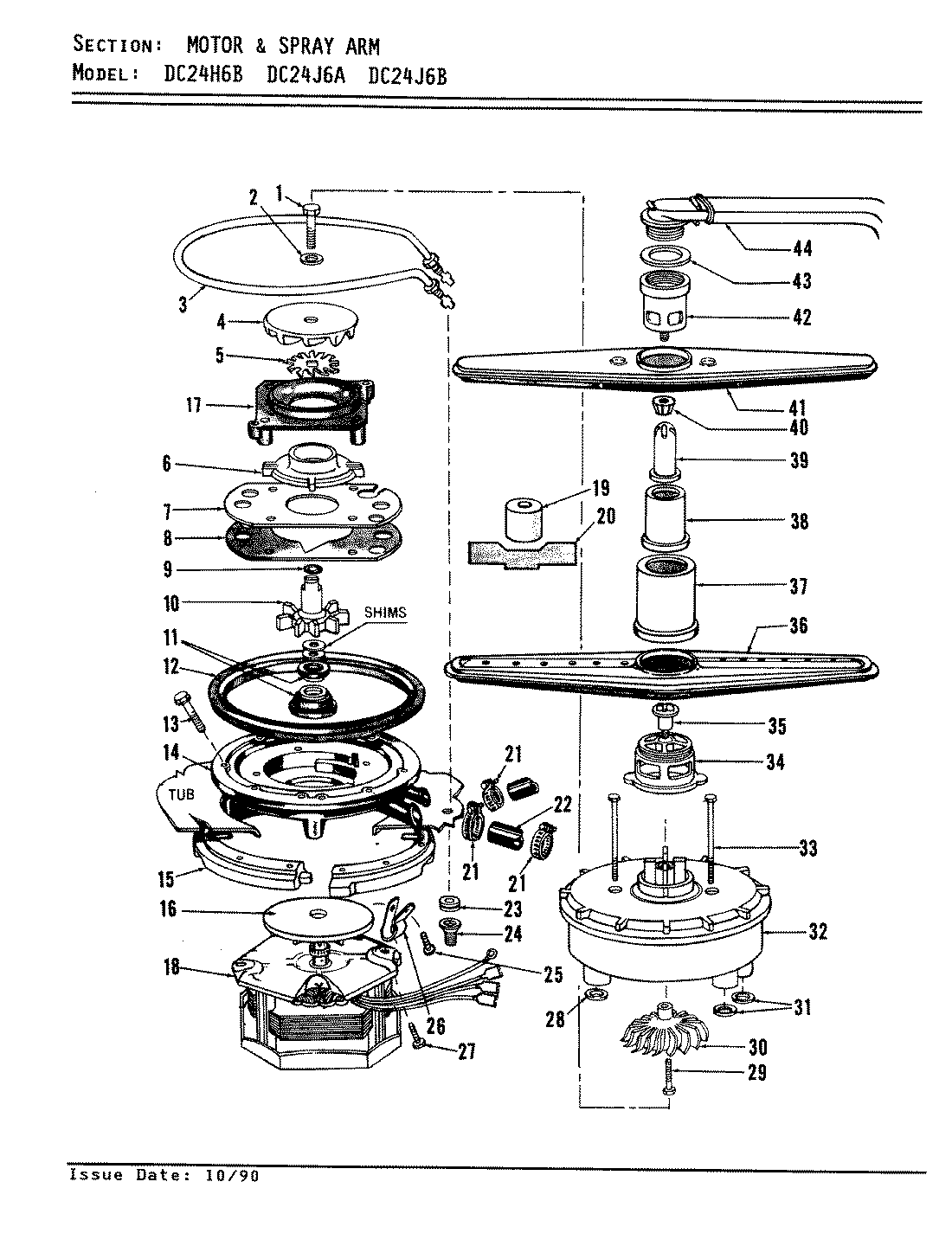

DC24J6B 04 – MOTOR & SPRAY ARM

Products

Position	Product
1	MAY 806353
3	HEATER
4	MAY Y03100007
5	MAY 0310008
5	MACERATOR BLADE
7	PUMP PLATE
8	PUMP GASKET
9	O RING
10	PUMP SEAL KIT
10	MAY Y03100019
11	GASKET
12	PUMP GASKET
13	MAY 807268
14	MAY Y03100021
15	CLAMP RING
16	WATERSHIELD ASM
18	MAY Y03100010
19	SEAL TOOL
21	MAY 808186
22	HOSE CONNECTOR
23	GROMMET
24	NUT
25	MAY 807270
26	WIRE CLAMP
27	MAY 809022
28	O RING
29	MAY 809073
30	MAY 809014
31	O RING
32	MAY Y809011
33	MAY 809012
35	SPRAY ARM BOLT
36	MAY 03100023
36	MAY Y03100022
37	TOWER BASE
38	MAY 808179
39	MAY 808180
40	MAY 808181
41	SPRAY ARM
42	MAY 808183
43	MAY 808184
44	ELBOW & TUBE
