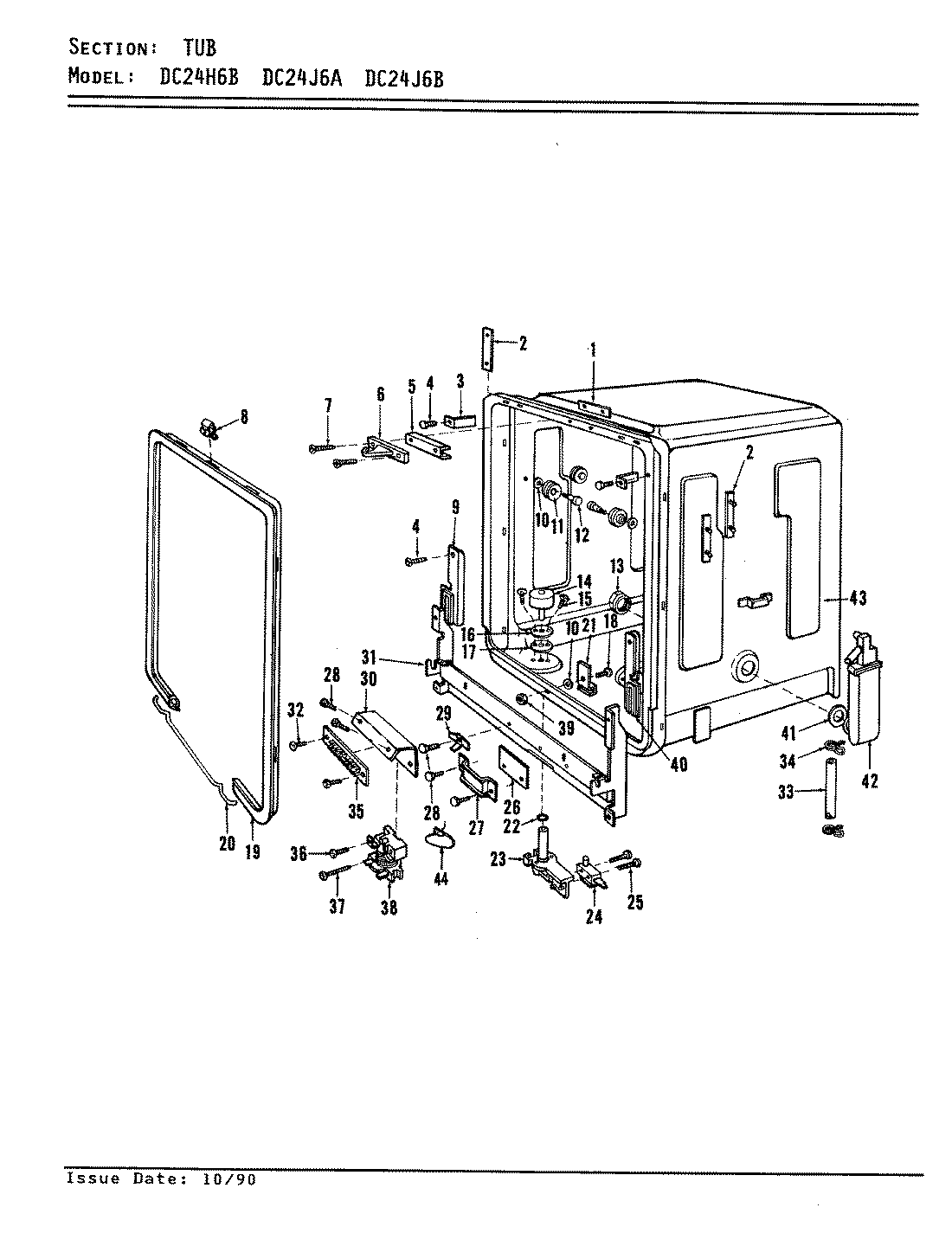

DC24J6B 07 – TUB

Products

Position	Product
1	TAPPING PLATE
2	TAPPING PLATE
3	MAY 807454
4	MAY 809446
5	SHIM
6	STRIKE
7	MAY 806890
8	CLIP KIT (TUB GASKET)
9	LH GUIDE
10	MAY 809044
11	MAY Y03100018
12	HARDWARE KIT
13	MAY 805669
14	MAY 809861
15	MAY 807268
16	PLATE, FLOAT TUBE
17	GASKET
18	MAY 803319
19	GASKET ASM
20	JUNCTION ROD
21	MAY 808115
22	O RING
23	MAY 809859
24	MAY 809863
25	MAY 809864
26	WIRE SHIELD
27	CLAMP
28	MAY 808658
29	GROUND TERMINAL
30	MAY 807849
31	HINGE ASM
32	MAY 807501
33	INLET TUBE
34	MAY 807813
35	MAY 807486
36	MAY 806593
37	MAY 807672
38	RELAY
39	MAY 803346
40	RH GUIDE
41	WASHER
42	MAY 806470
43	TUB & GASKET ASM
44	SEALANT
44	MAY 809418
