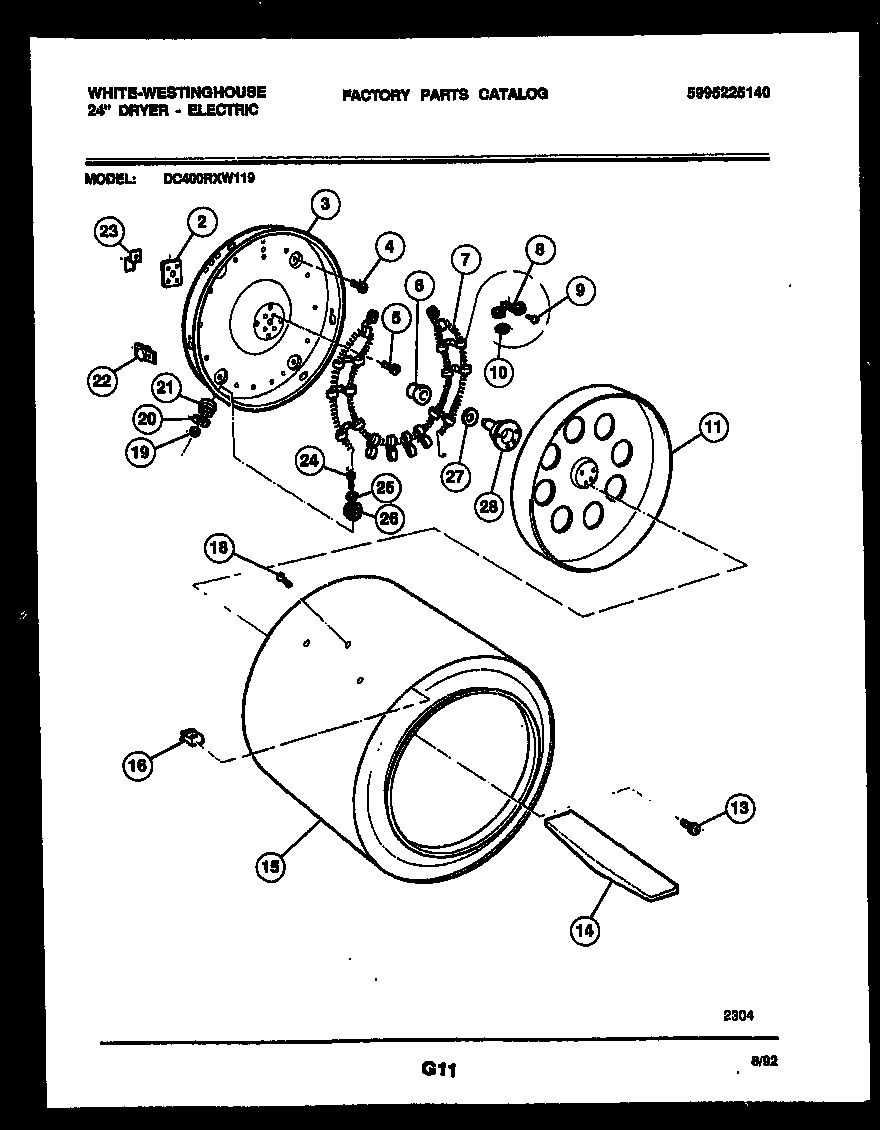

DC400RXD119 03 – HOUSING, HEATER AND DRUM

DC400RXD119 03 – HOUSING, HEATER AND DRUM

Written by

in

DC400RXD119 03 – HOUSING, HEATER AND DRUM

Products

PositionProduct
*66793WCI 5303276606
2WCI 5303276581
3WCI 5303276582
3AWCI 5303276583
4WCI 5303276569
5SCREW
6WCI 5303276584
7WCI 5303276585
8WCI 5303276586
10WCI 5303276589
11WCI 5303276590
13WCI 5303276591
14WCI 5303276592
15WCI 5303276593
16WCI 5303276594
18WCI 5303276563
20WCI 5303276596
21WCI 5303276598
22WCI 5303276599
22ASCREW (NON-ILLUSTRATED)
23WCI 5303276600
24WCI 5303276602
25WCI 5303276595
26WCI 5303276603
27WCI 5303276604
28WCI 5303276605
