DC5600 07 – LOADING DOOR & ACCESS PANEL – Aparts

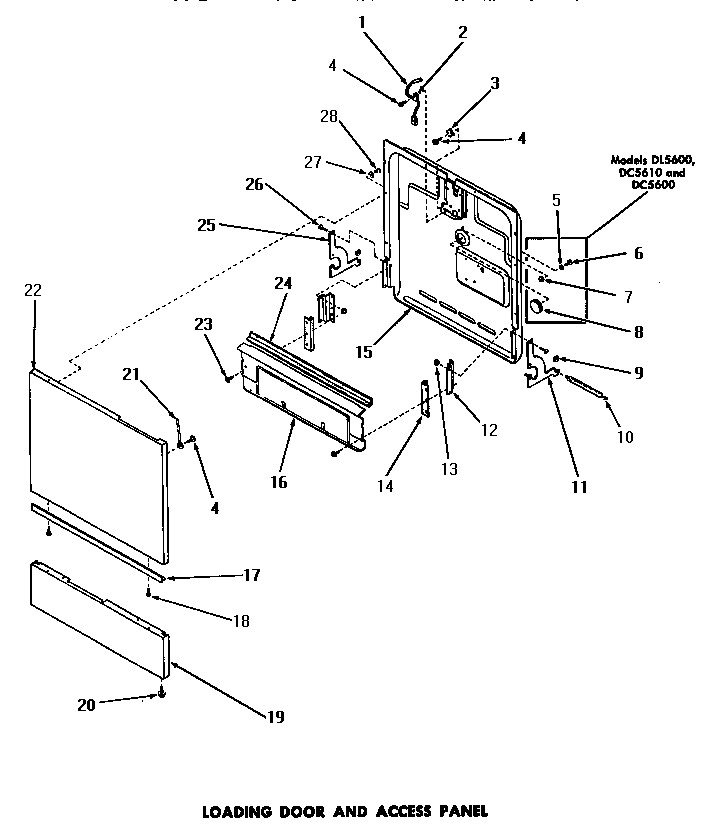

DC5600 07 – LOADING DOOR & ACCESS PANEL

Products

Position	Product
1	MAY M110079
2	MAY Y20308
4	WP90767 Whirlpool Screw
5	MAY M110145
6	MAY 70209
7	MAY Y20276
8	MAY M110078
9	MAY M110077
10	MAY M110075
11	MAY M110074
12	MAY M110076
13	MAY 23605
14	MAY M110070
15	MAY M110072
16	MAY M110069
17	MAY M110068
18	MAY 55087
19	MAY M110067W
19	MAY M110067H
19	MAY M110067A
20	MAY 21933
21	SEE NOTE GROUND WIRE, GREEN
22	MAY M110066W
22	MAY M110066H
22	MAY M110066A
23	MAY 23628
24	MAY M110071
25	MAY M110073
26	MAY Y80245
27	MAY 21147
28	MAY 65022
