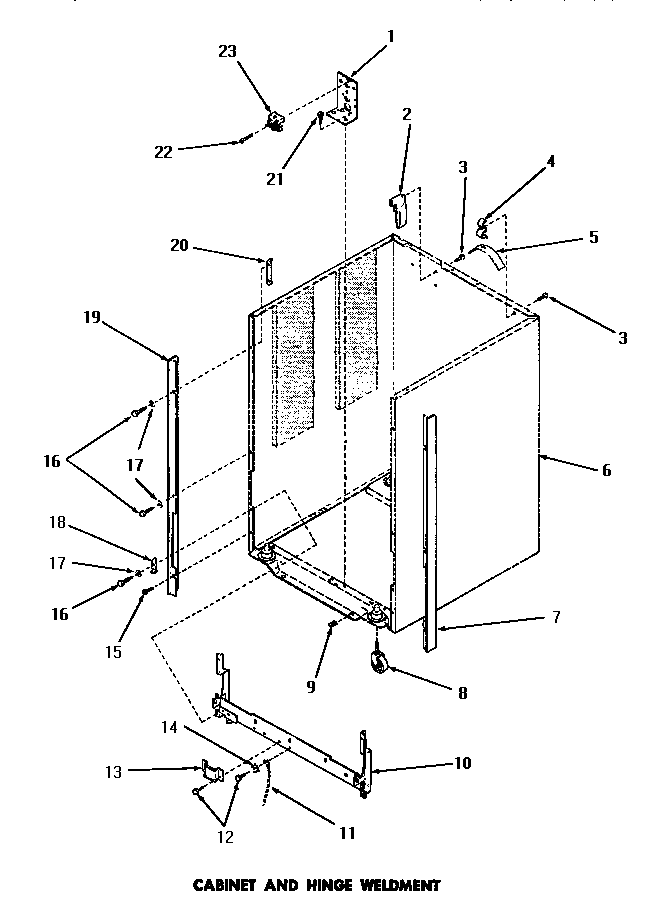

DC5610 03 – CABINET & HINGE WELDMENT

Products

PositionProduct
1MAY M110159
2MAY M110153
3MAY Y0055108
4MAY M110154
5MAY M110155
7MAY M110157
8MAY M110158
9MAY 21297
10MAY M110119
12WP90767 Whirlpool Screw
13MAY M110101
14SEE NOTE GROUND WIRE, GREEN
15WP3177991 Whirlpool Screw
16MAY 51924
17MAY 21643
18MAY M110160
19MAY M110156
20MAY M110058
21MAY 25723
22MAY M110139
23MAY M110011
