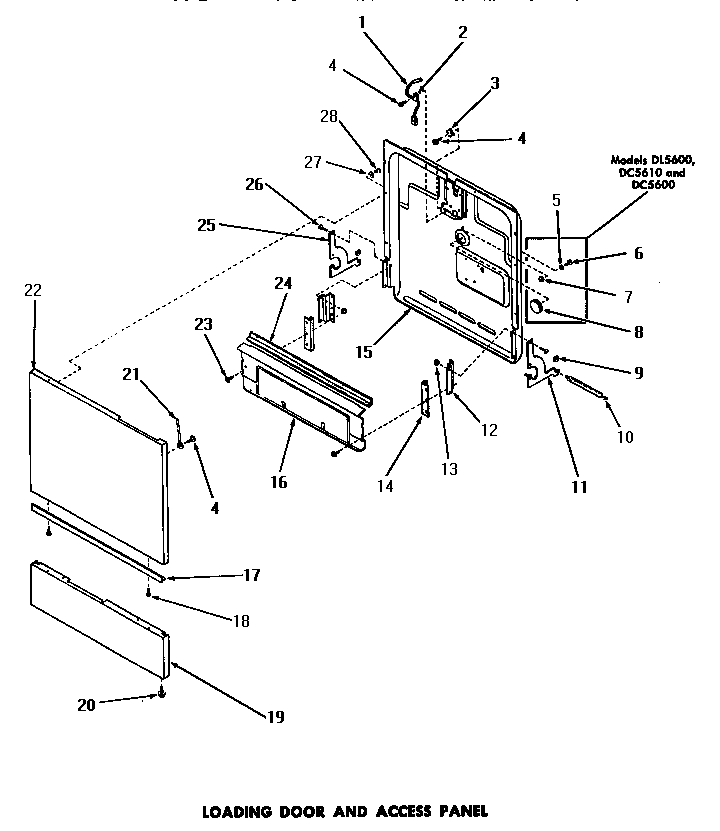

DC5610 08 – LOADING DOOR & ACCESS PANEL
Written by
in
DC5610 08 – LOADING DOOR & ACCESS PANEL
Products
Position
Product
1
MAY M110079
2
MAY Y20308
4
WP90767 Whirlpool Screw
5
MAY M110145
6
MAY 70209
7
MAY Y20276
8
MAY M110078
9
MAY M110077
10
MAY M110075
11
MAY M110074
12
MAY M110076
13
MAY 23605
14
MAY M110070
15
MAY M110072
16
MAY M110069
17
MAY M110068
18
MAY 55087
19
MAY M110120W
19
MAY M110120A
19
MAY M110120H
20
MAY 21933
21
SEE NOTE GROUND WIRE, GREEN
22
MAY M110066W
22
MAY M110066H
22
MAY M110066A
23
MAY 23628
24
MAY M110071
25
MAY M110073
26
MAY Y80245
27
MAY 21147
28
MAY 65022
←
