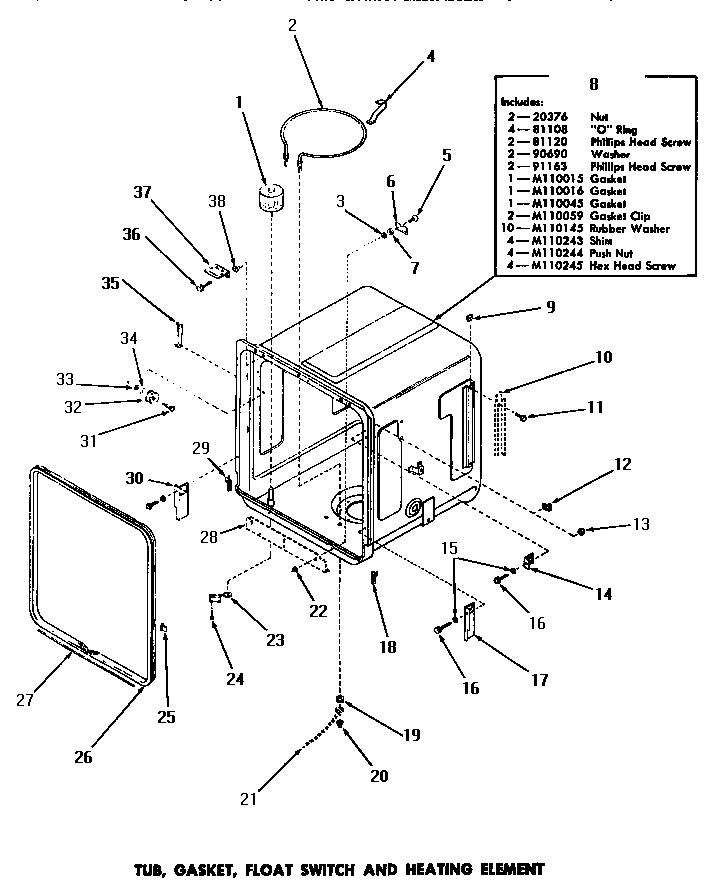

DC5700 14 – TUB, GASKET, FLOAT SWITCH & HEATING ELEM

DC5700 14 – TUB, GASKET, FLOAT SWITCH & HEATING ELEM

Written by

in

DC5700 14 – TUB, GASKET, FLOAT SWITCH & HEATING ELEM

Products

PositionProduct
1MAY M110048
2MAY M110027
4MAY M110043
5MAY 81120
6MAY M110059
8MAY M110047
9MAY Y81061
11MAY 02422
13MAY 03673
14MAY M110055
15MAY 21643
16MAY 51924
17MAY M110240
18MAY M110053
19MAY M110050
20MAY M110051
22MAY 20376
23MAY M110049
24MAY M110147
25MAY M110054
26MAY M110045
27MAY M110046
28SEE NOTE GROUND WIRE, GREEN
29MAY M110052
30MAY M110239
31MAY M110056
32MAY M110057
33MAY M110145
34MAY 90690
35MAY M110058
36MAY M110245
37MAY M110060
38MAY M110244
