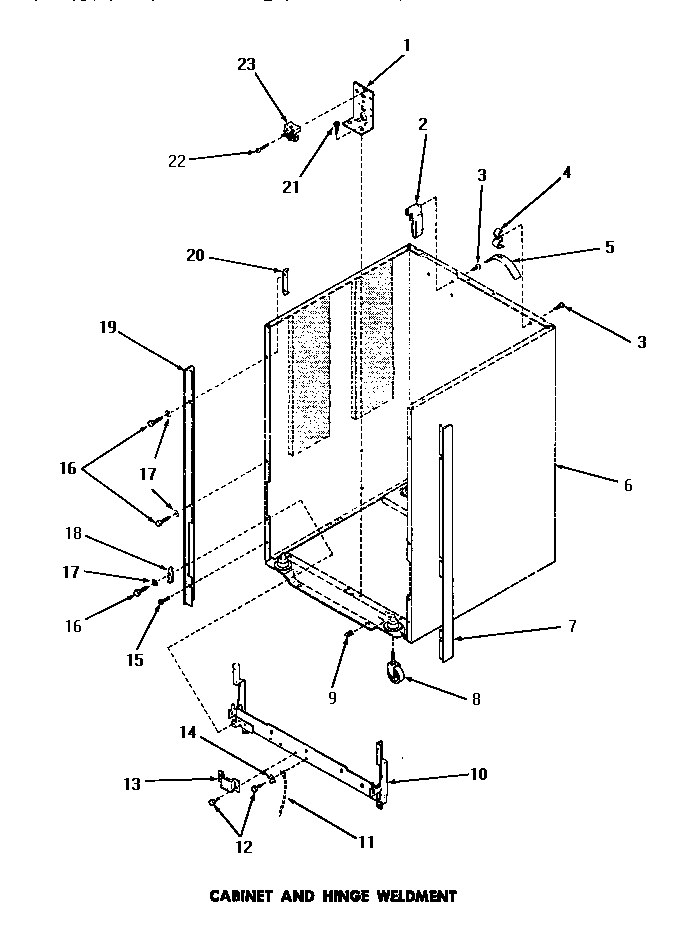

DC5710 03 – CABINET & HINGE WELDMENT

DC5710 03 – CABINET & HINGE WELDMENT

Written by

in

DC5710 03 – CABINET & HINGE WELDMENT

Products

Position	Product
1	MAY M110159
2	MAY M110153
3	MAY Y0055108
4	MAY M110154
5	MAY M110155
7	MAY M110157
8	MAY M110158
9	MAY 21297
10	MAY M110119
12	WP90767 Whirlpool Screw
13	MAY M110101
14	SEE NOTE GROUND WIRE, GREEN
15	WP3177991 Whirlpool Screw
16	MAY 51924
17	MAY 21643
18	MAY M110160
19	MAY M110156
20	MAY M110058
21	MAY 25723
22	MAY M110139
23	MAY M110011
