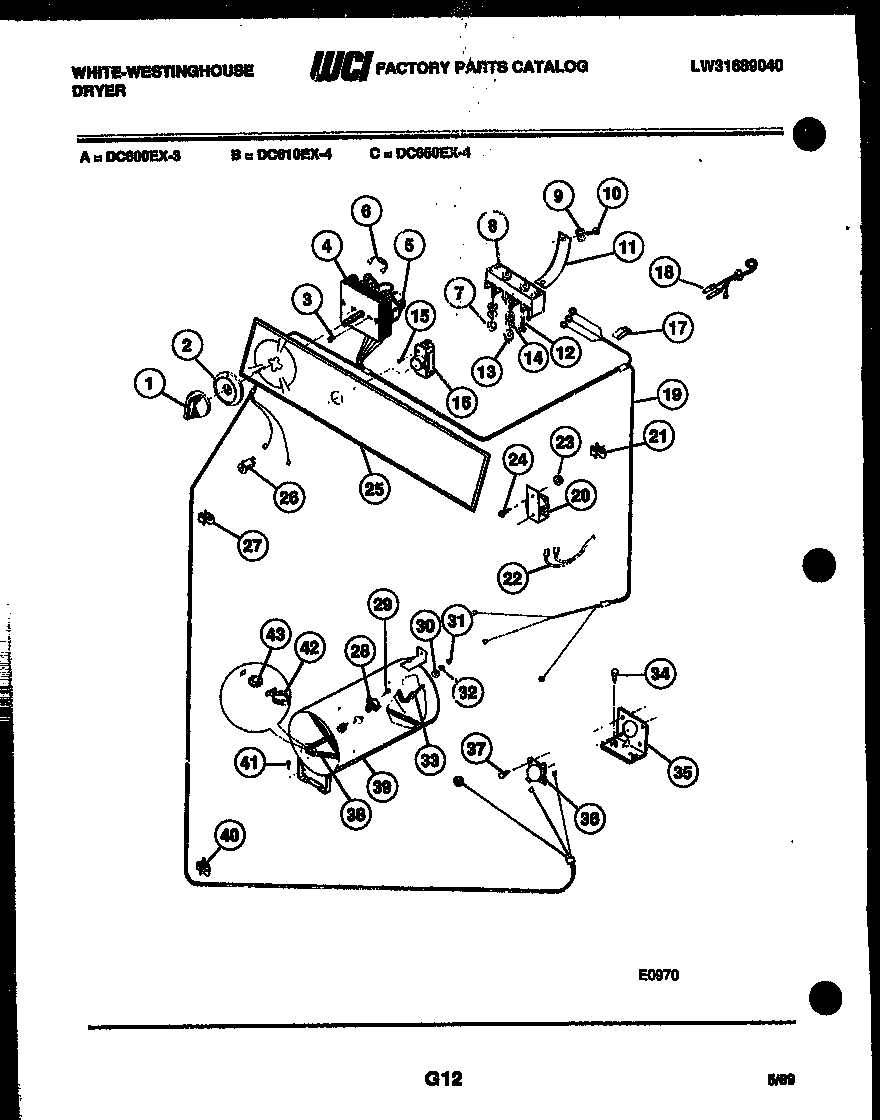

DC610EXD4 05 – CONSOLE AND CONTROL PARTS

Products

Position	Product
*20512	WCI FA00002751
*20512	WCI F132264000
*20512	HEATER THERMOSTAT
1	TIMER-KNOB
2	WCI Q000199071
3	WCI F000060796
4	WCI Q000199074
5	WCI F079459026
5A	WCI Q000199075
7	WCI F000073339
8	5304409888 Frigidaire Oven Terminal Block with Hardware
9	WCI F000078101
10	134154100 Frigidaire Screw 10-32 x 0.375 Co
11	WCI F0076793-1
12	WCI F000134584
13	WCI F000073340
14	WCI F000073329
15	WCI F000137505
16	WCI F000135006
17	WCI F000131169
18	SERVICE CORD
18A	WCI F000079865
19	WCI Q000199069
24	131243800 Frigidaire Screw
25	WCI F137956000
26	WCI F130791000
28	THERMOSTAT-SAFETY
30	WCI F000078254
31	WCI F00073340
32	WCI F000063602
33	WCI F000078253
34	WCI F000130439
35	WCI F000078680
36	THERMOSTAT CONTROL
37	5303015671 Frigidaire Bracket Termination Screw
38	WCI F134266000
39	WCI F0130228-2
40	WCI F000131347
42	WCI F000131734
43	WCI F000131735
