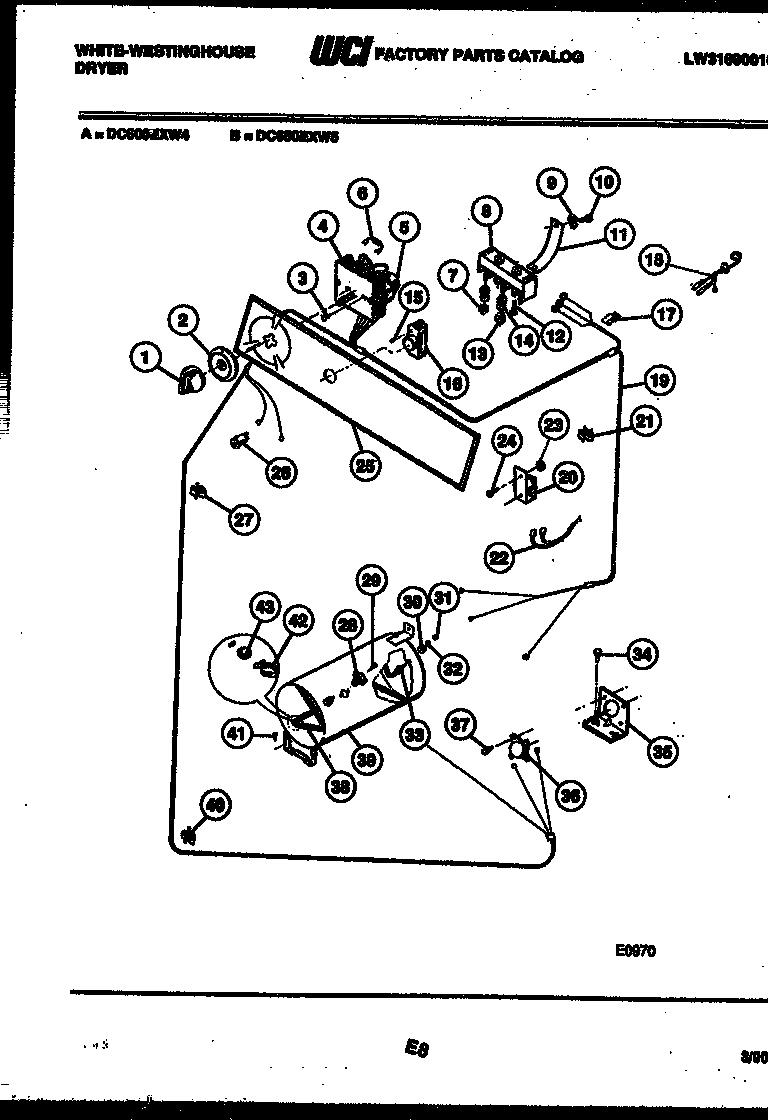

DC650EXW5 05 – CONSOLE AND CONTROL PARTS

Products

Position	Product
*26184	WCI FA00002751
*26184	HEATER THERMOSTAT
1	TIMER-KNOB
2	WCI Q000199071
3	WCI F000060796
4	WCI Q000199073
5A	WCI Q000199075
5	WCI F079459-21
6B	RESISTOR
6	WCI F065111011
6A	WCI F065111017
7	WCI F000073339
8	5304409888 Frigidaire Oven Terminal Block with Hardware
9	WCI F000078101
10	134154100 Frigidaire Screw 10-32 x 0.375 Co
11	WCI F0076793-1
12	WCI F000134584
13	WCI F000073340
14	WCI F000073329
15	WCI F000137505
16	SWITCH - PUSH TO START
17	WCI F000131169
18A	WCI F000079865
18	5308819002 Frigidaire Dryer 30 Amp 4'3" Cord
19	WCI 3205907
20	WCI F000133242
22	WCI F000139152
24	131243800 Frigidaire Screw
25	WCI F137951000
26	WCI F130791000
28	THERMOSTAT-SAFETY
30	WCI F000078254
31	WCI F00073340
32	WCI F000063602
33	WCI F000078253
34	WCI F000130439
35	WCI F000078680
36	THERMOSTAT CONTROL
37	5303015671 Frigidaire Bracket Termination Screw
38	WCI F134266100
39	WCI 08027625
40	WCI F000131347
42	WCI F000131734
43	WCI F000131735
