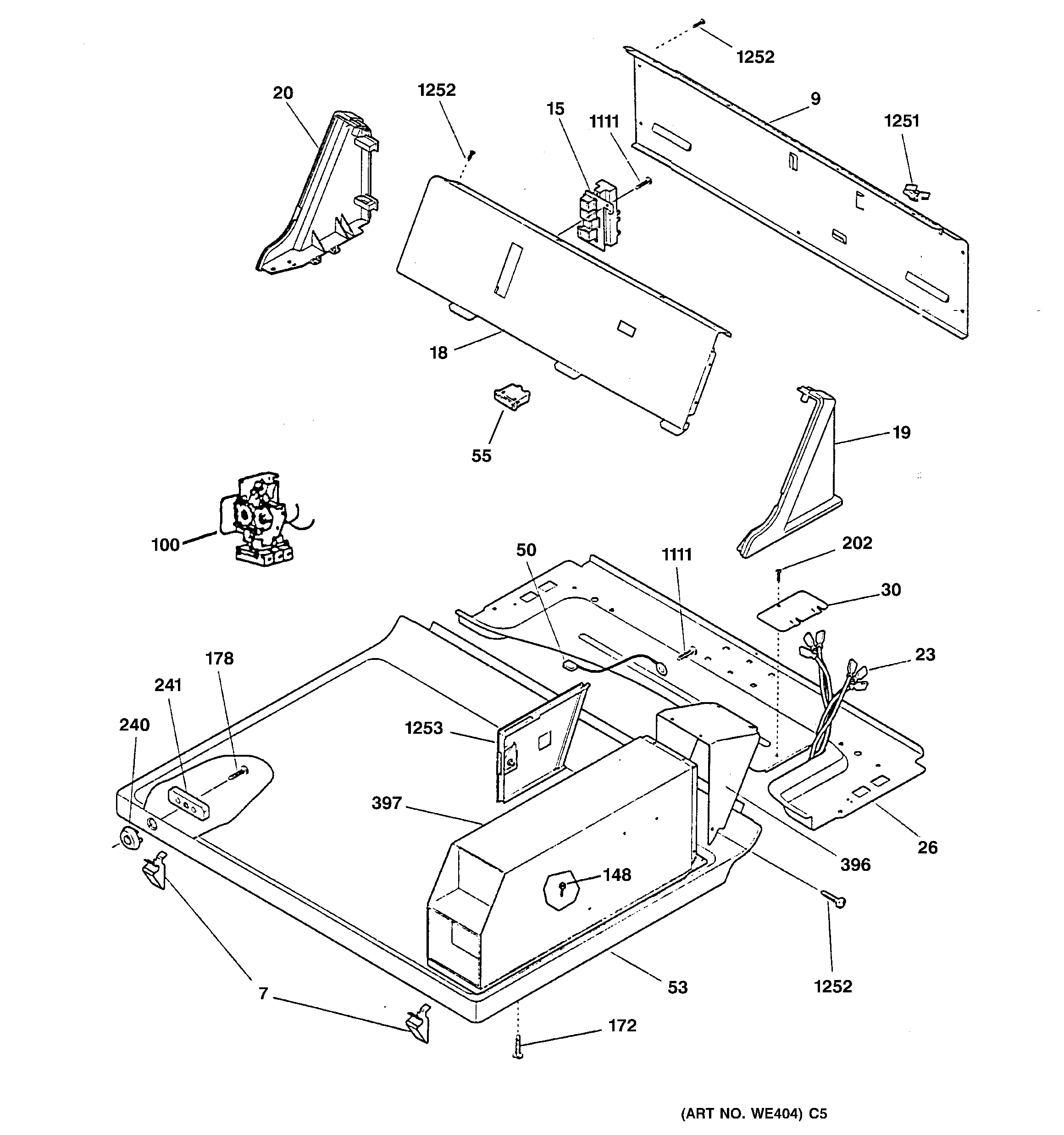

DCB330EB0KC CONTROLS & TOP PANEL – Aparts

DCB330EB0KC CONTROLS & TOP PANEL

Products

Position	Product
7	CLIP-TOP FRONT/PANEL
9	GEN WE20X10010
15	GEN WE04X10047
18	GEN WE19X10036
19	GEN WE19X10065
20	GEN WE19X10064
23	GEN WE08X10040
26	GEN WE19X10035
30	GEN WE01X10034
50	GEN WE08X10006
53	PANEL-TOP CC
55	GEN WE04X10050
100	GEN WE04X0886
148	WB1X536 GE Oven Screw
172	GEN WE02X10025
178	GEN WE02X10026
202	SCREW PANEL TO EVAP
240	GEN WE01X10052
241	GEN WE01X10053
396	ADAPTER-COIN BOX CC
397	ASMY-COIN BOX CC
1111	GEN WE02X10050
1251	GEN WE02X10027
1252	GEN WE02X10028
1253	ASMY-DOOR LATCH CC
