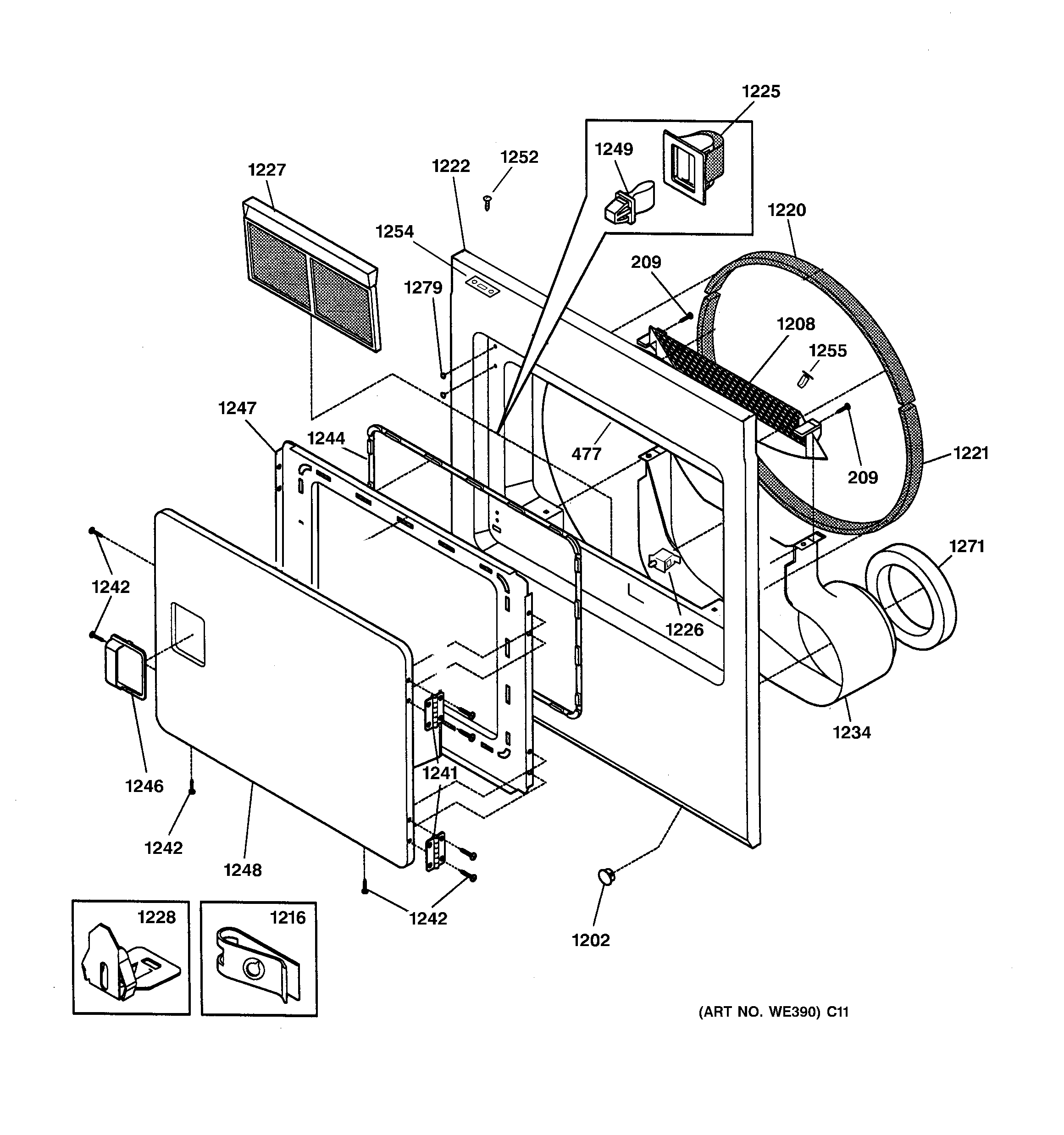

DCB330EB3KC FRONT PANEL & DOOR
Products
| Position | Product |
|---|---|
| 209 | SCREW-LOCK 10-16X.50 |
| 477 | WE01X10137 GE Light Plug |
| 1202 | GEN WE01X10088 |
| 1208 | GEN WE18X10005 |
| 1216 | GEN WE02X10010 |
| 1220 | GEN WE09X10013 |
| 1221 | GEN WE09X10014 |
| 1222 | GEN WE20X10049 |
| 1225 | CATCH DOOR |
| 1226 | GEN WE04X10034 |
| 1227 | GEN WE18X10002 |
| 1228 | GEN WE02X0361 |
| 1234 | GEN WE14X10022 |
| 1241 | GEN WE01X10012 |
| 1242 | SCREW, 8-18 AB X .44 |
| 1244 | GASKET DOOR |
| 1246 | GEN WE01X10089 |
| 1247 | PANEL-INNER DOOR |
| 1248 | GEN WE10X10012 |
| 1249 | STRIKE DOOR |
| 1252 | GEN WE02X10028 |
| 1254 | GEN WE01X10055 |
| 1255 | GEN WE01X10056 |
| 1271 | GEN WE09X10010 |
| 1279 | GEN WE01X10170 |
