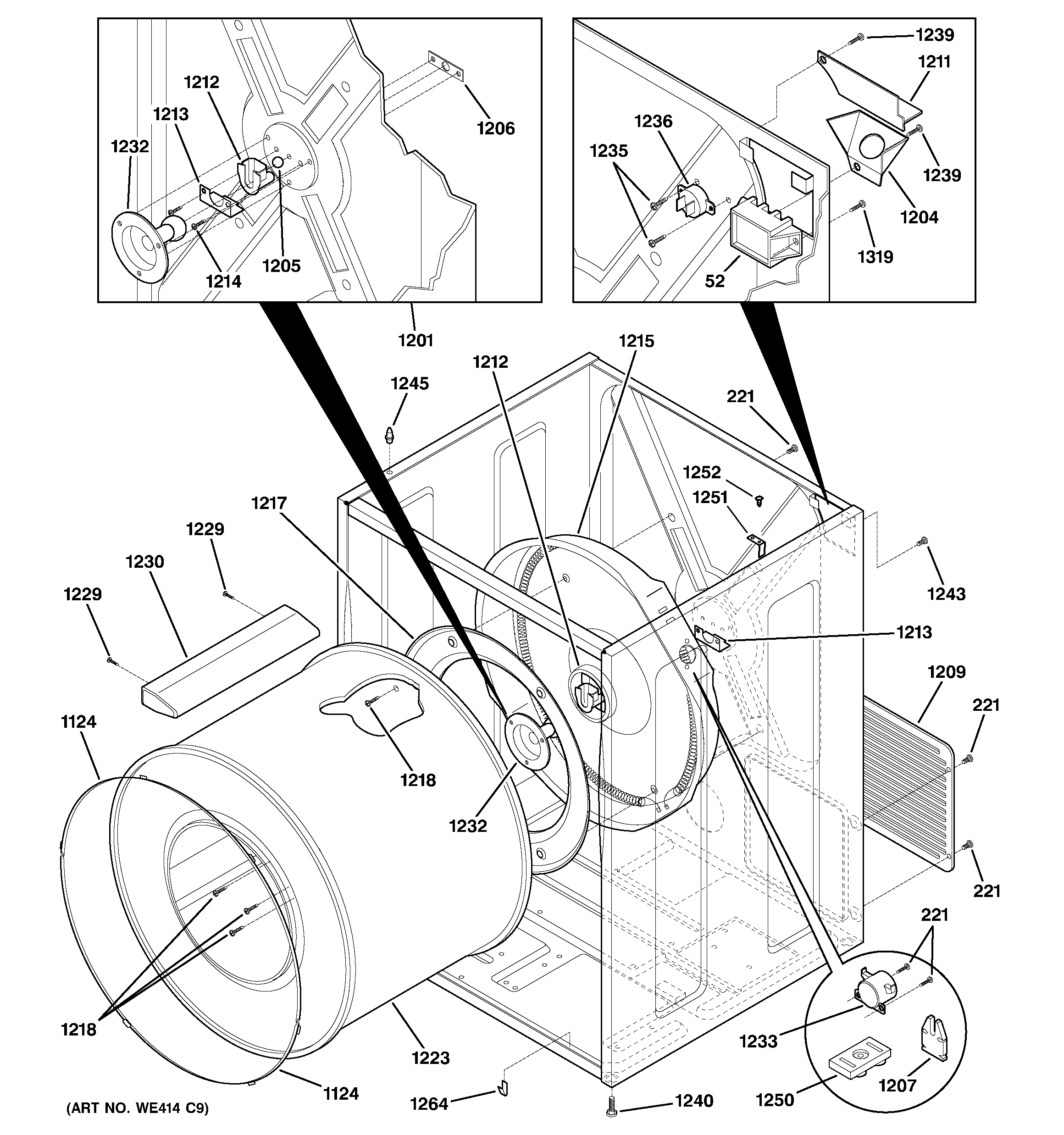

DCB330EB3WC CABINET & DRUM

Products

Position	Product
52	GEN WE04X10095
221	SCREW PAN HD.8-18ABX.375
1124	WE03X10007 GE Bearing
1201	WE25X10001 GE Rear Bearing Kit
1204	BRACKET CORD
1205	GEN WE01X1152
1206	CLIP BALL
1207	INSULATOR, HEATER HSNG
1209	PANEL-ACCESS
1211	GEN WE20X10005
1212	GEN WE03X10002
1213	BRACKET BEARING
1214	GEN WE02X10005
1215	HEATER-HOUSING ASS'Y
1217	BAFFLE-HEATER
1218	SCREW 10-16 X.375
1223	GEN WE21X10013
1229	GEN WE02X10007
1230	GEN WE21X0069
1232	WE13X10011 GE Washer Rear Bearing Shaft Support
1233	WE4X757 GE Dryer High Limit Safety Thermostat
1235	SCREW 6-20 X .230
1236	WE04X10094 GE Thermal Limiter
1239	WE02X10011 GE Screw
1240	WR2X9485 GE Refrigerator Foot Adjustment
1243	GEN WE02X10057
1245	GEN WE01X10035
1250	BLOCK TERM HEATER HSG
1251	GEN WE02X10027
1252	GEN WE02X10028
1264	CLIP CABINET BTM
1319	SCREW 10-16 X .75
