DCCB330ED0KC CONTROL PANEL & COIN BOX ASSEMBLY – Aparts

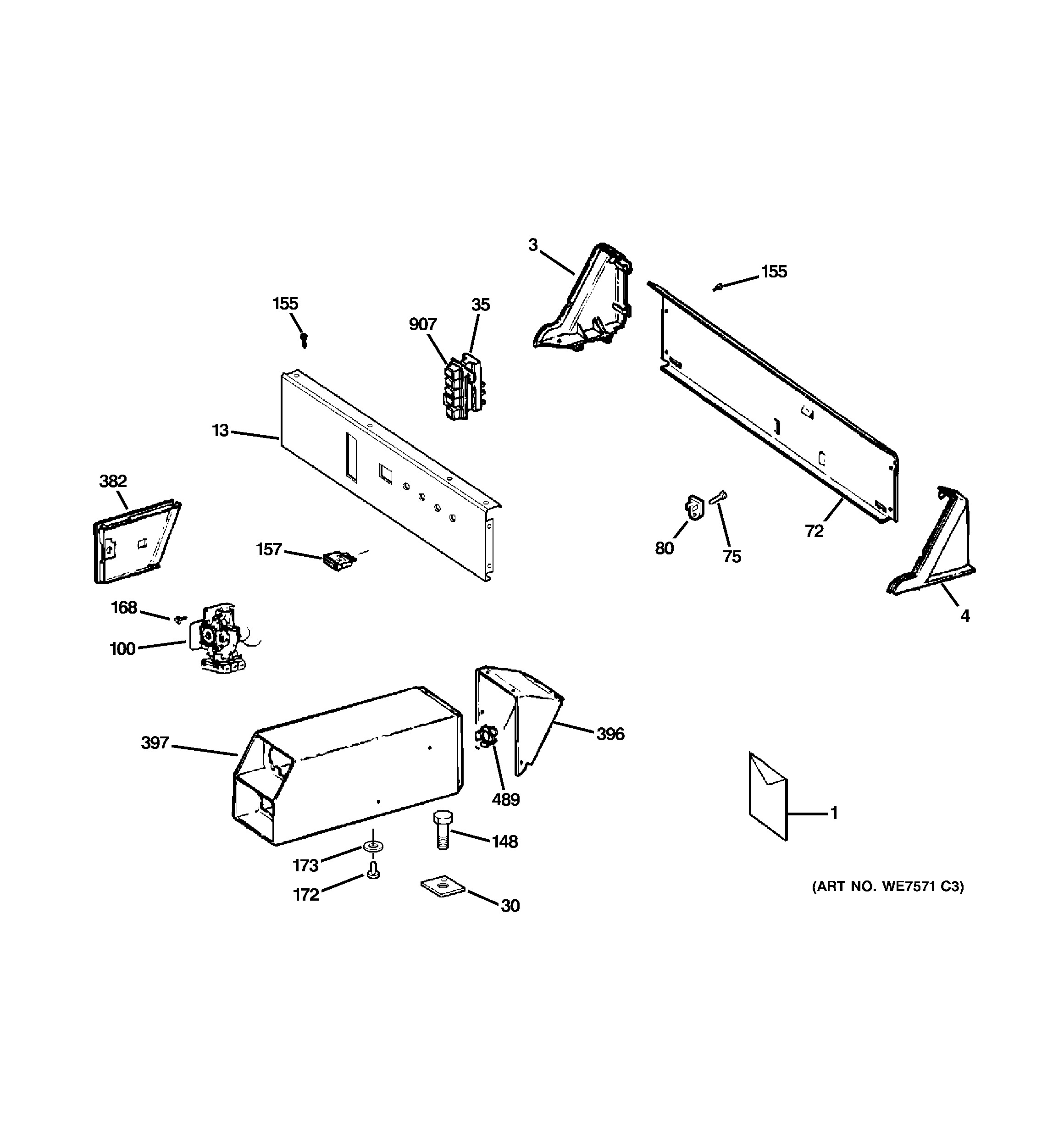

DCCB330ED0KC CONTROL PANEL & COIN BOX ASSEMBLY

Products

Position	Product
1	GEN 31-16086
1	GEN 31-16073
1	GEN 49-90162
3	GEN WE19M938
4	GEN WE19M939
13	GEN WE19M1361
30	PLATE SECUR COIN BOX
35	WE4M210 GE Push Button Switch
72	GEN WE20X811
75	WE2M173 GE Screw
80	RESISTOR (3500OHM) BEIGE
100	GEN WH65M185
148	GEN WE2M183
155	GEN WH02X1233
157	GEN WE1X950
172	GEN WH02X0735
173	WASHER LOCK
382	GEN WH42X10399
396	GEN WE1M534
397	GEN WE1M535
489	GEN WH01X2572
907	GEN WD09X0206
