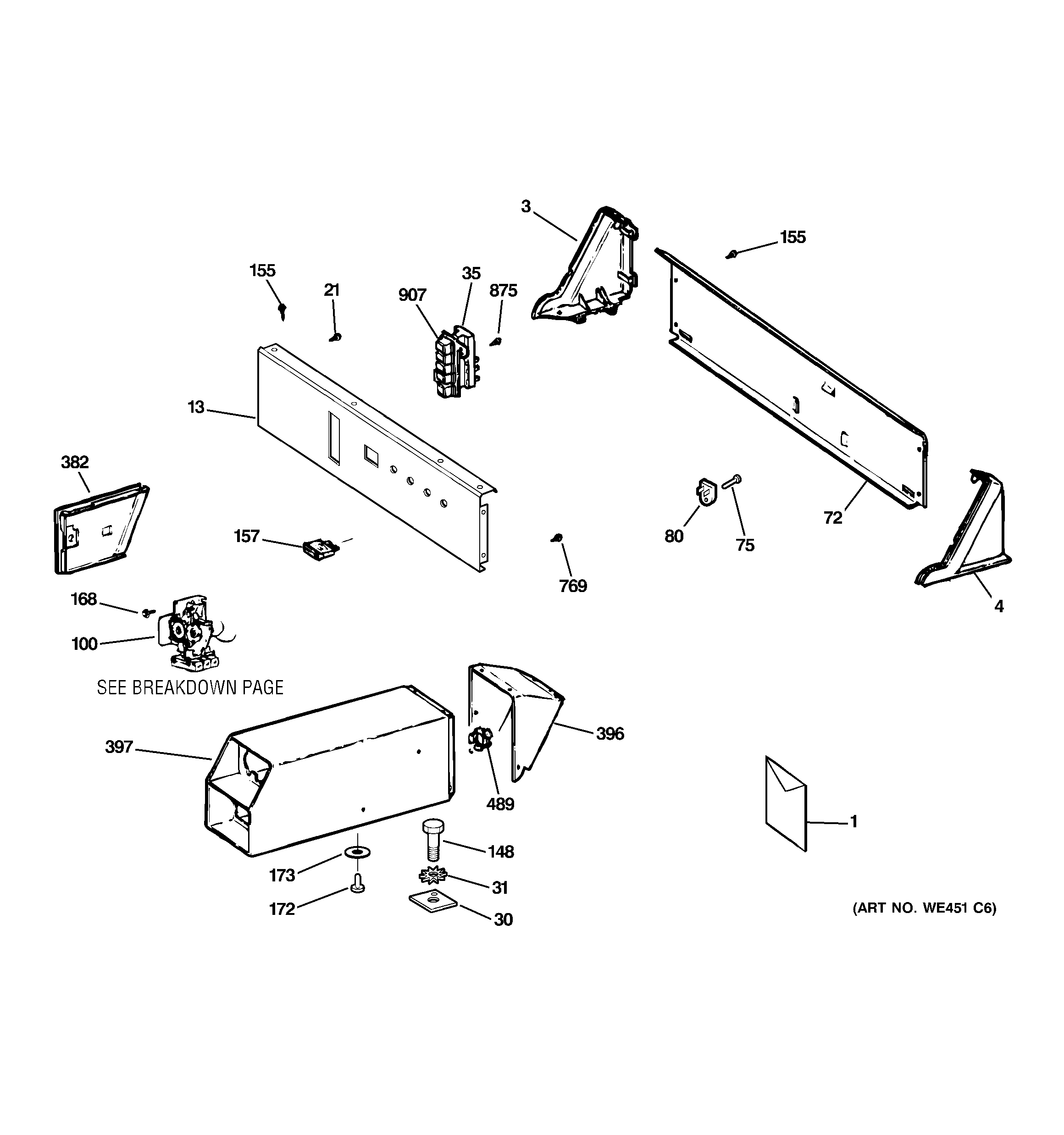

DCCB330EG4WC CONTROL PANEL & COIN BOX ASSEMBLY

Products

Position	Product
1	GEN 31-16086
1	GEN 31-16073
1	GEN 49-90162
3	END CAP LH BK
4	END CAP RH BK
13	SWITCH TRIM ASM.
21	WZ4X241D GE Screw Package
30	PLATE SECUR COIN BOX
31	WD2X322 GE Dishwasher Screw 8-18 x 7/8
35	WE4M210 GE Push Button Switch
72	GEN WE20M343
75	WE2M173 GE Screw
80	RESISTOR (3500OHM) BEIGE
100	GEN WH65M185
148	GEN WE2M183
155	GEN WH02X1233
157	GEN WE1X950
168	GEN WZ02X0468
172	GEN WH02X0735
173	WASHER LOCK
382	GEN WH42X2507
396	GEN WH42X2506
397	GEN WE20X821
489	GEN WH01X2572
769	WB1X500D GE Oven Screw Package
875	WD2M101 GE Dishwasher Screw
907	GEN WD09X0206
