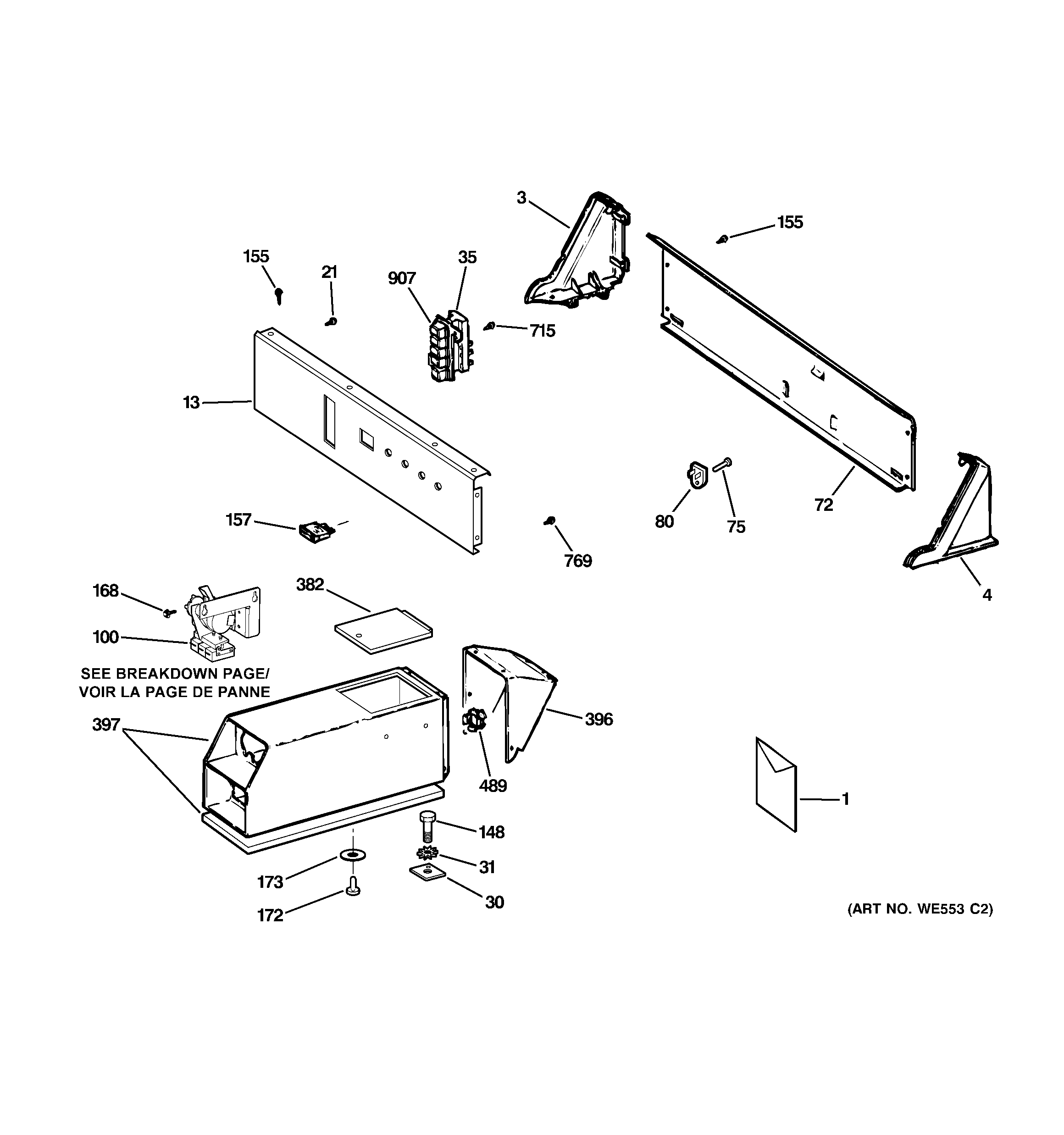

DCCB330EJ1WC CONTROL PANEL & COIN BOX ASSEMBLY

DCCB330EJ1WC CONTROL PANEL & COIN BOX ASSEMBLY

Written by

in

DCCB330EJ1WC CONTROL PANEL & COIN BOX ASSEMBLY

Products

PositionProduct
1GEN 31-16220
1GEN 49-90162
1GEN 31-16086
3END CAP LH BK
4END CAP RH BK
13SWITCH TRIM ASM.
21WZ4X241D GE Screw Package
30PLATE SECUR COIN BOX
31WD2X322 GE Dishwasher Screw 8-18 x 7/8
35WE4M210 GE Push Button Switch
72GEN WE20M343
75GEN WE2M308
75WE2M173 GE Screw
80RESISTOR (3500OHM) BEIGE
100TIMER & BRACKET ASM.
148GEN WE2M183
155GEN WH02X1233
157GEN WE1X950
168GEN WZ02X0468
172GEN WH02X0735
173WASHER LOCK
382DOOR AND LATCH ASM
396ADAPTER METER CASE
397METER CASE ASM.
489GEN WH01X2572
715WD2M101 GE Dishwasher Screw
769WB1X500D GE Oven Screw Package
907GEN WD09X0206
