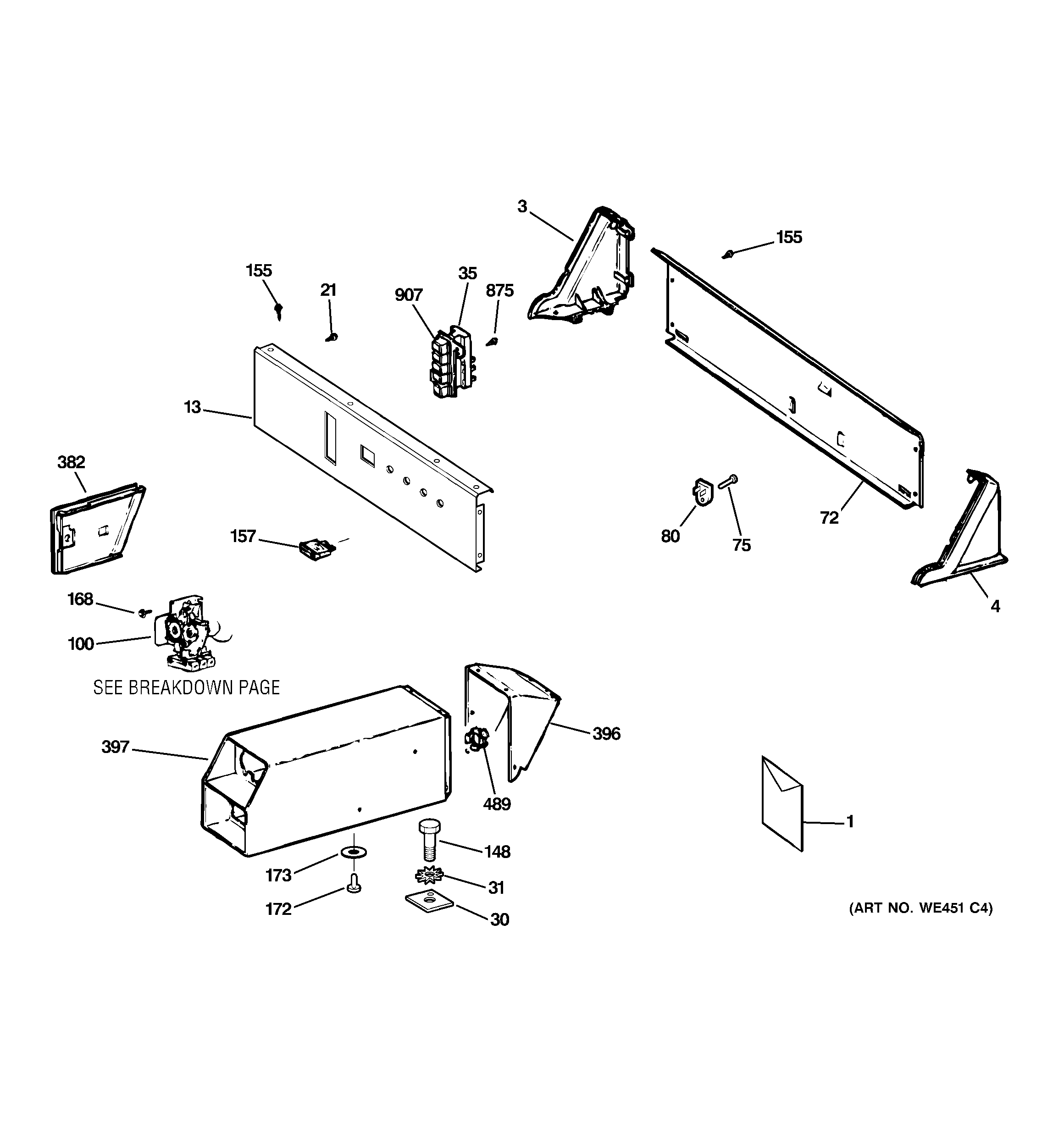

DCCB330GD1KC CONTROL PANEL & COIN BOX ASSEMBLY

DCCB330GD1KC CONTROL PANEL & COIN BOX ASSEMBLY

Written by

in

DCCB330GD1KC CONTROL PANEL & COIN BOX ASSEMBLY

Products

PositionProduct
1GEN 31-16087
1GEN 31-16074
3GEN WE19M938
4GEN WE19M939
13GEN WE19M1361
21WZ4X241D GE Screw Package
30PLATE SECUR COIN BOX
31WD2X322 GE Dishwasher Screw 8-18 x 7/8
35WE4M210 GE Push Button Switch
72GEN WE20X811
75WE2M173 GE Screw
80GEN WE4M308
100GEN WH65M185
148GEN WE2M183
155GEN WH02X1233
157GEN WE1X950
168GEN WZ02X0468
172GEN WH02X0735
173WASHER LOCK
382GEN WH42X10399
396GEN WE1M534
397GEN WE1M535
489GEN WH01X2572
875WD2M101 GE Dishwasher Screw
907GEN WD09X0206
