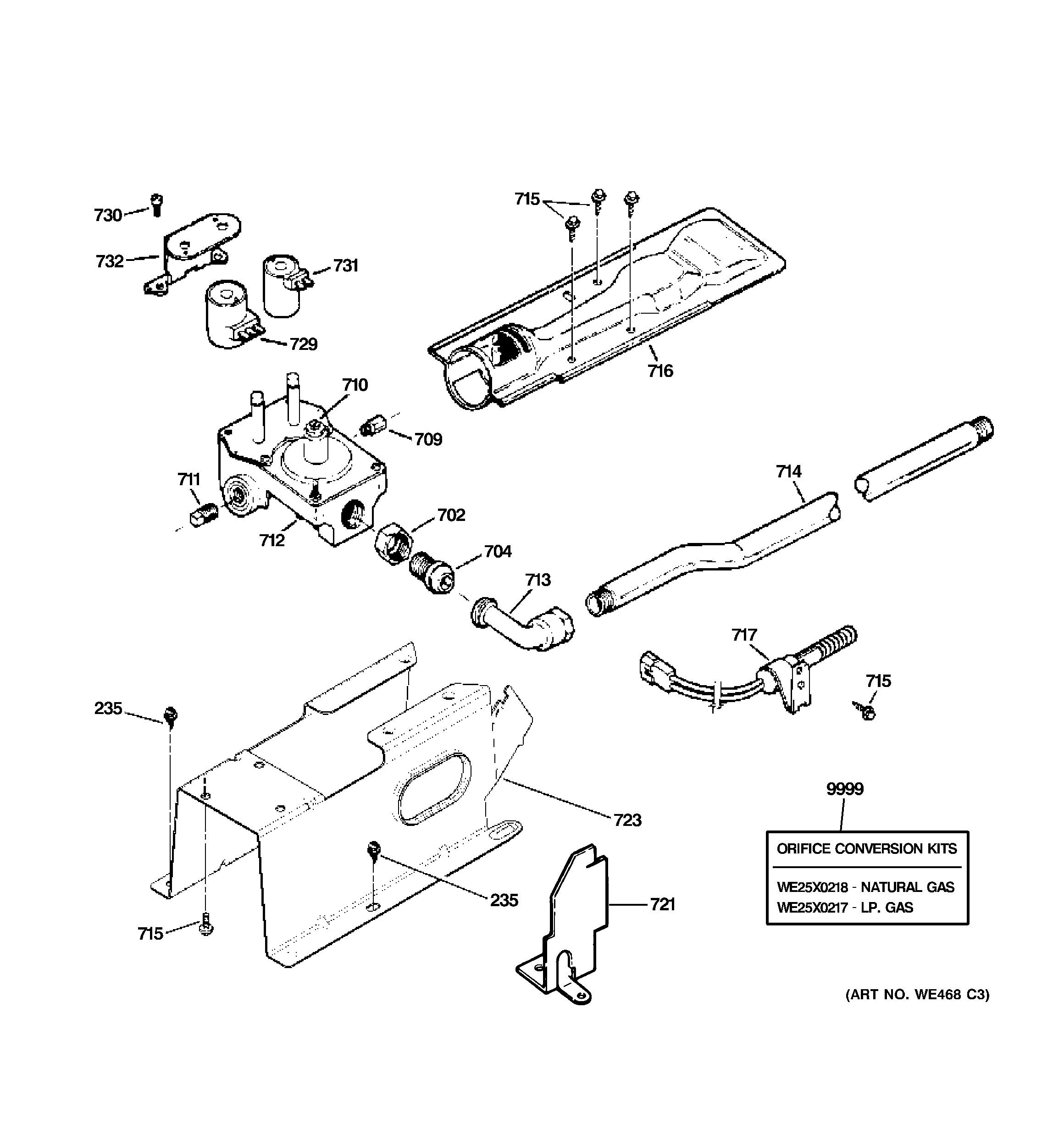

DCCB330GG6WC GAS VALVE & BURNER ASSEMBLY

DCCB330GG6WC GAS VALVE & BURNER ASSEMBLY

Written by

in

DCCB330GG6WC GAS VALVE & BURNER ASSEMBLY

Products

PositionProduct
235WE1M280 GE Screw
702GEN WE02X0319
704GEN WE02X0396
709GEN WE01X1148?
710SCR 8-18 AB PHR 1/2 S
711GEN 1/8-27 NPT
712WE14X215 GE Gas Valve
714GEN WE1M512
715WD2M101 GE Dishwasher Screw
716WE14M104 GE Burner Assembly
717WE04X25996 GE Washer Igniter
721GEN WE13X0118
723GEN WE13X0195
729WE4X692 GE Gas Valve Solenoid
730WR01X10317 GE Refrigerator Screw 8-32 CA Hex Washer 1/2
731WE4X693 GE Main Coil
732GEN WE13X0169
9999WE25X217 GE LP Natural Gas Conversion Kit
9999WE25X218 GE Conversion Kit
