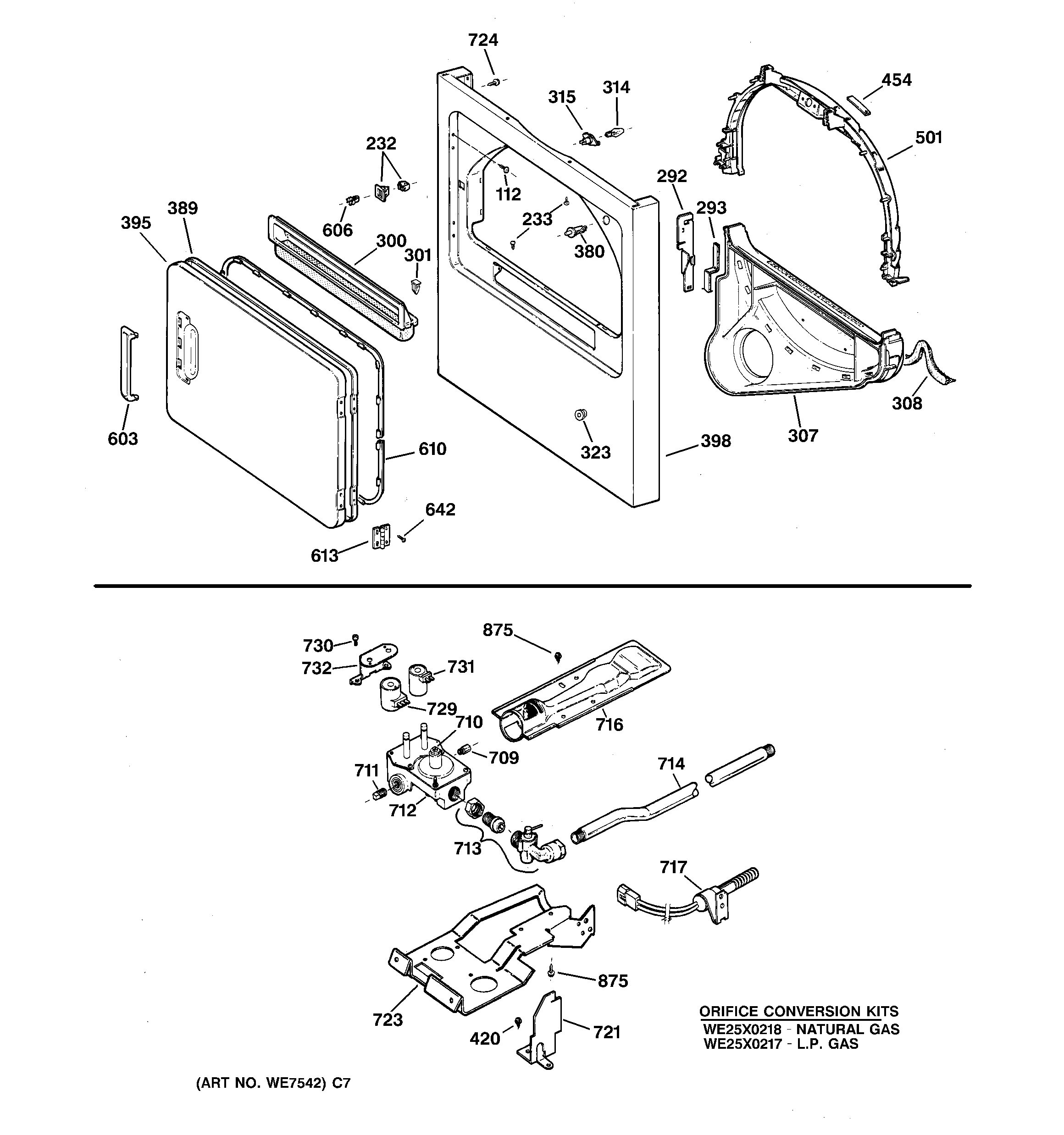

DCCB330GV0AC CABINET FRONT, GAS VALVE & BURNER ASM.

Products

Position	Product
112	GEN WR02X8697
232	WE1M1011 GE Washer Dryer Door Latch
233	GEN WZ04X0236
292	GEN WE13X0199
293	GEN WE09X0110
300	LINT SCREEN
301	GEN WE01X1222
307	GEN WE14X0226
308	GEN WE09X0108
323	GEN WE01X1187
380	GEN WE04X0197
389	GEN WE10X0330
395	GEN WE10X0331
398	GEN WE20X0796
420	GEN WH02X0893
454	WE3X87 GE Rear Drum Slide Bearing
501	WE3X77 GE Dryer Drum Support Bearing
603	WE01X20580 GE Washer Dryer Door Handle
606	WE1X1192 GE Dryer Door Strike
610	GEN WE09X1090
613	WE1M1033 GE Hinge
642	GEN WE02X0378
709	WE1X1148 GE Main Orifice
710	WE1X1076 GE Leak Limiter
711	GEN 1/8-27 NPT
712	WE14X215 GE Gas Valve
713	GEN WE14X0239
714	PIPE LUG ASM
716	WE14M104 GE Burner Assembly
717	WE04X25996 GE Washer Igniter
721	GEN WE13X0118
723	GEN WE13X0195
724	SCREW 10-16 X 1/2" HEX
729	WE4X692 GE Gas Valve Solenoid
730	WR01X10317 GE Refrigerator Screw 8-32 CA Hex Washer 1/2
731	WE4X693 GE Main Coil
732	GEN WE13X0169
875	WH2X930 GE Screw
