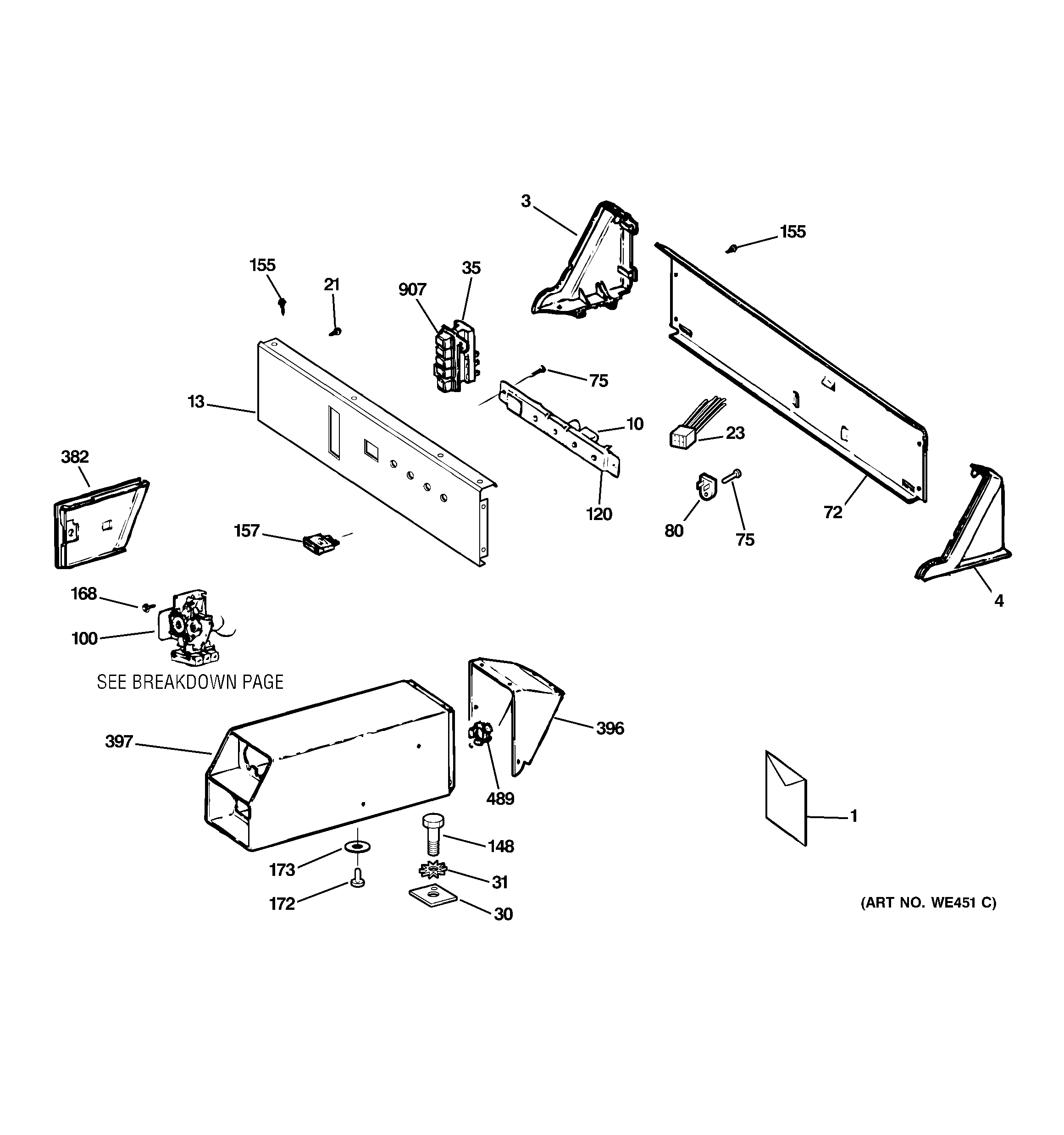

DCCD330ED1WC CONTROL PANEL & COIN BOX ASSEMBLY

DCCD330ED1WC CONTROL PANEL & COIN BOX ASSEMBLY

Written by

in

DCCD330ED1WC CONTROL PANEL & COIN BOX ASSEMBLY

Products

PositionProduct
1GEN 31-16091
1GEN 49-90162
1GEN 31-16073
3GEN WE19M938
4GEN WE19M939
10GEN WE4M313
13GEN WE19M1372
21WZ4X241D GE Screw Package
23GEN WE5M20
30PLATE SECUR COIN BOX
31WD2X322 GE Dishwasher Screw 8-18 x 7/8
35WE4M210 GE Push Button Switch
72GEN WE20X811
75WE2M173 GE Screw
80RESISTOR (3500OHM) BEIGE
100GEN WH65M185
120GEN WH01X10072
148GEN WE2M183
155GEN WH02X1233
157GEN WE1X950
168GEN WZ02X0468
172GEN WH02X0735
173WASHER LOCK
382GEN WH42X2507
396GEN WH42X2506
397GEN WE20X821
489GEN WH01X2572
907GEN WD09X0206
