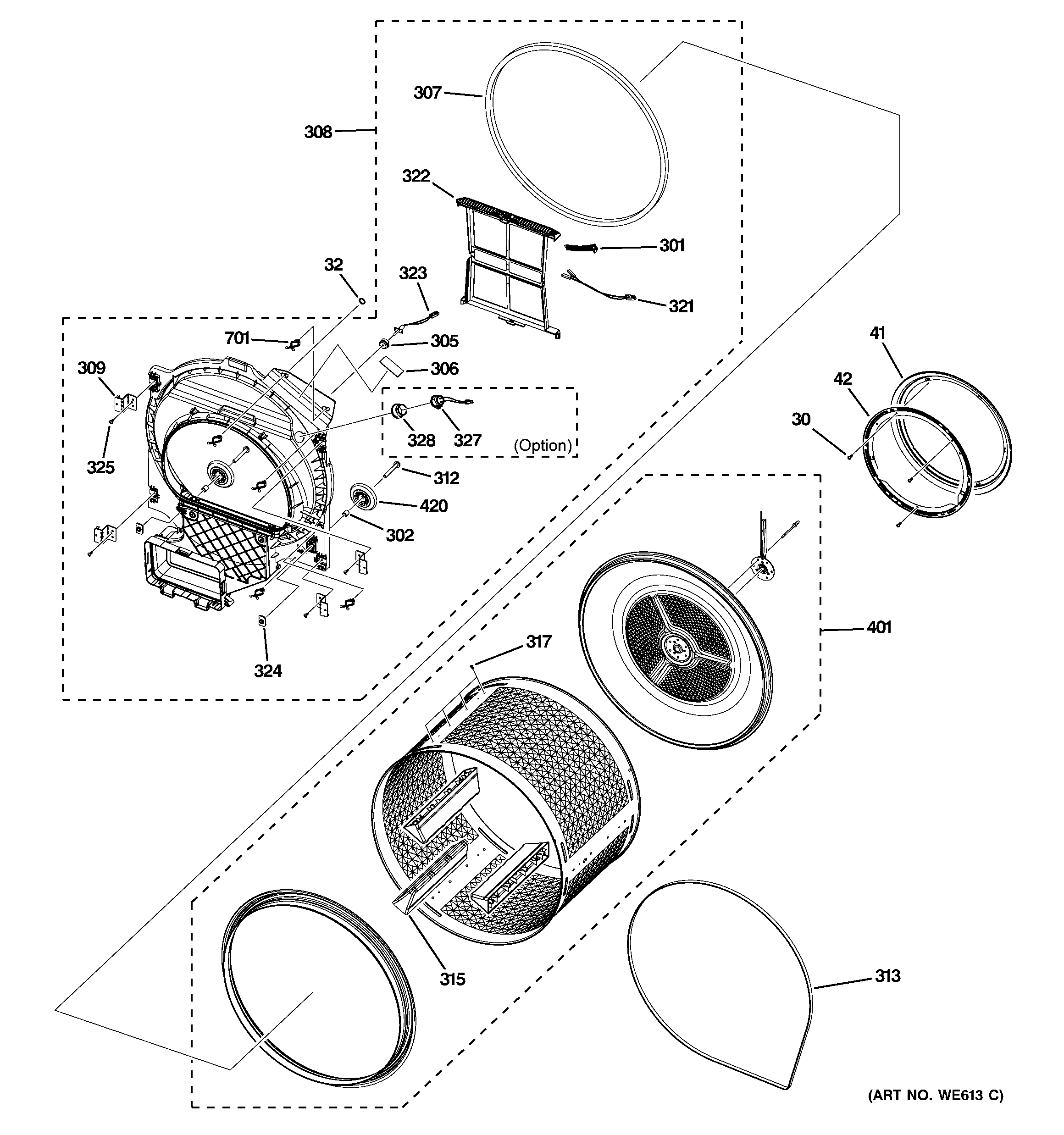

DCCH485EK0MS DRUM

DCCH485EK0MS DRUM

Written by

in

DCCH485EK0MS DRUM

Products

Position	Product
30	WH02X10287 GE Screw Back Cover M4 x 8
32	GEN WE02X10098
41	WE09X10018 GE Felt Gasket Assembly
42	WE13X10035 GE Felt Gasket Bracket
301	GEN WE01X10300
302	GEN WE01X10309
305	GEN WE01X10334
306	GEN WE01X10335
307	GEN WE09X10024
308	GEN WE21X10023
308	GEN WE21X10020
309	GEN WE13X10044
312	GEN WE01X10348
313	GEN WE12X10017
315	WE01X10266 GE Drum Baffle
317	WE02X10079 GE Screw M4 x L16
321	WE15X10003 GE Harness
322	GEN WE18X10020
323	WE04X10153 GE Thermistor Assembly
324	GEN WE02X10100
325	WH02X10289 GE Scraper (M4 L14)
327	GEN WE01X10298
328	GEN WE01X10302
401	GEN WE21X10021
420	GEN WE01X10340
701	GEN WH01X10503
