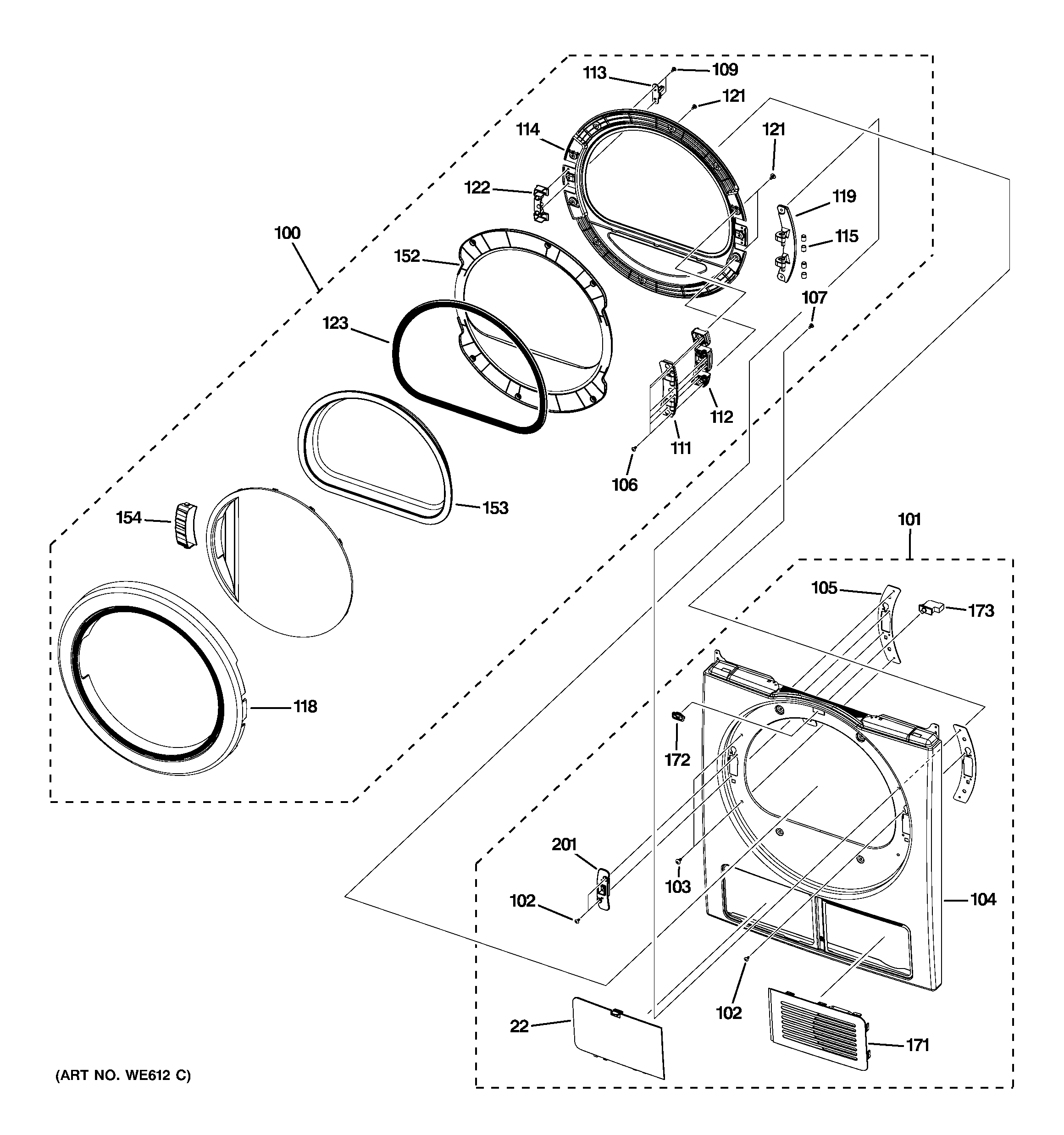

DCCH485EK0MS FRONT PANEL & DOORadmin2025-04-26T08:35:22+00:00DCCH485EK0MS FRONT PANEL & DOOR ProductsPositionProduct22GEN WE01X1031322GEN WE01X10344100GEN WE10X10028101GEN WE20X10140101GEN WE20X10138102WH02X10294 GE Screw M4 L12103WE02X10089 GE Machine Screw (M5 X L12)104GEN WE20X10135104GEN WE20X10143105WE13X10039 GE Hinge Bracket106SCREW TAPPING107WE02X10078 GE Hinge Header Screw (M5 x L12)109WH02X10081 GE Tapping Screw111GEN WE01X10305112GEN WE01X10301113WE01X10260 GE Door Strike114GEN WE01X10304115WH01X10480 GE Hinge Guide118GEN WE01X10350119WE01X10261 GE Door Hinge121WH02X10325 GE Screw, Tapping (M4x14)122GEN WE14X10100123GEN WE09X10019152GEN WE01X10312153GEN WE01X10326154GEN WE01X10327171GEN WE01X10314171GEN WE01X10345172GEN WE01X10323173GEN WE04X10170201GEN WE01X10299
