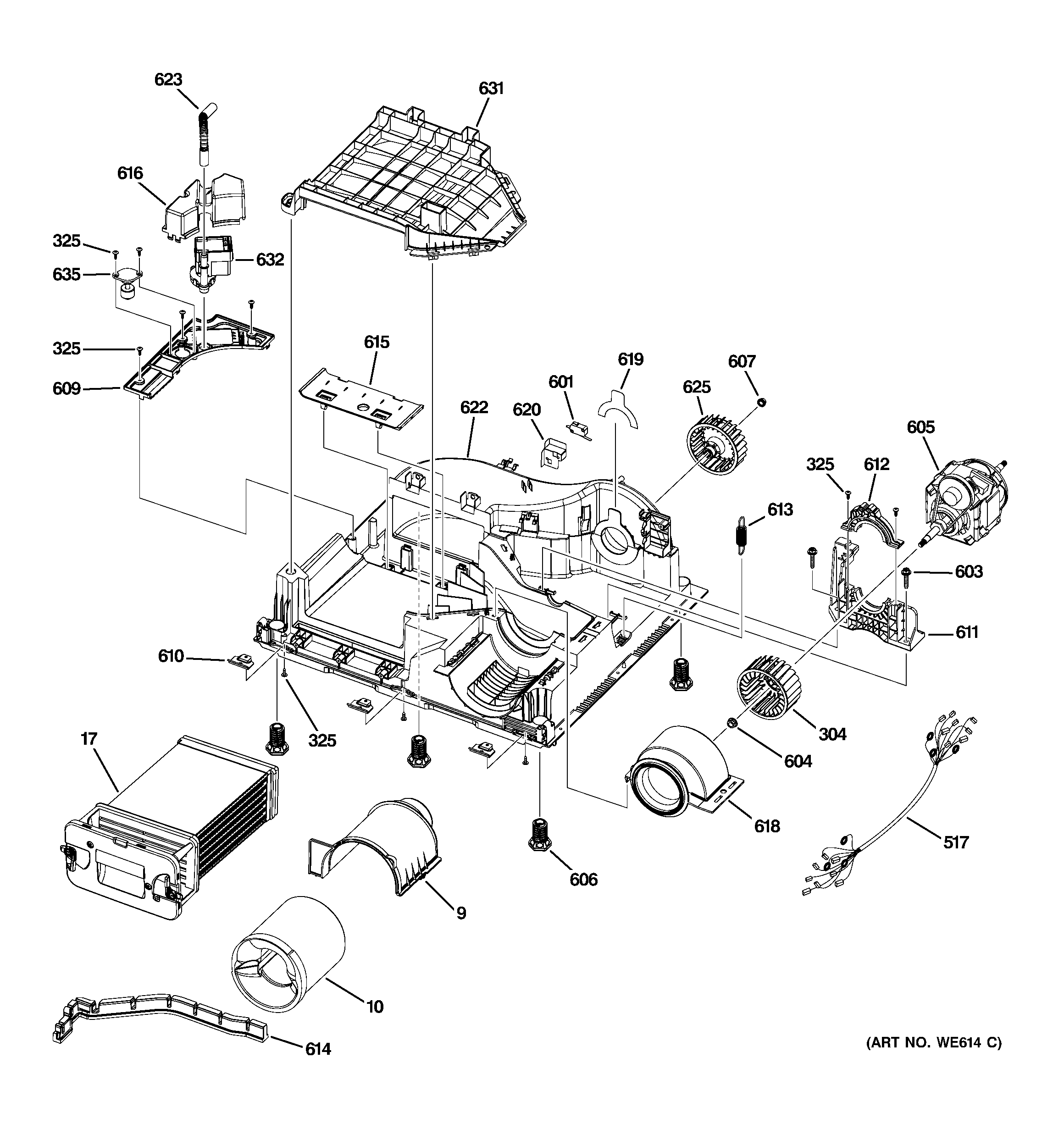

DCCH485EK0MS MOTOR & BLOWER ASSEMBLY

Products

Position	Product
9	GEN WE11X10023
10	GEN WE01X10320
17	GEN WE11X10022
304	GEN WE16X10005
325	WH02X10289 GE Scraper (M4 L14)
517	GEN WE15X10010
601	WE04X28083 GE Belt Switch
603	WH02X10299 GE Screw M6.5 L25
604	WE02X10084 GE Blower Wheel Nut
605	GEN WE17X10014
606	WE01X10255 GE Leveling Leg
607	GEN WE02X10097
609	GEN WE01X10303
610	GEN WE01X10306
611	GEN WE13X10046
612	GEN WE13X10047
613	GEN WE02X10101
614	GEN WE09X10023
615	GEN WE01X10315
616	GEN WE01X10316
618	GEN WE01X10318
619	GEN WE01X10346
620	GEN WE01X10321
622	GEN WE20X10136
623	GEN WE01X10338
625	GEN WE16X10006
631	GEN WE01X10317
632	GEN WE01X10297
635	GEN WE04X10169
