DCD330GB5KC CONTROLS & TOP PANEL

DCD330GB5KC CONTROLS & TOP PANEL

Written by

in

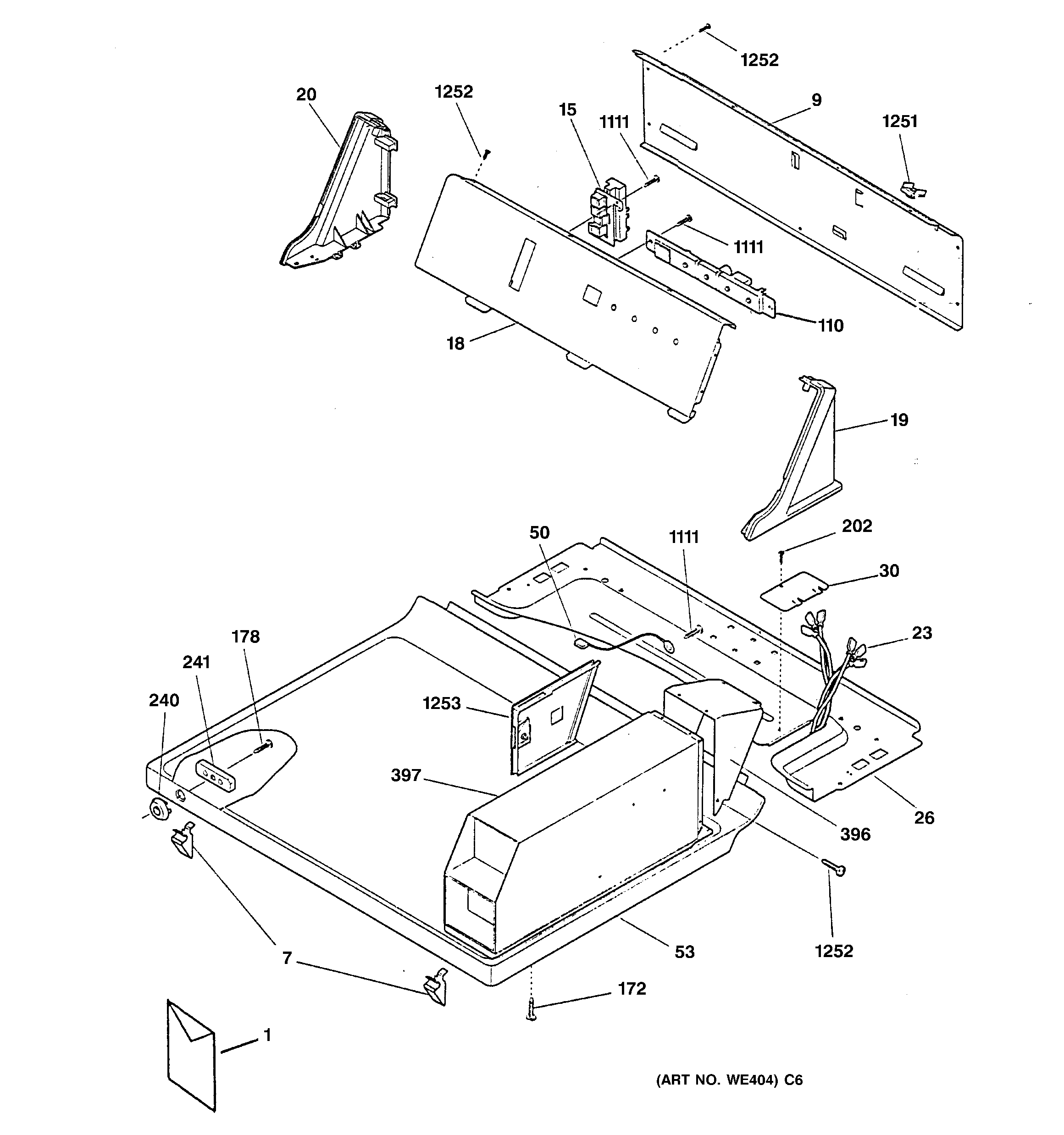

DCD330GB5KC CONTROLS & TOP PANEL

Products

Position	Product
1	GEN 49-90105
1	GEN 31-15496
7	CLIP-TOP FRONT/PANEL
9	GEN WE20X10010
15	GEN WE04X10047
18	GEN WE19X10034
19	GEN WE19X10065
20	GEN WE19X10064
23	GEN WE08X10041
26	GEN WE19X10035
30	GEN WE01X10034
50	GEN WE08X10006
53	PANEL-TOP CC
110	GEN WH12X10081
172	GEN WE02X10025
178	GEN WH02X1128
202	SCREW PANEL TO EVAP
240	GEN WE01X10052
241	GEN WE01X10053
396	ADAPTER-COIN BOX CC
397	ASMY-COIN BOX CC
1111	GEN WE02X10050
1251	GEN WE02X10027
1252	GEN WE02X10028
1253	ASMY-DOOR LATCH CC
