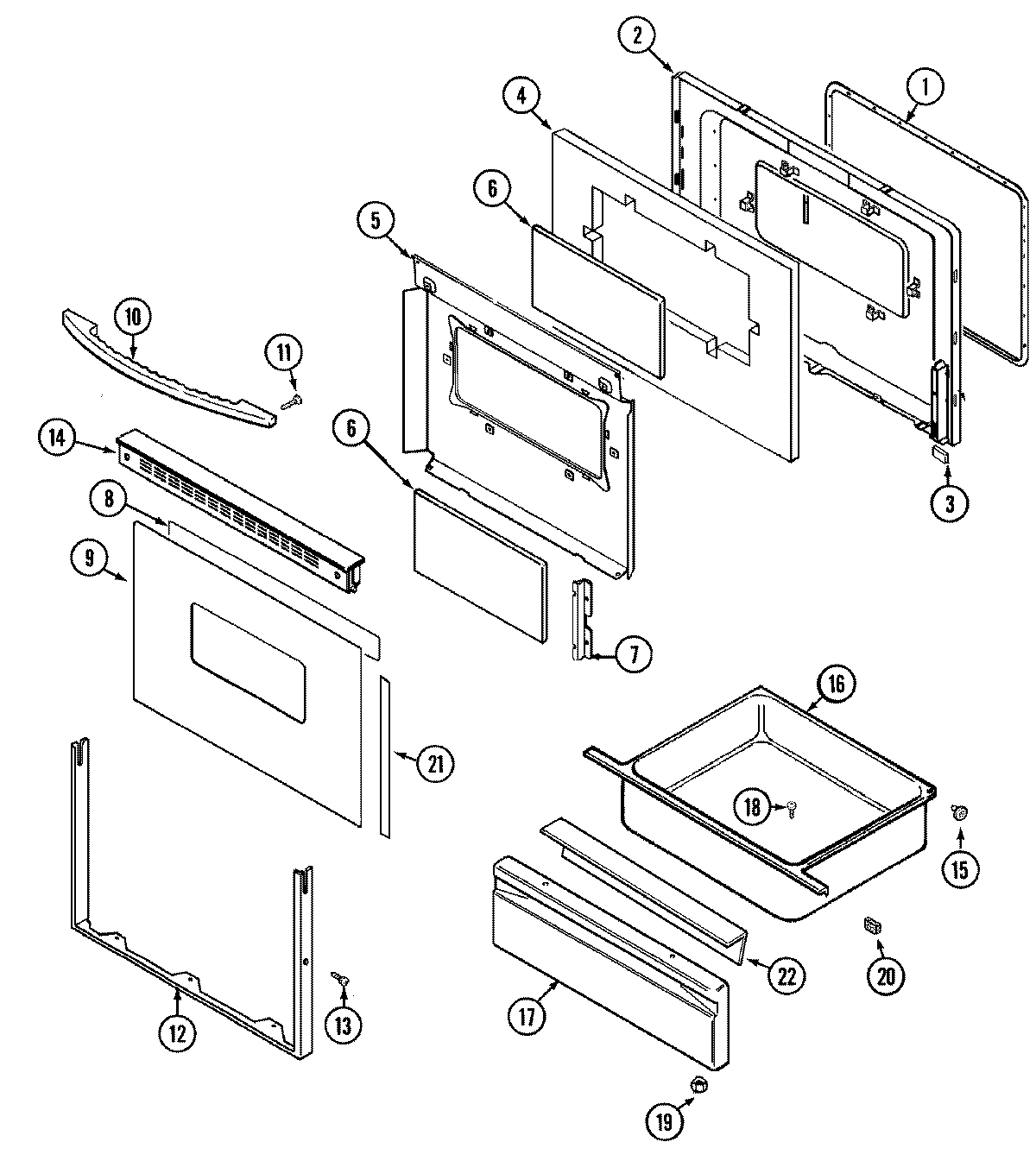

DCF3305BT 03 – DOOR/DRAWER

Products

Position	Product
1	GASKT-DOOR OVEN
2	NUT, SNAP (ROUND-BLK)
2	LINING, OVEN DOOR
2	MAY 74003643
2	NUT, SNAP (ROUND-WHT)
4	MAY 74001842
5	MAY 74001843
6	GLASS, INNER
7	MAY 74001844
8	TAPE, FOIL (3`` WIDE)
9	MAY 74006287
10	MAY 74006286
11	MAY 74006394
12	MAY 7706P309-60
13	WP98008545 Whirlpool Screw
14	MAY 74003889
14	SCREW
15	SHAFT, STORAGE DRAWER ROLLER
15	WP74004078 Whirlpool Door Roller
15	WP488130 Whirlpool Air Conditioner Nut
16	MAY 71003042
17	PANEL, DRAWER (WHT)
19	WPW10131078 Whirlpool Nut Assembly
20	WP74005546 Whirlpool RU Spacer
21	MAY 74003660
22	LINING, DRAWER PANEL
