DCF3315AC 03 – DOOR/DRAWER

DCF3315AC 03 – DOOR/DRAWER

Written by

in

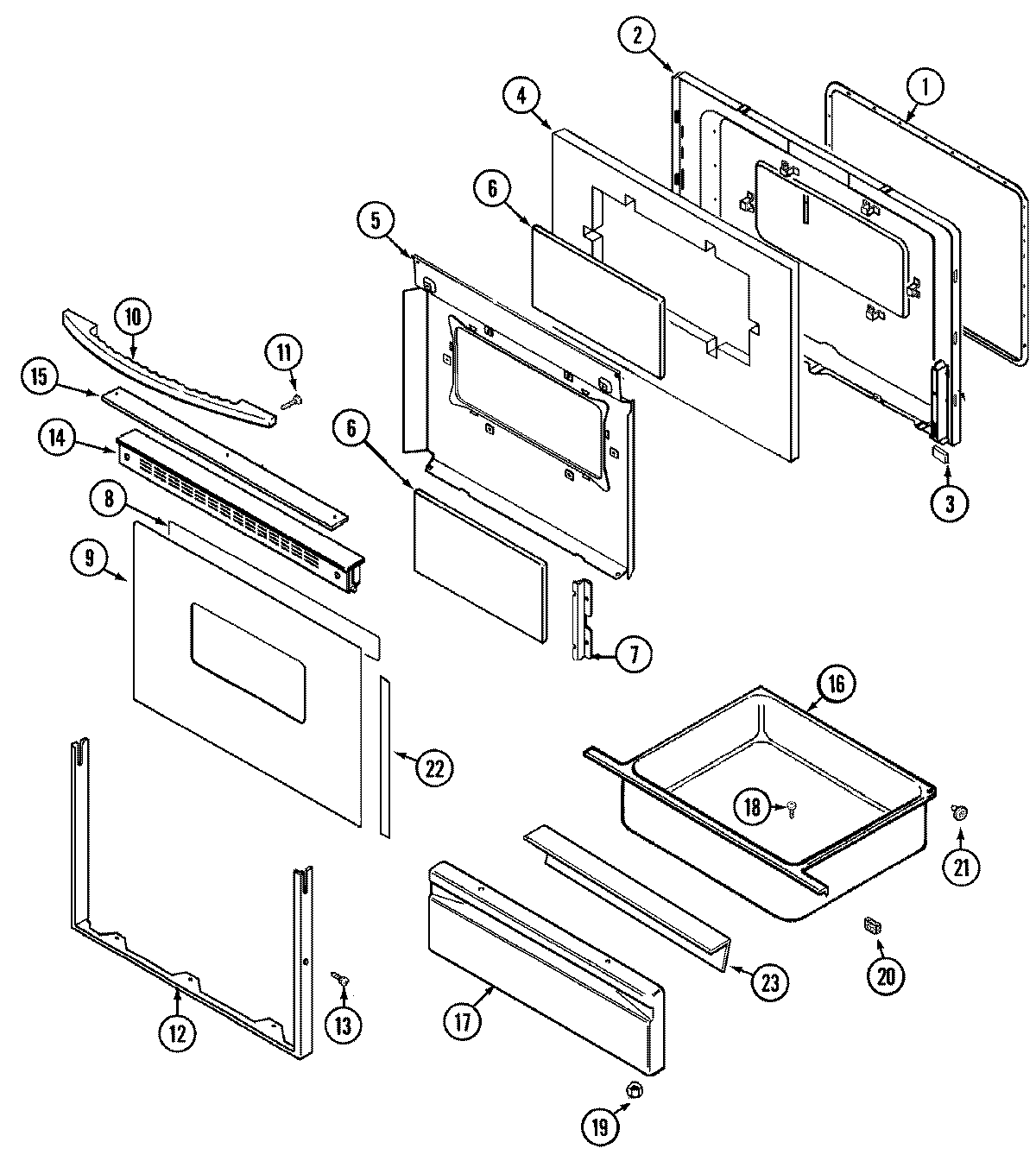

DCF3315AC 03 – DOOR/DRAWER

Products

PositionProduct
1GASKT-DOOR OVEN
2LINING, OVEN DOOR
2NUT, SNAP (ROUND-WHT)
2NUT, SNAP (ROUND-BLK)
2MAY 74003643
4MAY 74001842
5MAY 74001843
6GLASS, INNER
7MAY 74001844
8TAPE, FOIL (3“ WIDE)
9MAY 74006873
10MAY 74006666
11WP74006515 Whirlpool Washer Screw
12MAY 74004975
14SCREW
14MAY 74006378
15MAY 74004978
15WP74009541 Whirlpool Screw Assembly
16MAY 71003042
17PANEL, DRAWER (BSQ)
19WPW10131078 Whirlpool Nut Assembly
20WP74005546 Whirlpool RU Spacer
21SHAFT, STORAGE DRAWER ROLLER
21WP488130 Whirlpool Air Conditioner Nut
21WP74004078 Whirlpool Door Roller
22MAY 74003660
23LINING, DRAWER PANEL
